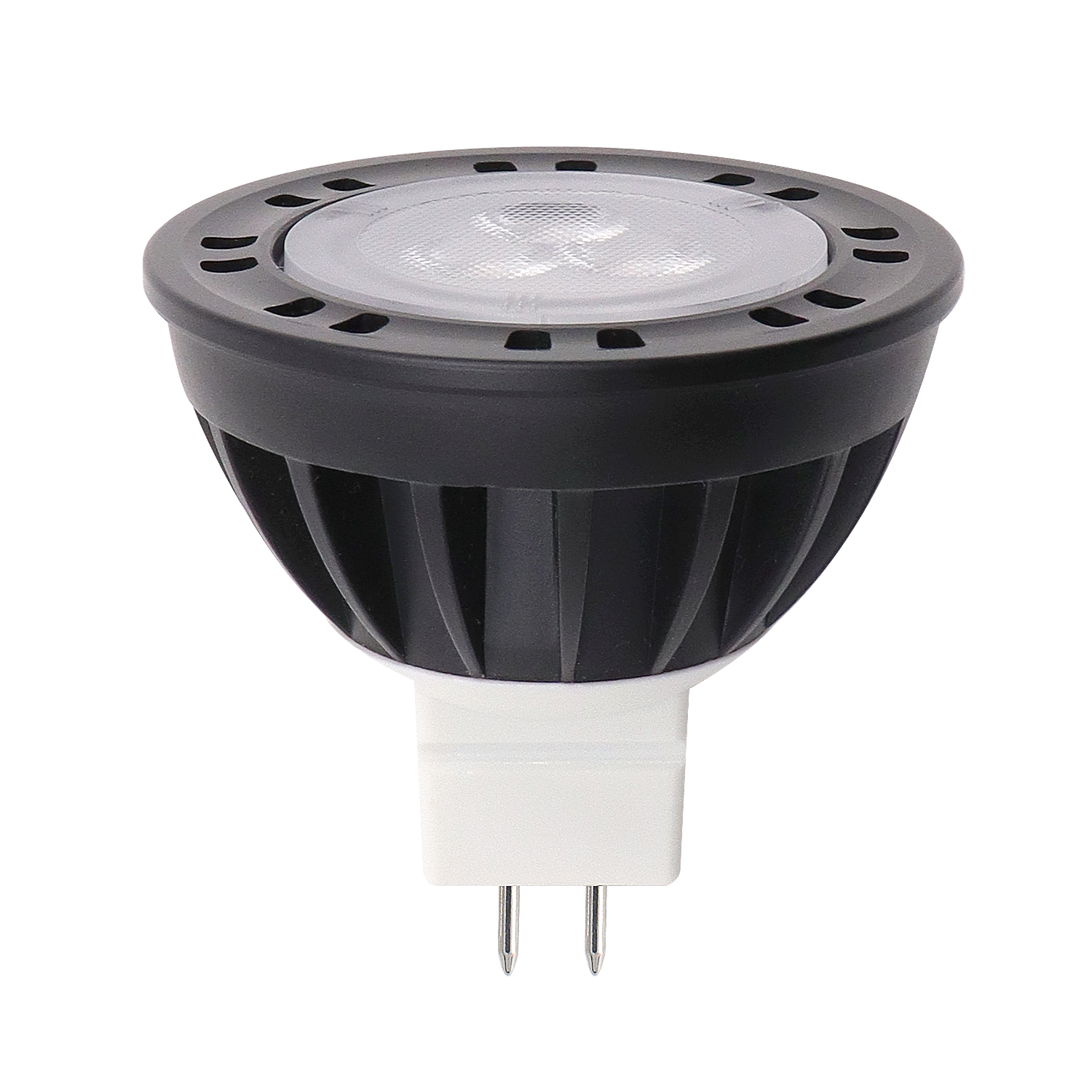

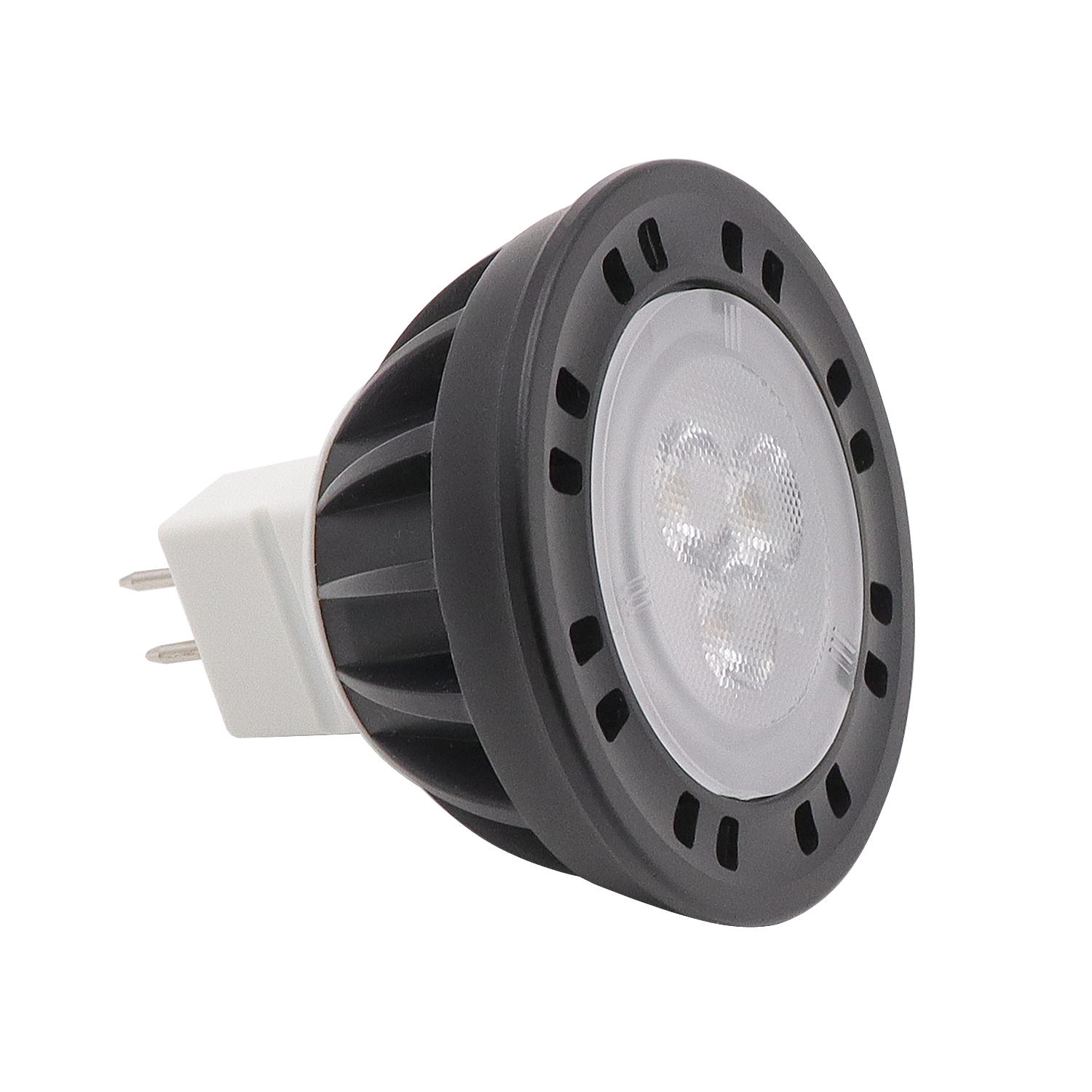

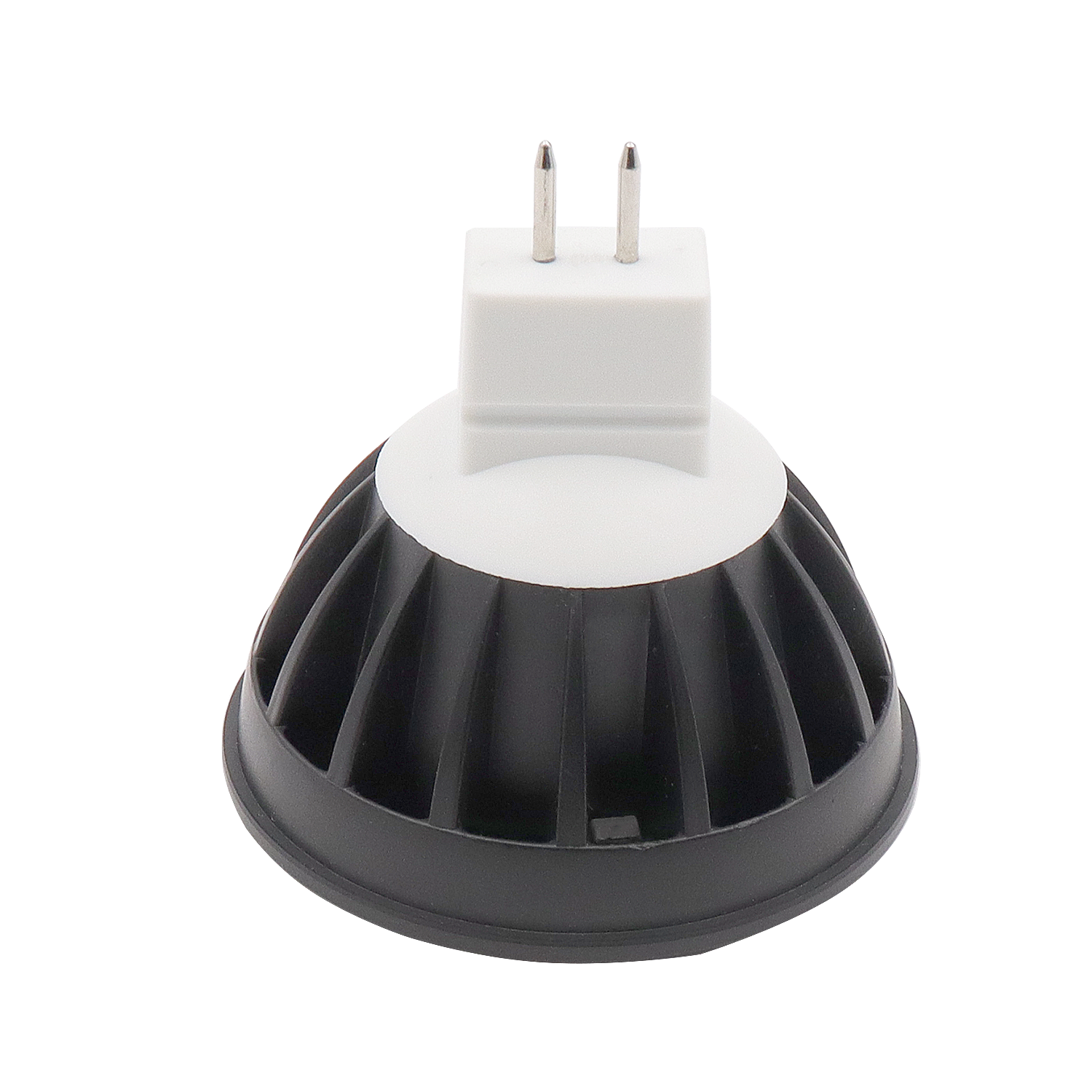

LT1016A Standard MR16 Low Voltage LED lamp

LT1016A is a low-voltage MR16 LED lamp built for landscape fixtures such as uplights and floodlights. Available in 4W (360 lm), 5W (450 lm), 6W (530 lm), or 7W (600 lm), it offers multiple beam angle options (15°, 30°, 45°, 60°, 100°) to control light distribution. With an IP65 rating and fully potted electronics, its self-cooling design helps prevent water and dust ingress in outdoor environments, making it easy to replace in GU5.3 base fixtures.

Features

Rated IP65 for woking in the harsh outdoor environment
Heat overload protection technology provide added security for the lamps
Quality LED chip offer a soft and even lighting

Material

Get a Quote

Specification Accessories Photos Video Download

P/N	LT1016A 4W	LT1016A 5W	LT1016A 6W	LT1016A 7W
Wattage	4W	5W	6W	7W
Lumen	360LM	450LM	530LM	600LM
Halogen Replacement	20W	35W	50W	65W
LED Color Options	Red Green Blue Amber
In put Voltage	9-17V AC/DC
Life Span	50,000 hours
Beam Angle Opions	15° 30° 45° 60° 100°
Color Temperature Options	2700K 3000K 4000K 5000K 6000K
CRI	85
Water Proof	IP65
Package Size	2″×2″×2.2″
Gross Weight	0.052 KG
Features	Self-cooling, fully potted electronics
Warranty	5 years

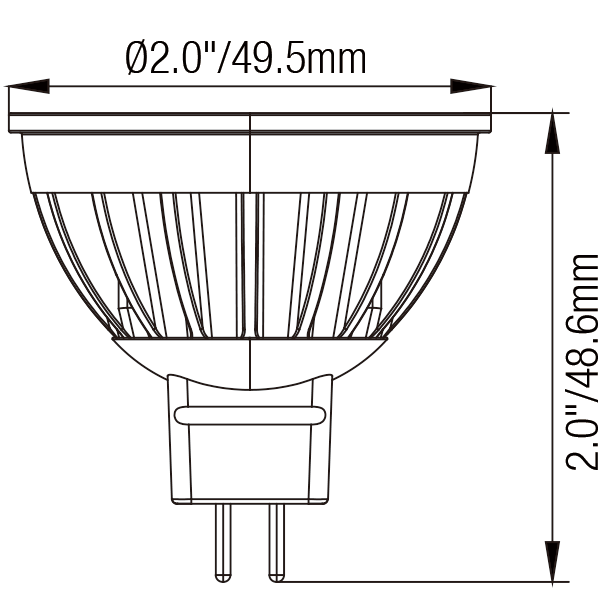

Dimensions

Photometrics

LT403 Hex Louvre

LT405 Wire Connectors

LT407D Digtal Timer

LT1016A specification sheet
