LT1016CG Adjustable Beam Angle MR16 LED Lamp

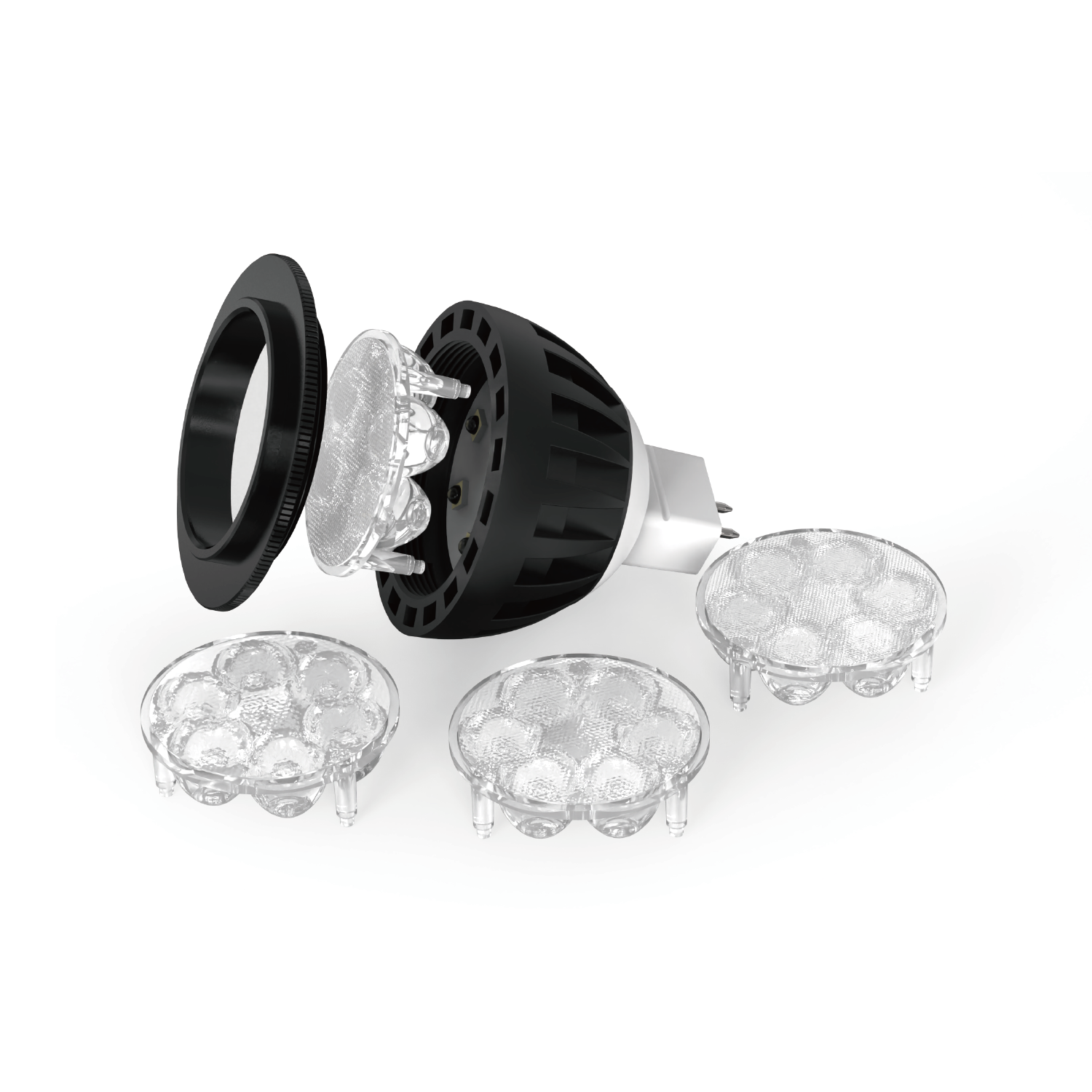

LT1016CG is a low-voltage MR16 LED lamp for landscape fixtures. It features a field-replaceable lens design with 15°, 30°, 45°, and 60° beam angle lenses, so you can adjust light distribution on-site. It comes in 5W (530 lm) or 8W (700 lm), with an IP65 rating, fully potted electronics, and heat overload protection. The self-cooling, corrosion-resistant design helps it perform reliably outdoors, and the lamp is easy to replace in GU5.3 base fixtures.

Features

5W/8W available

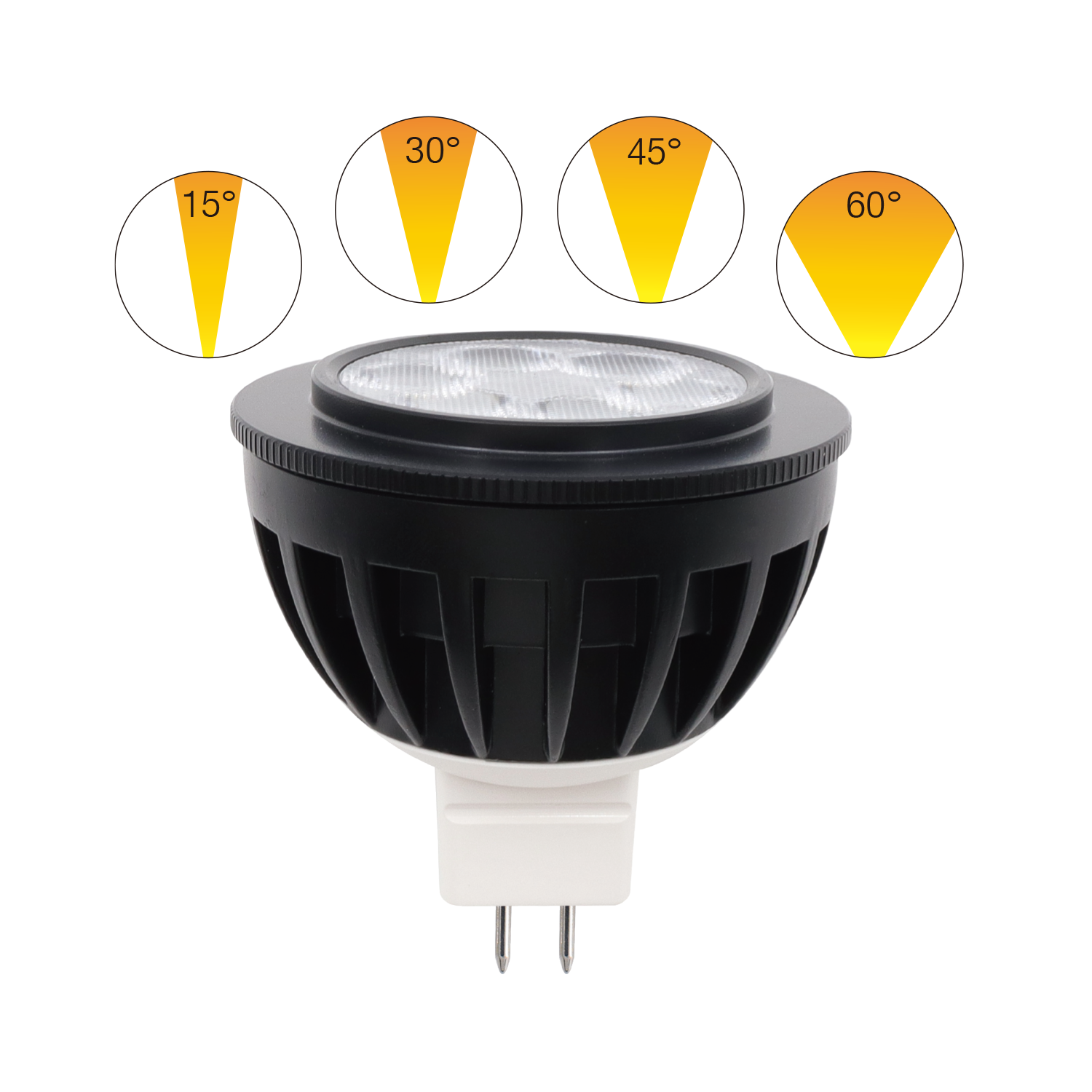

Beam angle lens in 15°，30°，45°，60°
Long lifespan

Material

Get a Quote

Specification Accessories Photos Video Download

P/N	LT1016CG	LT1016CG
Wattage	5W	8W
Lumen	530LM	700LM
Halogen Replacement	35W	80W
LED Color Options	White/ Red/ Green/ Blue/ Amber
In put Voltage	9-17V AC/DC
Life Span	5,0000 hours
Beam Angle Lens	15° 30° 45° 60° each 1 pcs
Color Temperature Options	2700K 3000K 4000K 5000K 6000K
CRI	85
Water Proof	IP65
Package Size	4.4″×2″×2.4″
Gross Weight	0.12 KG
Features	Self-cooling, fully potted electronics
Warranty	5 years

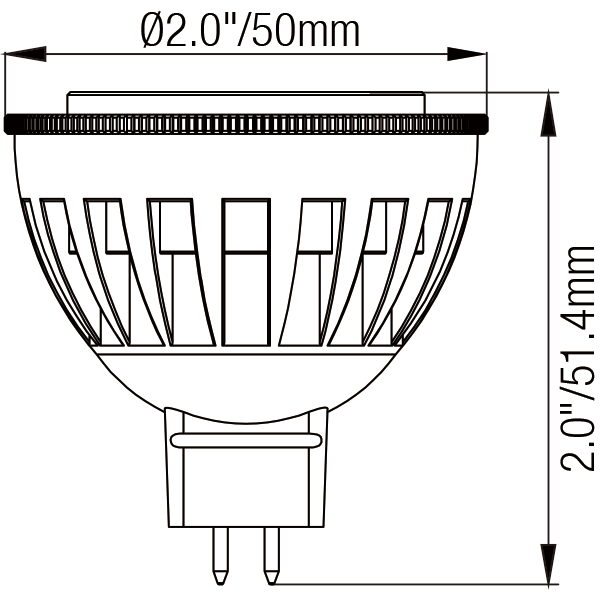

Dimensions

Photometrics

LT403 Hex Louvre

LT405 Wire Connectors

LT407D Digtal Timer

LT1016CG specification sheet
