LT1016CG-CT5 Adjustable Beam Angle CCT MR16 LED Lamp

LT1016CG-CT5 is a low-voltage MR16 LED lamp designed for landscape fixtures like uplights and floodlights. It combines a field-replaceable lens system (15°, 30°, 45°, 60°) with a CCT tunable button, allowing installers to adjust both beam angle and color temperature (2700K to 6000K) directly on-site. Available in 5W (530 lm) or 8W (640 lm), this IP65-rated bulb features fully potted electronics and heat overload protection to help maintain reliable operation in outdoor environments.

Features

5W/8W available

Include Beam angle lens in 15°，30°，45°，60°

Long lifespan

5-in-1 click button for CCT Tuning

Material

Get a Quote

Specification Accessories Photos Video Download

P/N	LT1016CG-CT5	LT1016CG-CT5
Wattage	5W	8W
Lumen	530LM	640LM
Halogen Replacement	35W	80W
LED Color Options	White/ Red/ Green/ Blue/ Amber
In put Voltage	9-17V AC/DC
Life Span	50,000 hours
Beam Angle Lens	15° 30° 45° 60° each 1 pcs
Color Temperature adjustable	2700K 3000K 4000K 5000K 6000K
CCT Tunable	Click Button
CRI	85
Water Proof	IP65
Package Size	4.4″×2″×2.4″
Gross Weight	0.12 KG
Features	Self-cooling, fully potted electronics
Warranty	5 years

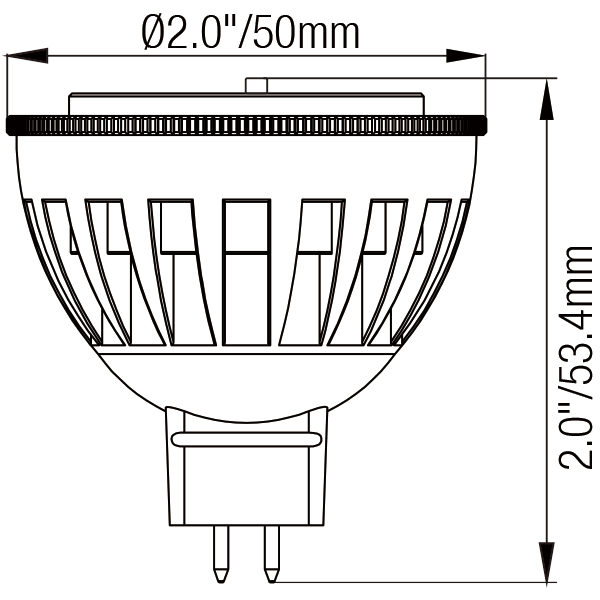

Dimensions

Photometrics

LT405 Wire Connectors

LT403 Hex Louvre

LT407D Digtal Timer

LT1016CG-CT5 specification sheet
