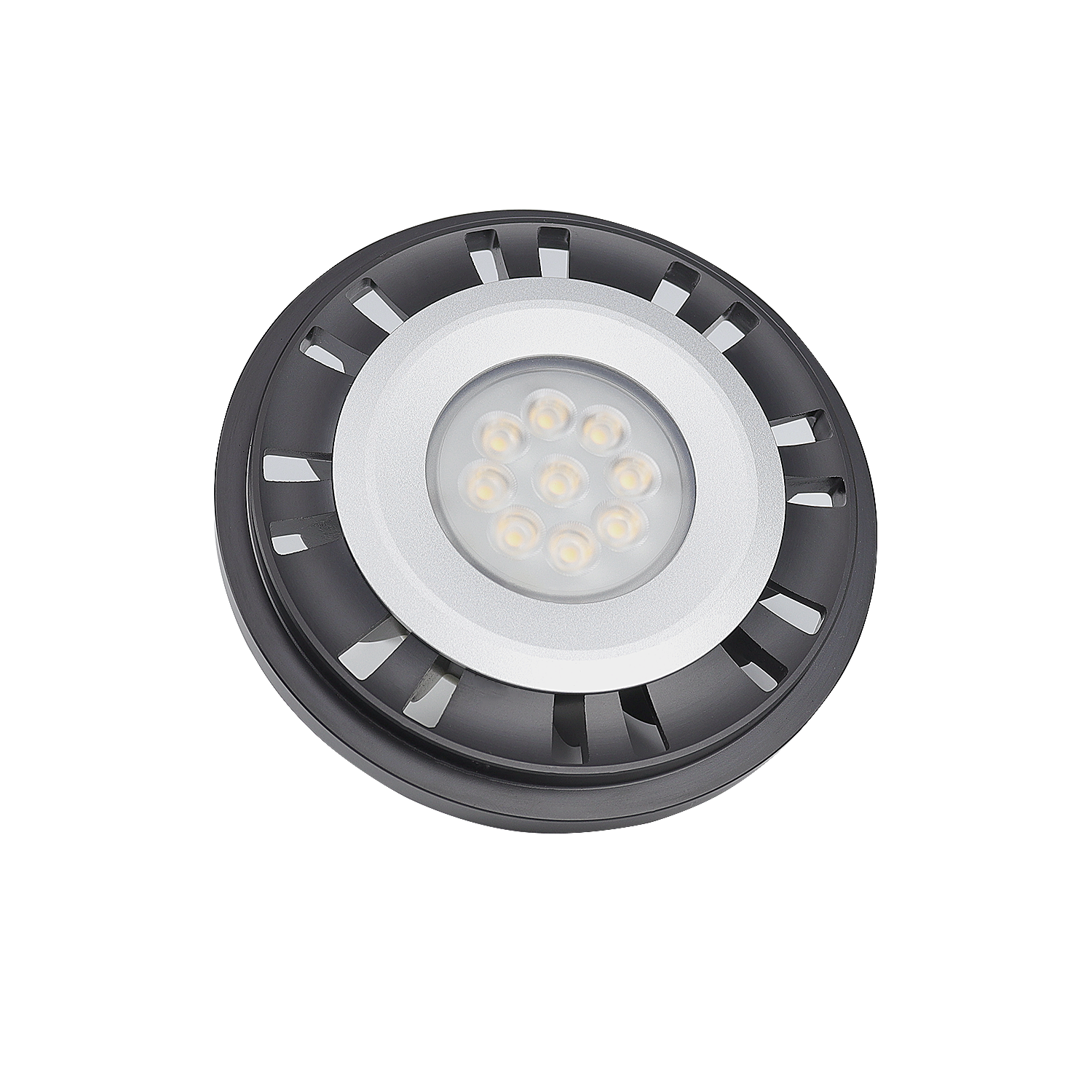

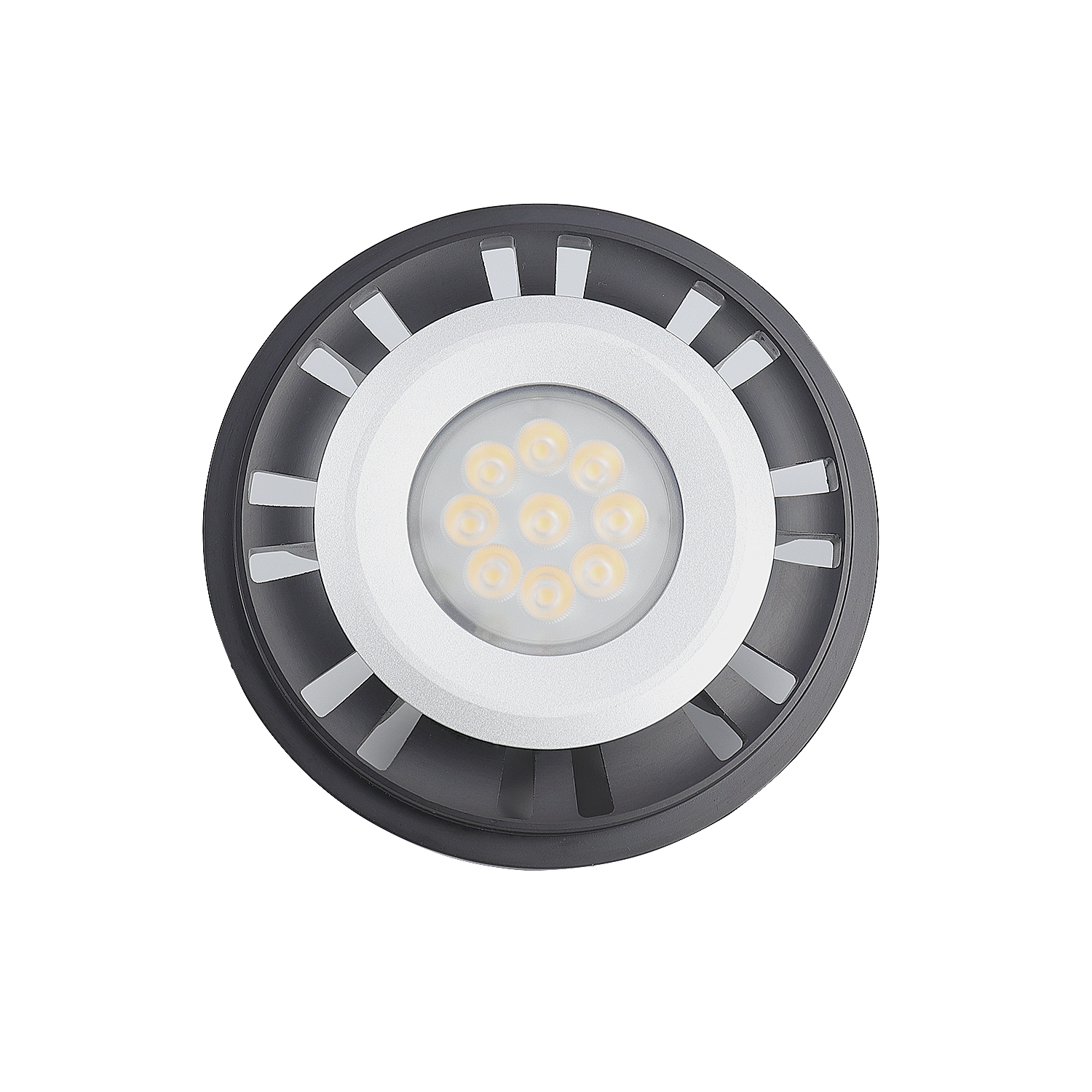

LT1036A Standard PAR36 Low voltage LED Lamp

LT1036A is a low-voltage PAR36 LED lamp designed for landscape fixtures such as well lights and floodlights. It comes in 6W (620 lm), 10W (840 lm), 13W (1118 lm), or 17W (1365 lm), with beam angles of 38° and 60° for different illumination needs. Its IP67 rating and fully potted PC board help protect against moisture in damp outdoor environments. The self-cooling design includes heat overload protection, helping it perform reliably over time, even in tightly enclosed fixtures.

Mounting / Installation

IP67 for the damp outdoor environment
Heat overload protection technology to ensure the lamp can work well in the enclosed fixture
Fully potted PC board

Material

Get a Quote

Specification Accessories Photos Video Download

P/N	LT1036A 6W	LT1036A 10W	LT1036A 13W	LT1036A 17W
Wattage	6W	10W	13W	17W
Lumen	620LM	840LM	1118LM	1365LM
Halogen Replacement	35W	50W	75W	100W
LED Color Options		Red/ Green/ Blue/ Amber
In put Voltage		9-17V AV/DC
Life Span		50,000 hours
Beam Angle Opions		38° 60°
Color Temperature Options		2700K 3000K 4000K 5000K 6000K
CRI		85
Water Proof		IP67
Features		Self-cooling, fully potted electronics
Warranty		5 years

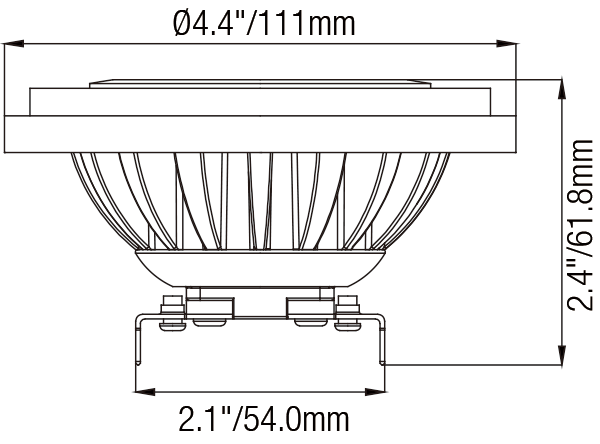

Dimensions

Photometrics

LT405 Wire Connectors

LT403 Hex Louvre

LT407D Digtal Timer

LT1036A specification sheet

Related Products

LT2304 Die Cast Landscape Lighting Premium Round PAR36 Flood Light

The LT2304 is a robust, round-bodied landscape floodlight designed to house high-output PAR36 bulbs for illuminating large trees and facades. Made with heavy-duty die-cast brass and an IP65 rating, this low-voltage floodlight offers a safe, corrosion-resistant solution for permanent outdoor use. Featuring a simple adjustable knuckle and thumb screw, it allows for quick, tool-free aiming. With professional-grade durability and high-intensity performance, the LT2304 is ideal for broad-area landscape accenting.

GET A QUOTE PRODUCT OVERVIEW

LT3075 75W Built-In Timer Low Voltage Transformer

LT3075 is a 75W low-voltage transformer designed for outdoor landscape lighting systems, providing safe and stable power for garden lights, pathway lights, spotlights, and other outdoor fixtures. Built with a durable stainless steel enclosure and protective cover, it supports long-term outdoor installation. Its built-in timer, 12V/15V output terminals, and wall-mounted structure make lighting control, wiring, and installation easier for residential landscape projects.

GET A QUOTE PRODUCT OVERVIEW

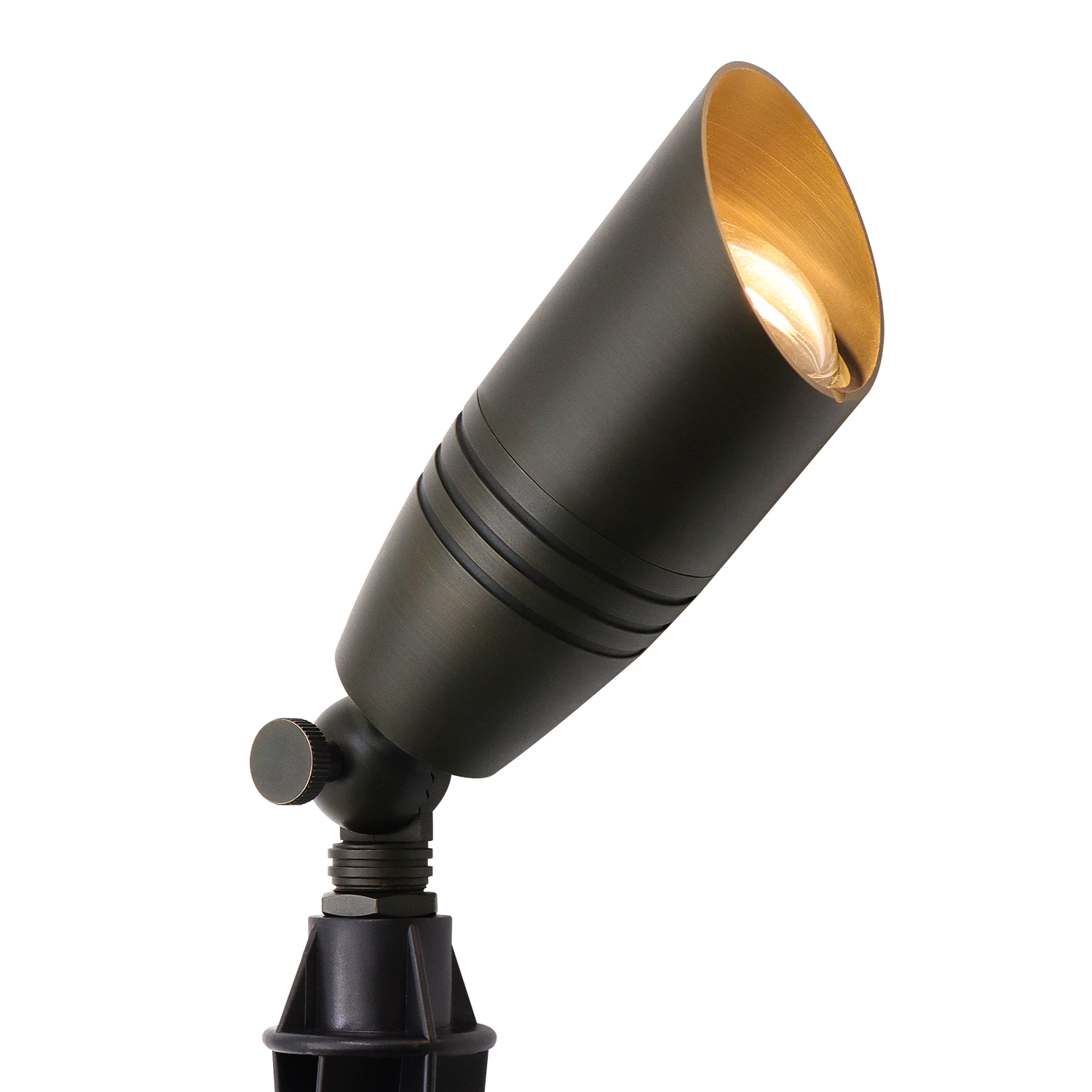

LT2105 Standard Classic Brass Landscape Spotlight
