LT2105A Die-Cast Aluminum Low Voltage Landscape Spotlight

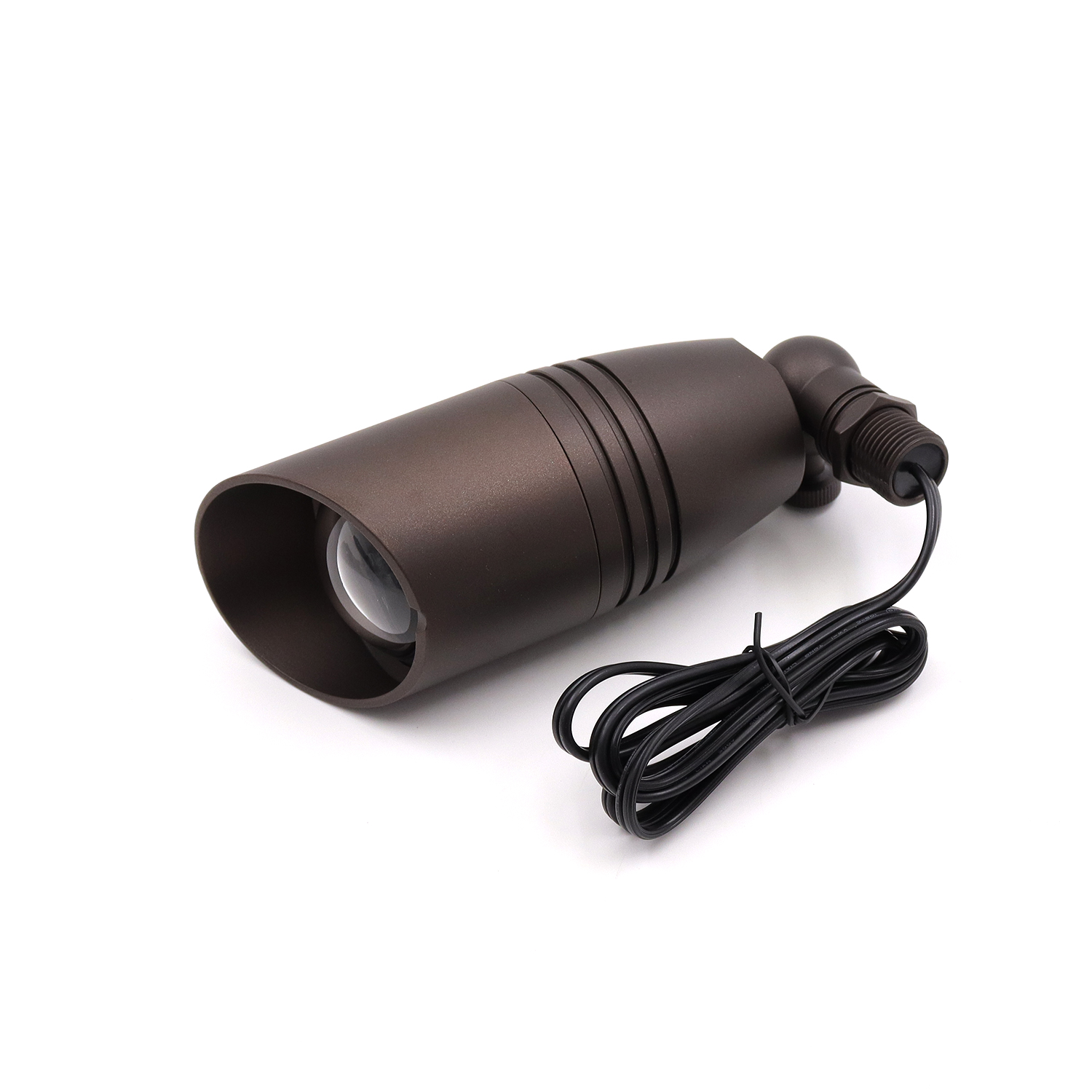

The LT2105A features heavy-duty die-cast aluminum construction with an oil rubbed bronze (ORB) powder coating for enhanced corrosion resistance. The landscape spotlight incorporates a straight-cut shroud to shield the internal lens and minimize glare. Engineered as a high-performance landscape up light, the adjustable threaded knuckle enables precise vertical aiming for architectural facades and garden elements.

Mounting / Installation

Lead Wire: 48″ (1.8 meters) Spt-1W, 18AWG

Mounting: Standard 8″ ground stake (included)

Dimension: Body 6.6″ x 2.4″

More options: canopy surface mount, gutter mount, adjustable brass riser,hex louver.

Material

Finish: Powder coating

Color: ORB/Matte Black

Housing: Die cast aluminum

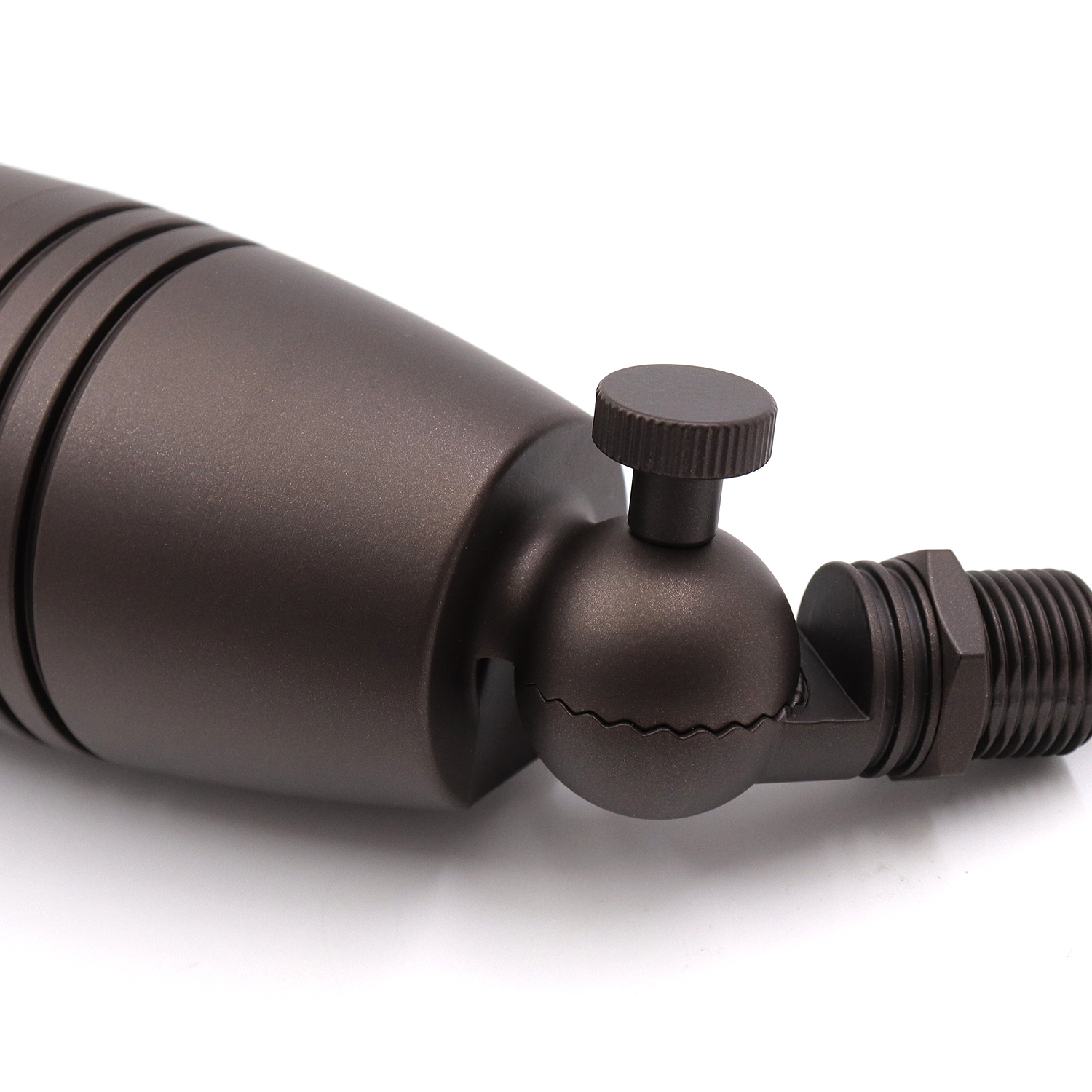

Knuckle: Die cast aluminum, Thumb Screw and knuckle for angle adjustment.

Socket: Fixed GU 5.3 bi pin socket

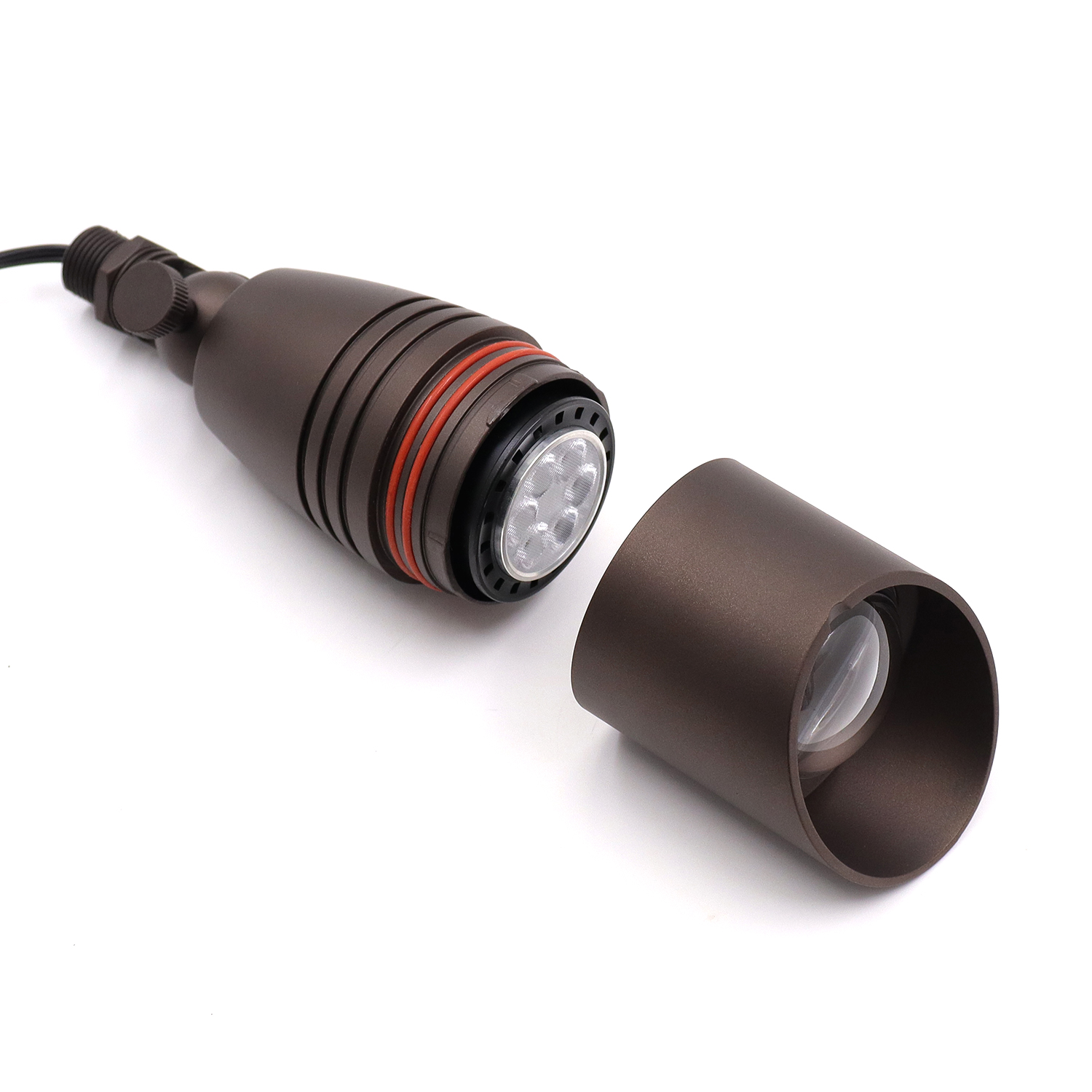

Shroud & Lens: Round convex clear glass

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2105A
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Beam Angle	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	9.4×4.7×3″
Gross Weight	0.52 KG
Warranty	Surface 5 years, Structure Lifetime

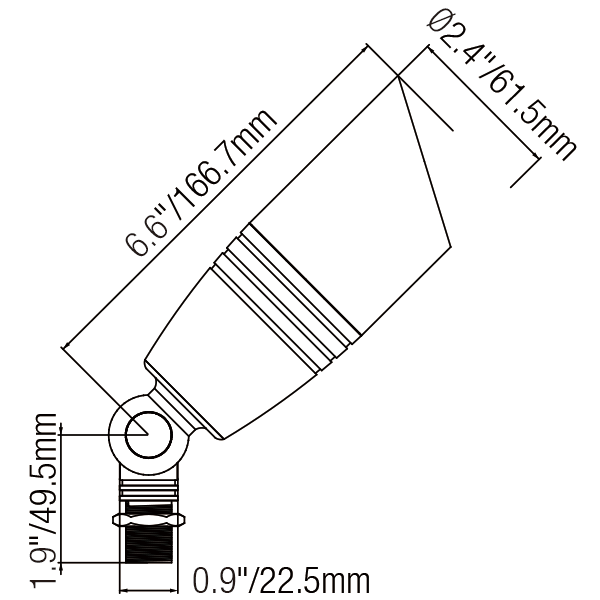

Dimensions

Photometrics

LT403 Hex Louvre

LT406-Brass Riser

LT402A Brass Surface Mount

LT402E Brass Tree Mount

LT2105A specification sheet
