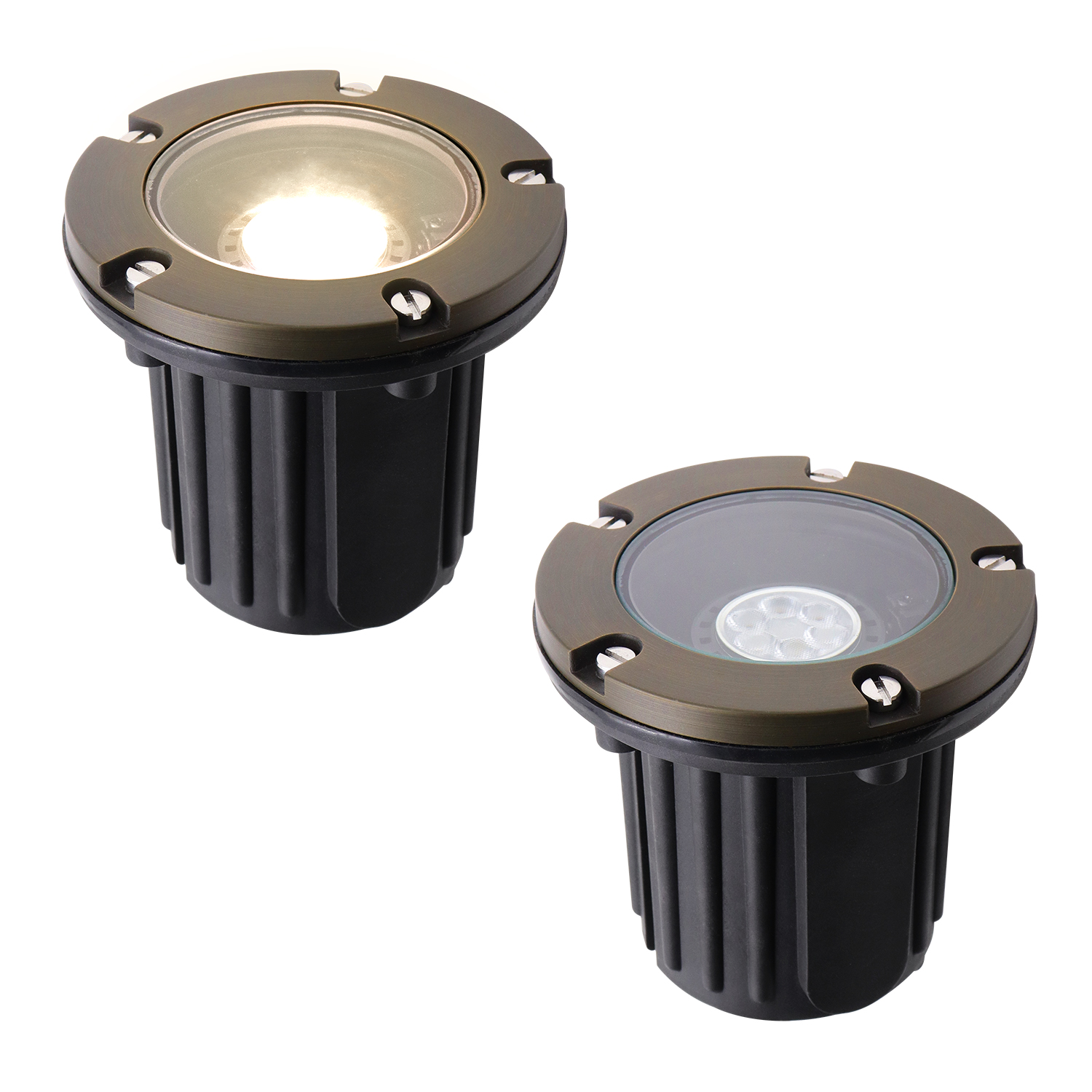

LT2202A In Ground Well Light

The LT2202A Inground Well Light uses a heavy-duty die-cast brass faceplate and a corrosion-resistant PVC sleeve to deliver reliable, long-term performance in walkways, side yards, and decks. Watertight gaskets protect the MR16 lamp from weather and irrigation, while the open-top design allows quick lamp replacement without disturbing the installed housing.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) svt, 18/2c gauge

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Non-corrosive ploymer

Lid: Die cast brass, attached with 5 staineless steel screws

Lens: Clear flat lens

Socket: Fixed GU 5.3 bi pin socket

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2202A
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Beam Angle	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	5.3″×5.3″×6.7″
Gross Weight	0.91kg
Warranty	Surface 10 years, Structure Lifetime

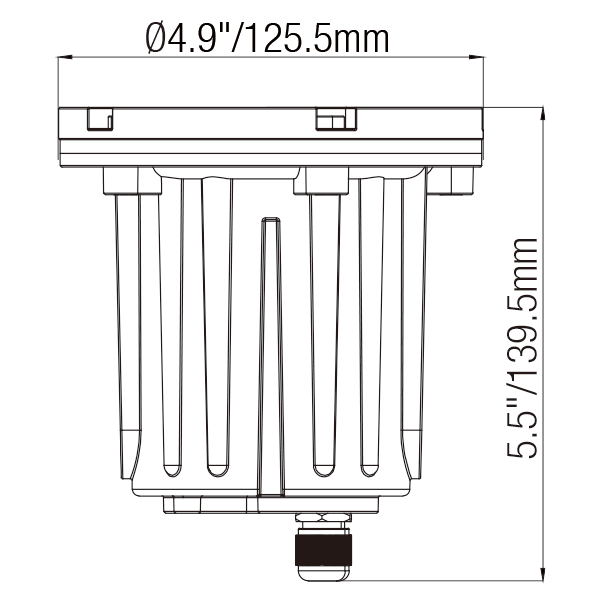

Dimensions

Photometrics

LT407D Digtal Timer

LT403 Hex Louvre

LT405 Wire Connectors

LT2202A specification sheet
