LT2202B Grated In Ground Well Light

The LT2202B Inground Well Light uses a die‑cast brass louvered faceplate to provide controlled, glare‑managed illumination for walkways and garden beds. It is engineered with watertight gaskets and a corrosion‑resistant PVC sleeve to resist moisture ingress and environmental exposure, supporting long‑term outdoor reliability. The open‑top design allows rapid MR16 lamp replacement on site, without disturbing the installed housing.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) svt, 18/2c gauge

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Non-corrosive ploymer

Lid: Die cast brass, attached with 5 staineless steel screws

Lens: Clear flat lens

Socket: Fixed GU 5.3 bi pin socket

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2202B
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Beam Angle	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	5.3″×5.3″×6.7″
Gross Weight	1kg
Warranty	Surface 10 years, Structure Lifetime

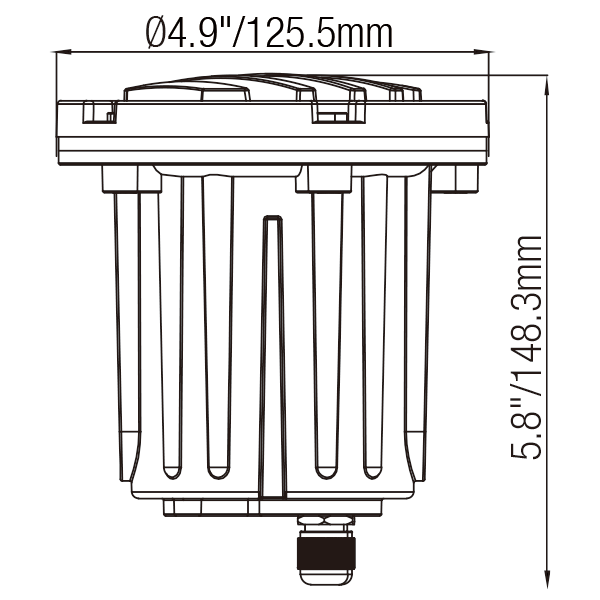

Dimensions

Photometrics

LT403 Hex Louvre

LT407D Digtal Timer

LT405 Wire Connectors

LT2202B specification sheet
