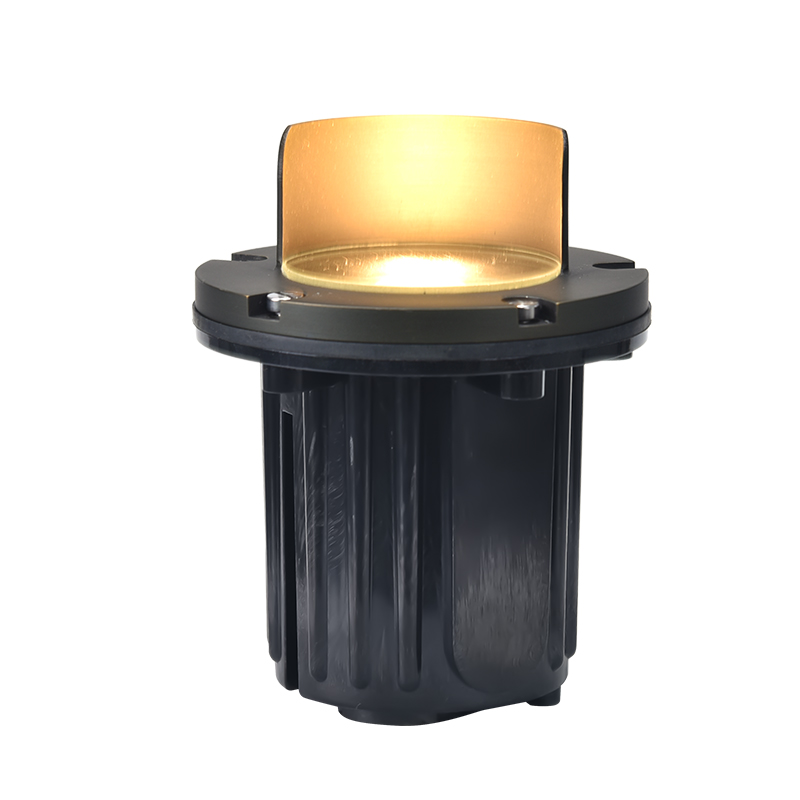

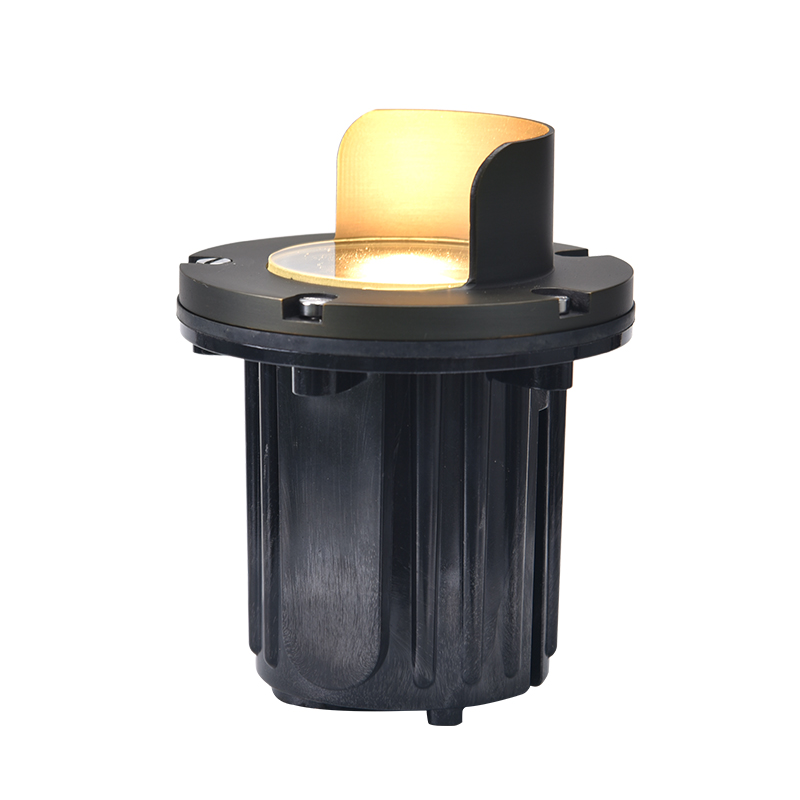

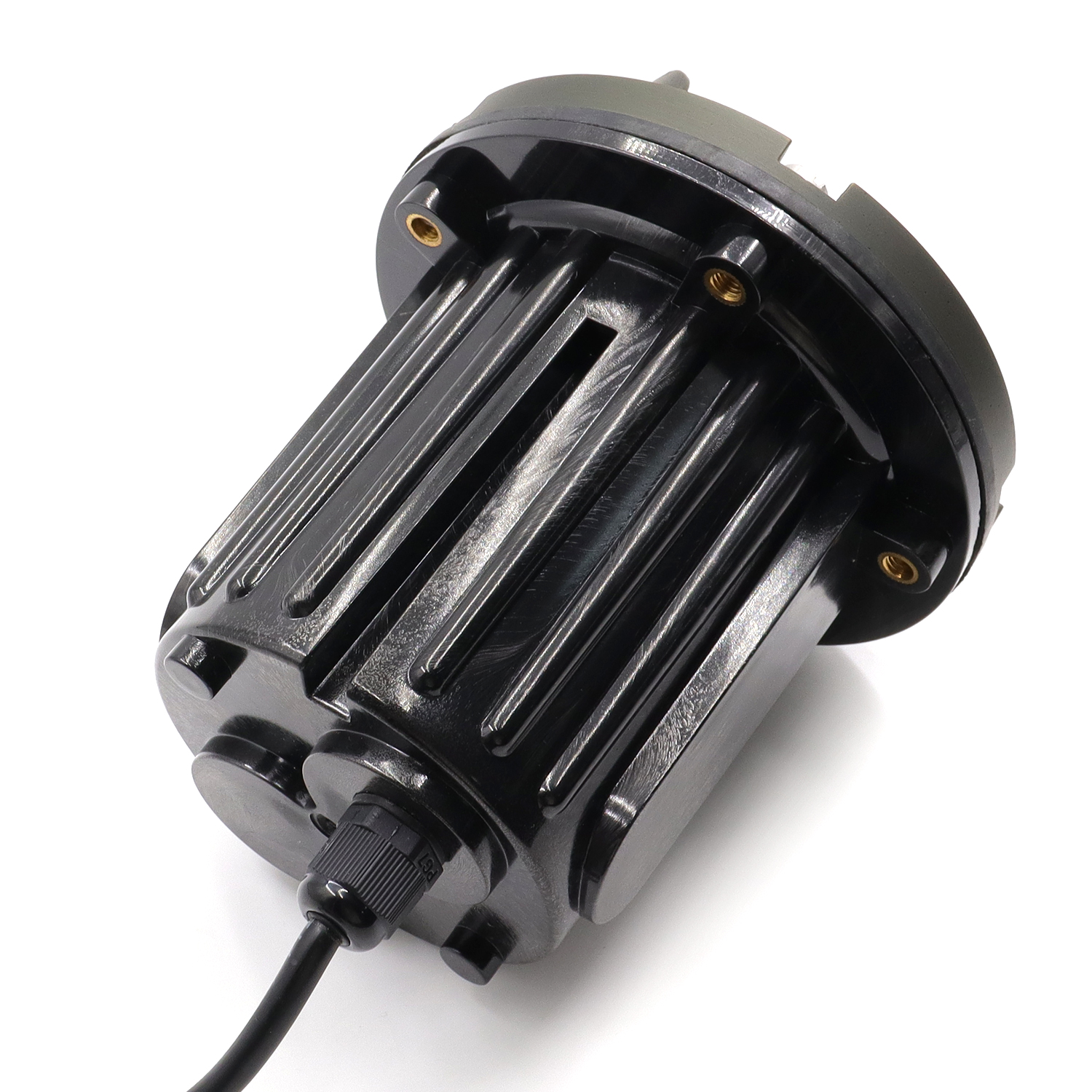

LT2203B Shrouded In Ground Well Light

Designed for precise directional illumination, the LT2203B features a heavy-duty die-cast brass half-moon eyelid shield. This integrated cowl design effectively eliminates upward glare while directing a focused beam toward walls, architectural features, or pathways. The fixture is housed in a corrosion-resistant PVC sleeve for maximum durability, and the bolted faceplate ensures a secure, weather-tight seal for the internal MR16 lamp in any landscape environment.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) svt, 18/2c gauge

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Non-corrosive ploymer

Lid: Die cast brass, attached with 5 staineless steel screws

Lens: Clear flat lens

Socket: Fixed GU 5.3 bi pin socket

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2203B
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Beam Angle	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	5.3″×5.3″×7.5″
Gross Weight	0.94kg
Warranty	Surface 10 years, Structure Lifetime

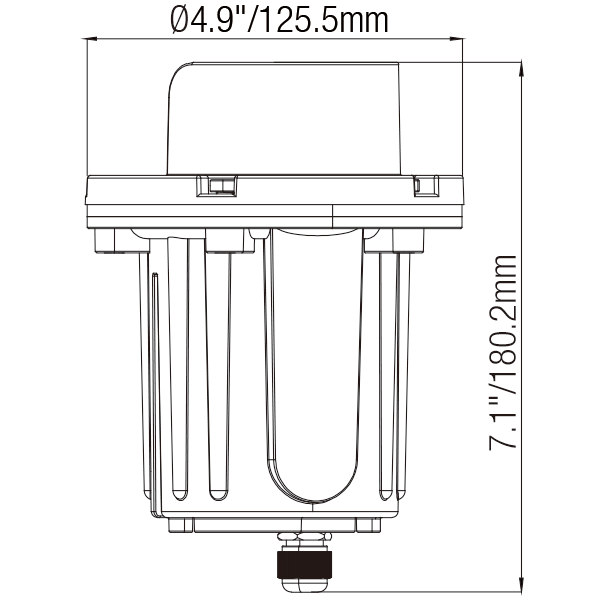

Dimensions

Photometrics

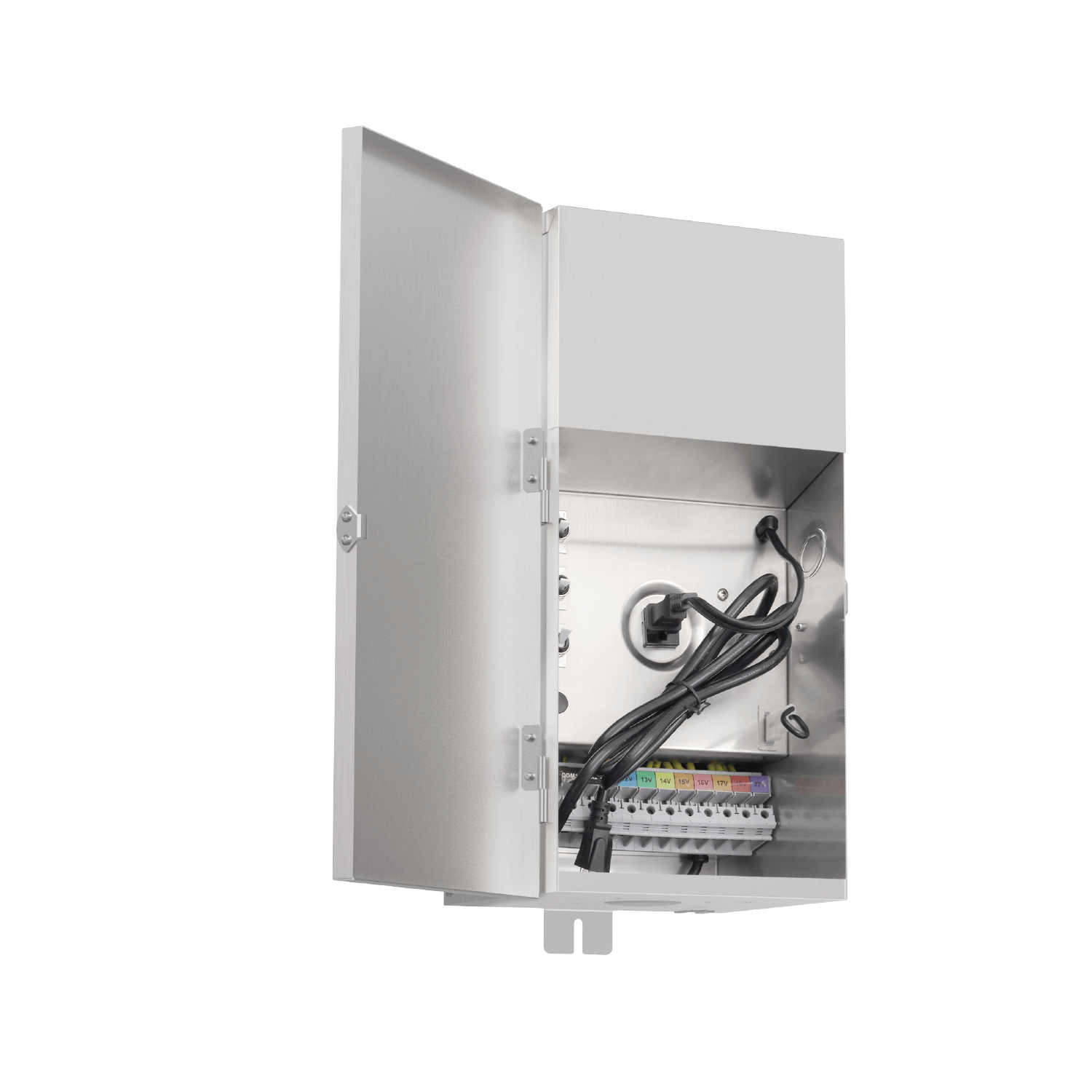

LT3900 900W Multi-tap Low Voltage Tranformer

LT403 Hex Louvre

LT407D Digtal Timer

LT405 Wire Connectors

LT2203B specification sheet
