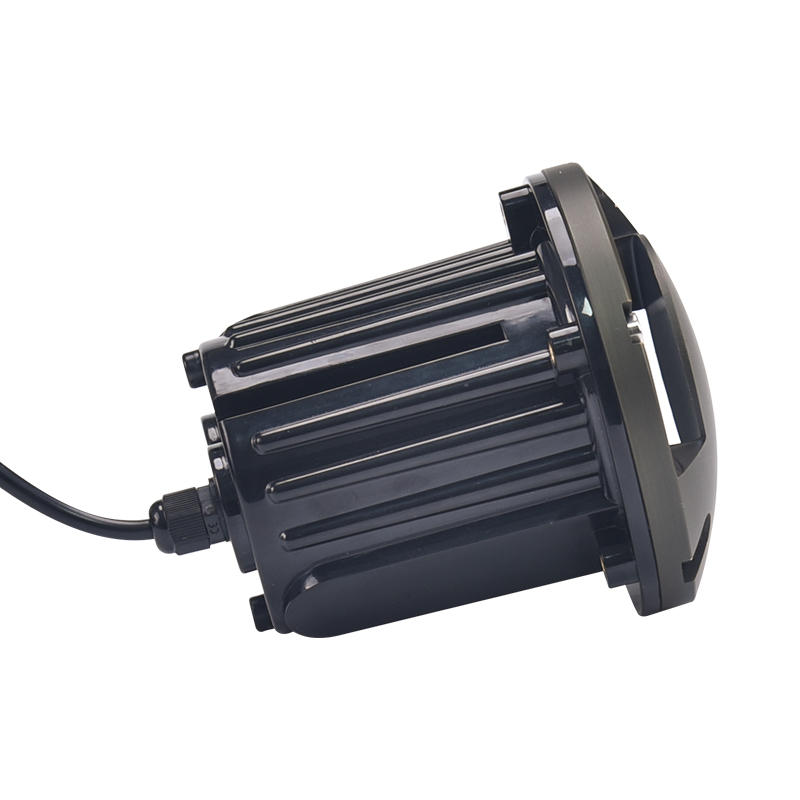

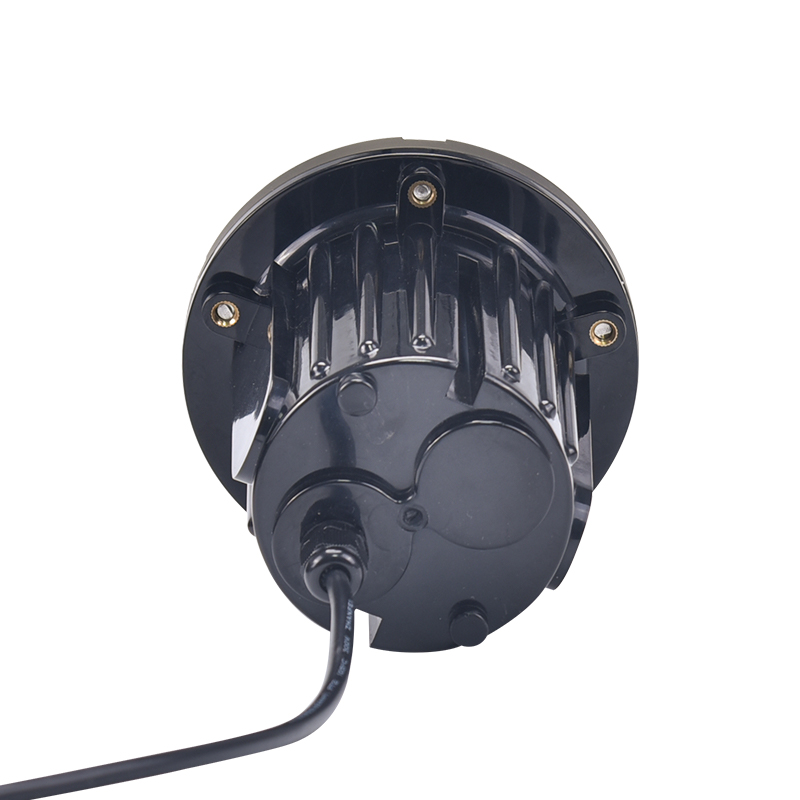

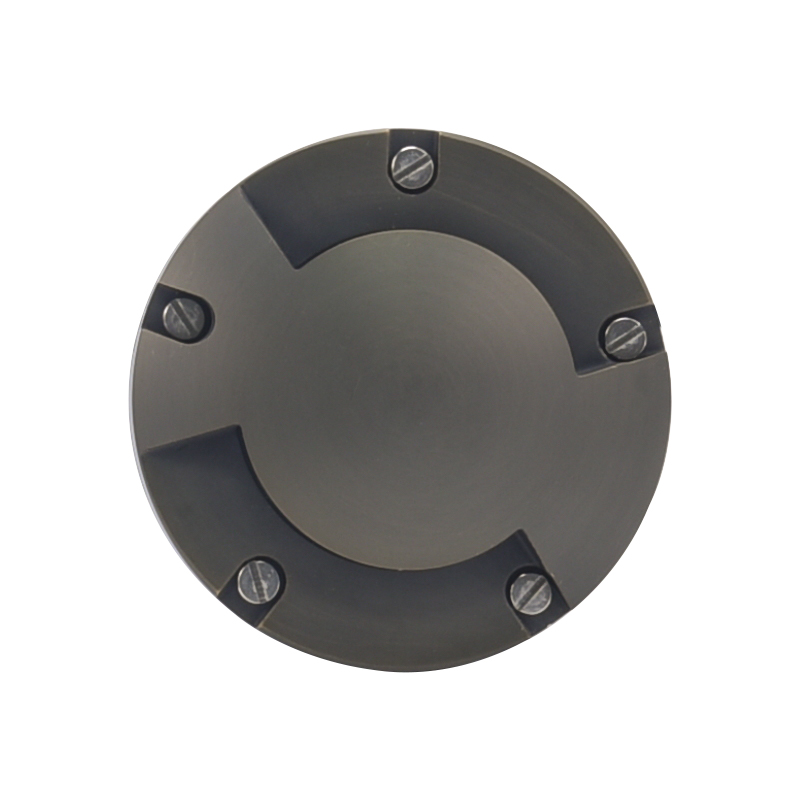

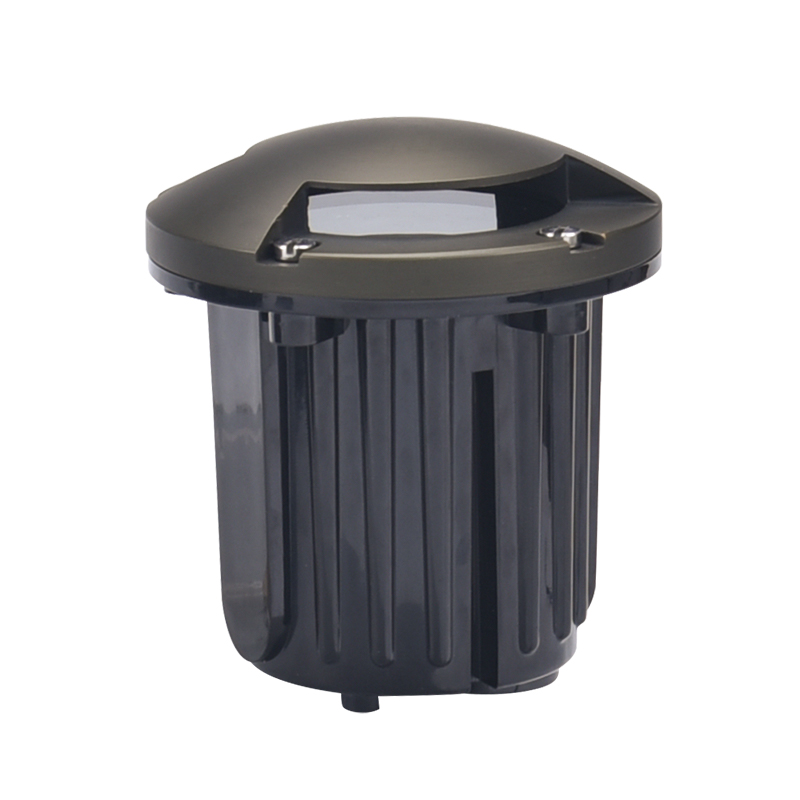

LT2204B Two Direction Turret In Ground Well Light

The LT2204B Inground Well Light features a heavy-duty die-cast brass shield for balanced bi‑directional side lighting along pathways, driveways, and garden areas. Its dual-window design guides the way while protecting the MR16 lamp, and a corrosion-resistant PVC sleeve with open-top access supports efficient maintenance without disturbing the installed housing.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) svt, 18/2c gauge

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Non-corrosive ploymer

Lid: Die cast brass, attached with 5 staineless steel screws

Lens: Clear flat lens

Socket: Fixed GU 5.3 bi pin socket

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2204B
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Beam Angle	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	5.3″×5.3″×6.7″
Gross Weight	0.83kg
Warranty	Surface 10 years, Structure Lifetime

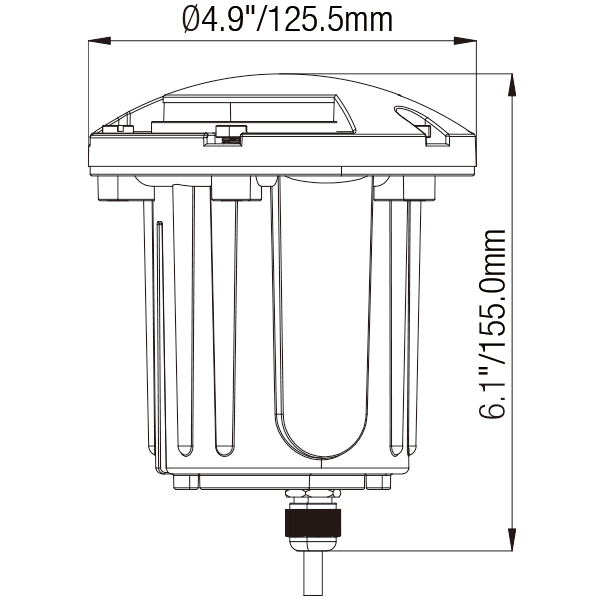

Dimensions

Photometrics

LT403 Hex Louvre

LT405 Wire Connectors

LT407D Digtal Timer

LT2204B specification sheet
