LT2204C Three Direction Turret In Ground Well Light

The LT2204C Inground Well Light uses a heavy-duty die-cast brass tri-window shield to provide tri-directional illumination, making it ideal for complex pathways, driveways, and garden intersections. The MR16 lamp is housed within a corrosion-resistant PVC sleeve for long-term reliability, while the low-profile design provides clear, high-visibility guidance without visual intrusion. Open-top access allows lamp replacement on-site, eliminating the need to disturb the installed housing.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) svt, 18/2c gauge

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Non-corrosive ploymer

Lid: Die cast brass, attached with 5 staineless steel screws

Lens: Clear flat lens

Socket: Fixed GU 5.3 bi pin socket

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2204C
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Beam Angle	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	5.3″×5.3″×6.7″
Gross Weight	1.05kg
Warranty	Surface 10 years, Structure Lifetime

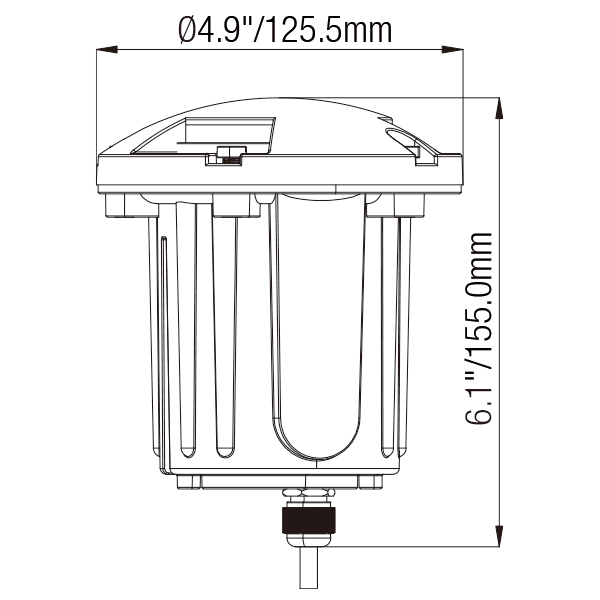

Dimensions

Photometrics

LT403 Hex Louvre

LT405 Wire Connectors

LT407D Digtal Timer

LT2204C specification sheet

Related Products

LT1016G Adjustable Beam Angle MR16 LED Lamp

LT1016G is a low-voltage MR16 LED lamp designed for landscape lighting applications. It offers 4W, 5W, 6W, and 7W options, providing flexible brightness levels for different outdoor settings. An integrated spin lens allows the beam angle to be adjusted to 20°, 40°, or 60°, giving you precise control over light distribution without changing the lamp. The lamp is available in five color temperatures: 2700K, 3000K, 4000K, 5000K, and 6000K, from warm white to daylight, to match different ambiance preferences. Compatible with 12V AC/DC systems, LT1016G is suitable for both residential and commercial landscape lighting projects, combining energy efficiency with reliable outdoor performance.

GET A QUOTE PRODUCT OVERVIEW

LT3150 150W Multi-tap Low Voltage Tranformer

LT3150 is a 150W multi-tap low-voltage transformer designed for medium-sized outdoor landscape lighting systems. Its 12V/13V/14V/15V taps help installers balance voltage output across different cable runs, supporting consistent brightness for path lights, spotlights, garden lights, and other low-voltage fixtures. Built with a non-brushed 304 stainless steel enclosure and outdoor-ready structure, it provides a reliable power solution for residential landscape projects.

GET A QUOTE PRODUCT OVERVIEW

14AWG/2C Direct Burial Cable

This 14AWG/2C direct burial cable is made for low-voltage landscape lighting, including garden lights, path lights, and accent lights. The 100% copper conductors help keep power loss low on typical outdoor runs, while the black PVC outer jacket is suitable for direct burial installation. It is available in 100 ft, 250 ft, and 500 ft spools, with a VW-1 flame-retardant rating for added installation safety.

GET A QUOTE PRODUCT OVERVIEW

LT2701PL3 12 Inch Die Cast Brass RGB CCT Tunable Smart Hardscape Light

The LT2701PL3 is a 12-inch low voltage smart LED hardscape light offering RGB and tunable white control through the Tuya app over Bluetooth. An external antenna helps maintain a stable wireless connection when installed beneath dense masonry, while protective tubing protects the lead wire from crushing during installation. Built from die-cast brass and secured with three stainless steel brackets, it delivers a continuous, hot-spot-free linear glow across wide steps, with a modular light bar that unclips for easy future maintenance.

GET A QUOTE PRODUCT OVERVIEW

LT2601 Die Cast Brass Deck Light

The LT2601 is a low-voltage surface-mount deck and step light, built from solid die-cast brass with a brushed antique bronze finish. Featuring a classic hooded eyebrow design, it casts a soft downward glow while eliminating direct glare. This bulb-ready fixture features a G4 bi-pin socket that accepts a single G4 LED lamp (sold separately) behind a clear protective lens. Its heavy-duty round base includes a side wire exit notch, allowing for clean, flexible surface mounting on decks, posts, or hardscape steps without pinching the cable.

GET A QUOTE PRODUCT OVERVIEW

LT2105 Standard Classic Brass Landscape Spotlight

The LT2105 is a long-lasting classic landscape spotlight featuring a heavy-duty die-cast brass construction and classic bullet outlook. With refined line accents and evenly distributed brushing, it blends seamlessly into outdoor settings for the precision uplighting of trees, columns, and architectural features.

GET A QUOTE PRODUCT OVERVIEW

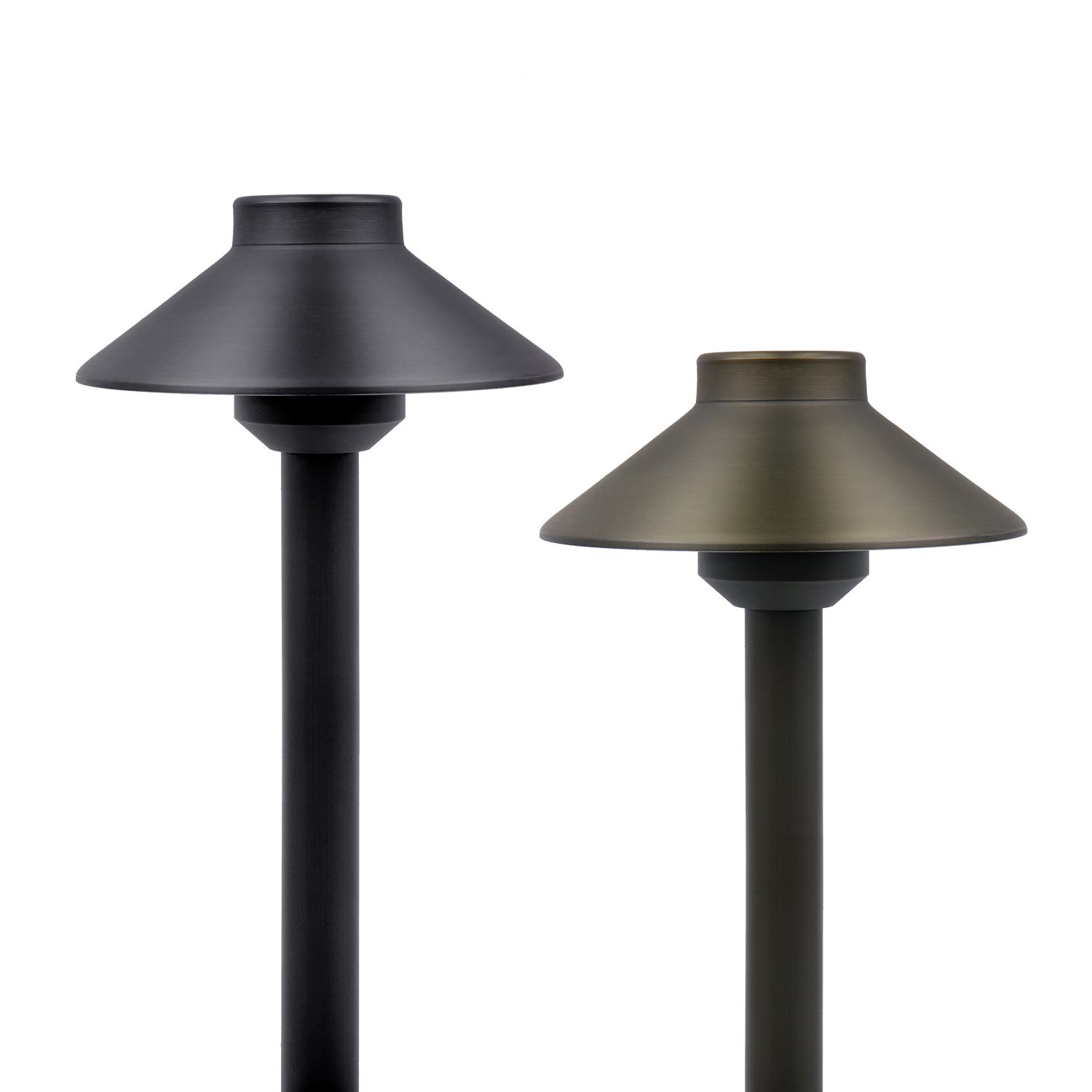

LT2401 Standard G4 Path Light
