LT2204E Multi Direction Turret MR16 In Ground Well Light

The LT2204E Inground Well Light is built with a heavy‑duty die‑cast brass shield for uniform 360‑degree illumination in pathways, driveways, and garden areas. The multi‑window design directs light in all directions while protecting the MR16 lamp, and the housing integrates watertight gaskets and a corrosion‑resistant PVC sleeve to resist moisture ingress and environmental exposure. This configuration supports long‑term, reliable outdoor operation without requiring unearthing for routine maintenance.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) svt, 18/2c gauge

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Non-corrosive ploymer

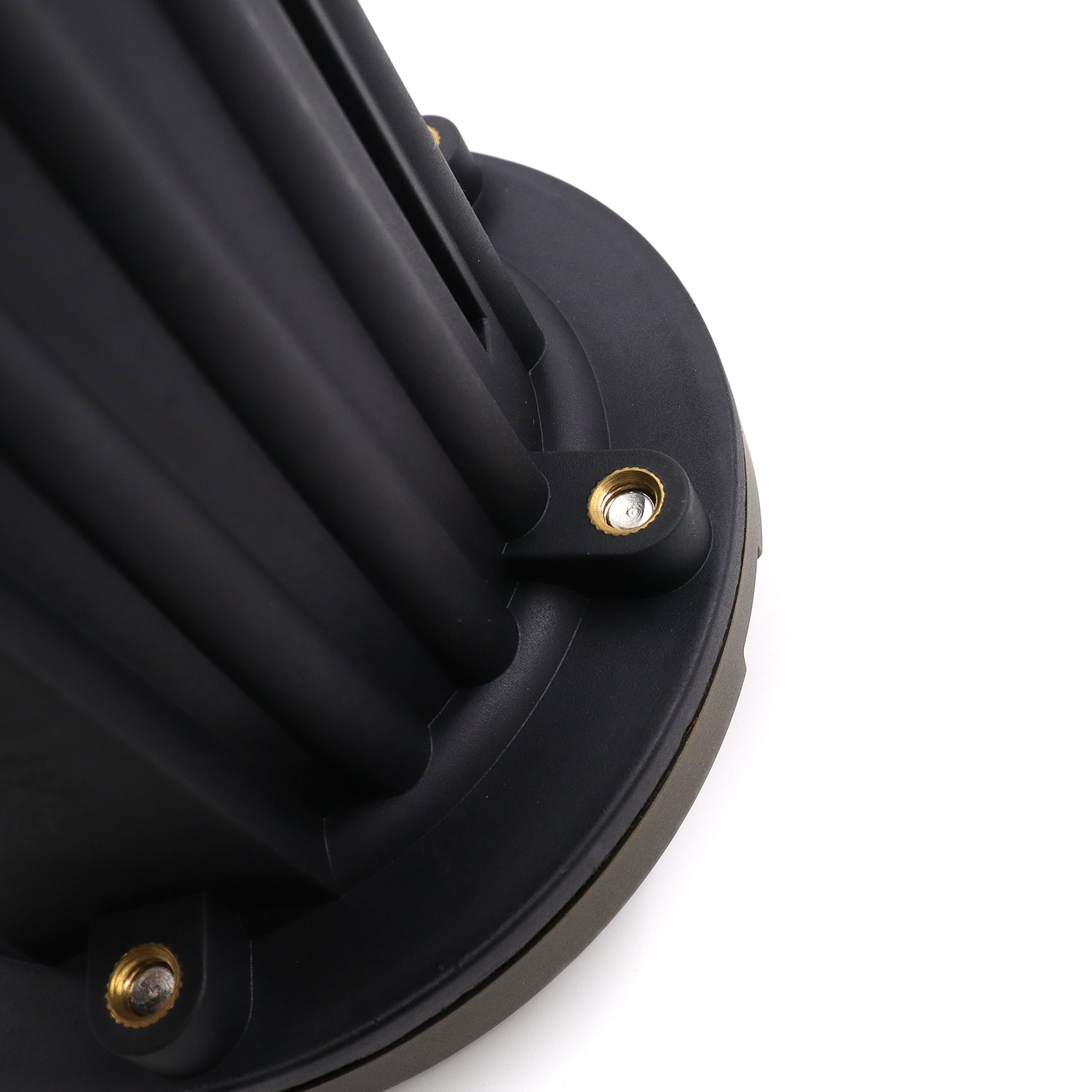

Lid: Die cast brass, attached with 5 staineless steel screws

Lens: Clear flat lens

Socket: Fixed GU 5.3 bi pin socket

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2204E
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Beam Angle	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	5.3″×5.3″×6.7″
Gross Weight	1.02kg
Warranty	Surface 10 years, Structure Lifetime

Dimensions

Photometrics

LT403 Hex Louvre

LT405 Wire Connectors

LT407D Digtal Timer

LT2204E specification sheet
