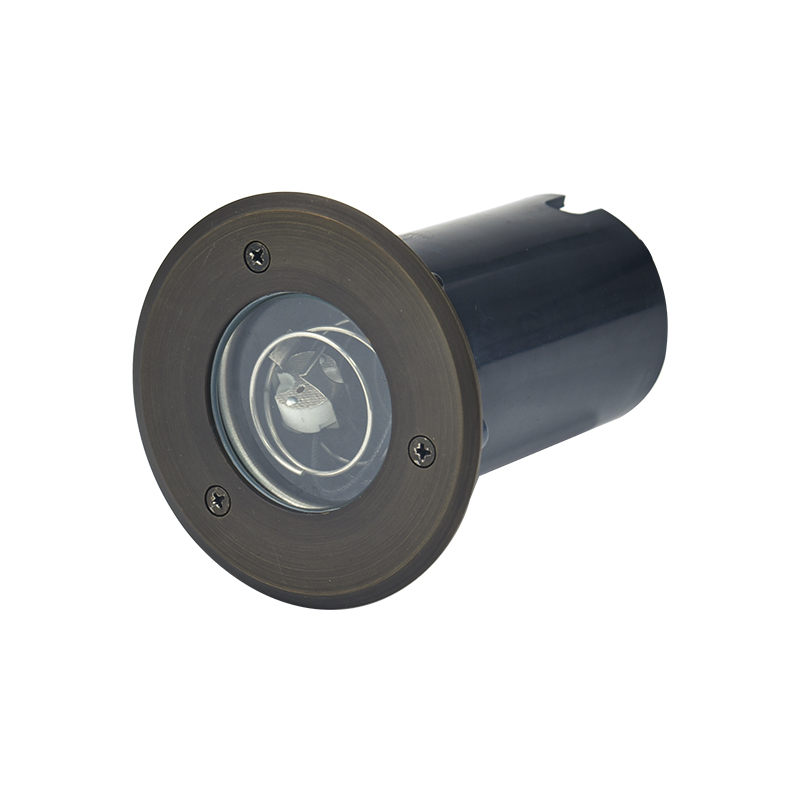

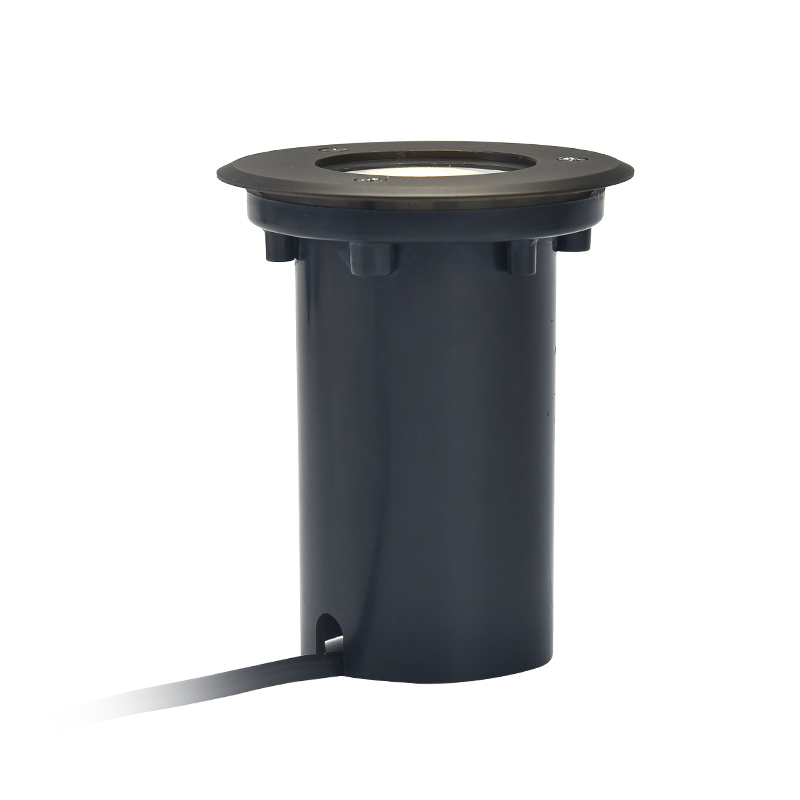

LT2206A Standard MR16 In Ground Well Light

The LT2206A Inground Well Light uses a heavy-duty die-cast brass flat faceplate to deliver focused, unobstructed vertical uplighting for trees, architectural walls, and garden focal points. Watertight gaskets protect the housing from moisture ingress and environmental exposure, while the MR16 lamp is secured within a corrosion-resistant PVC sleeve. Open-top screws allow rapid, on-site lamp replacement without disturbing the installed housing.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) svt, 18/2c gauge.

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Non-corrosive ploymer

Lid: Die cast brass, attached with 5 staineless steel screws

Lens: Clear flat lens

Socket: Fixed GU 5.3 bi pin socket

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2206A
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Beam Angle	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	4.8″×4.4″×5.6″
Gross Weight	1.11kg
Warranty	Surface 10 years, Structure Lifetime

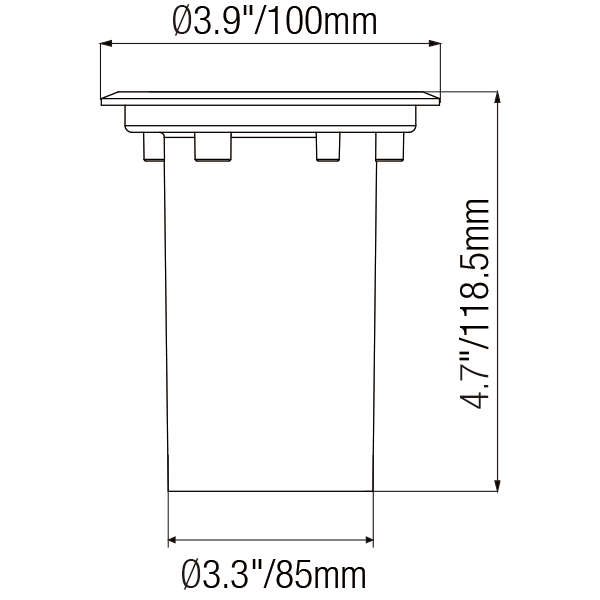

Dimensions

Photometrics

LT403 Hex Louvre

LT405 Wire Connectors

LT407D Digtal Timer

LT2206A specification sheet
