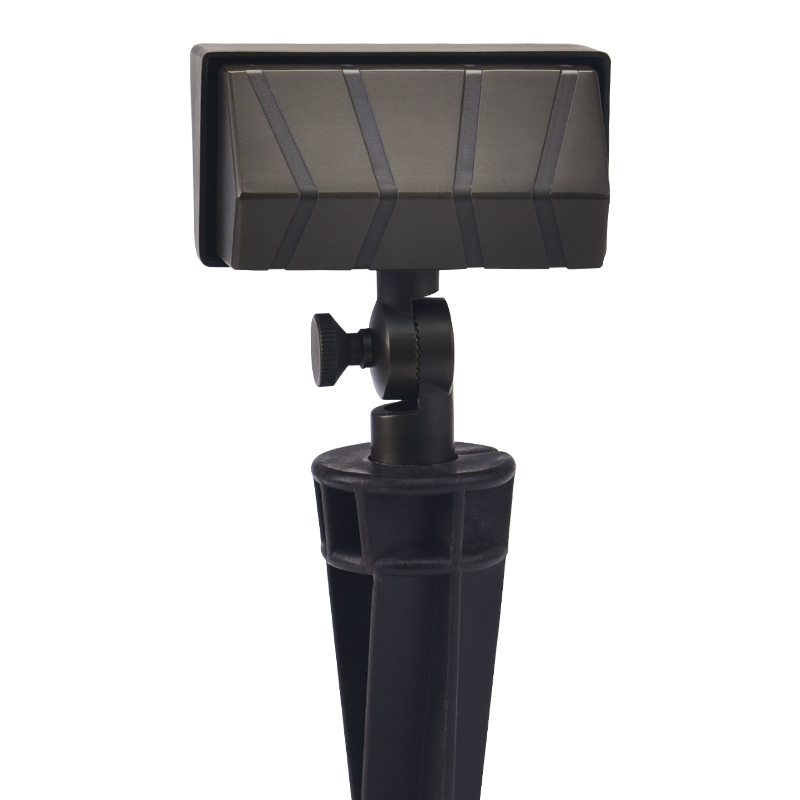

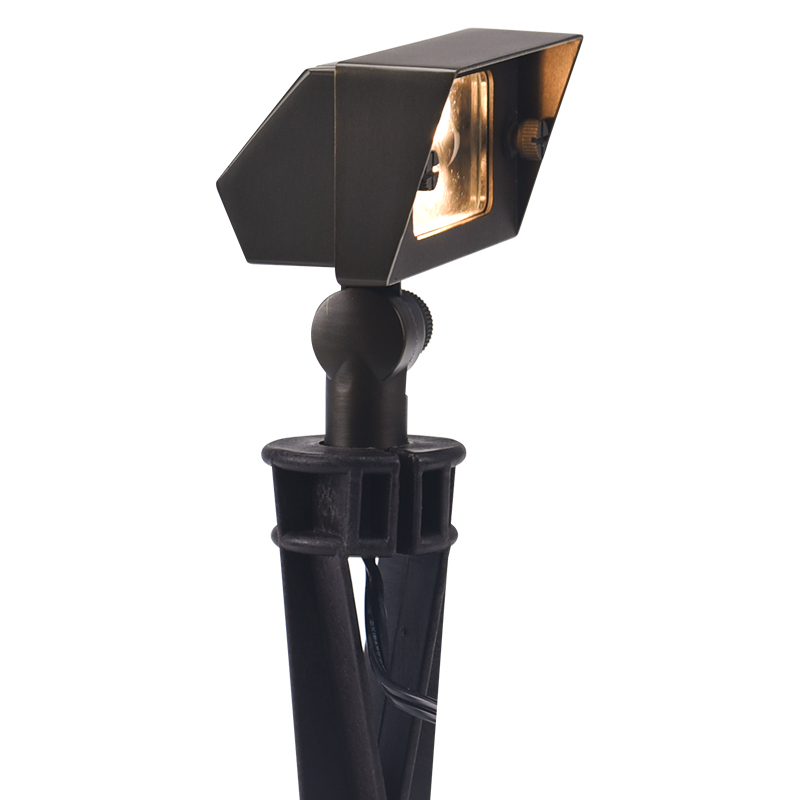

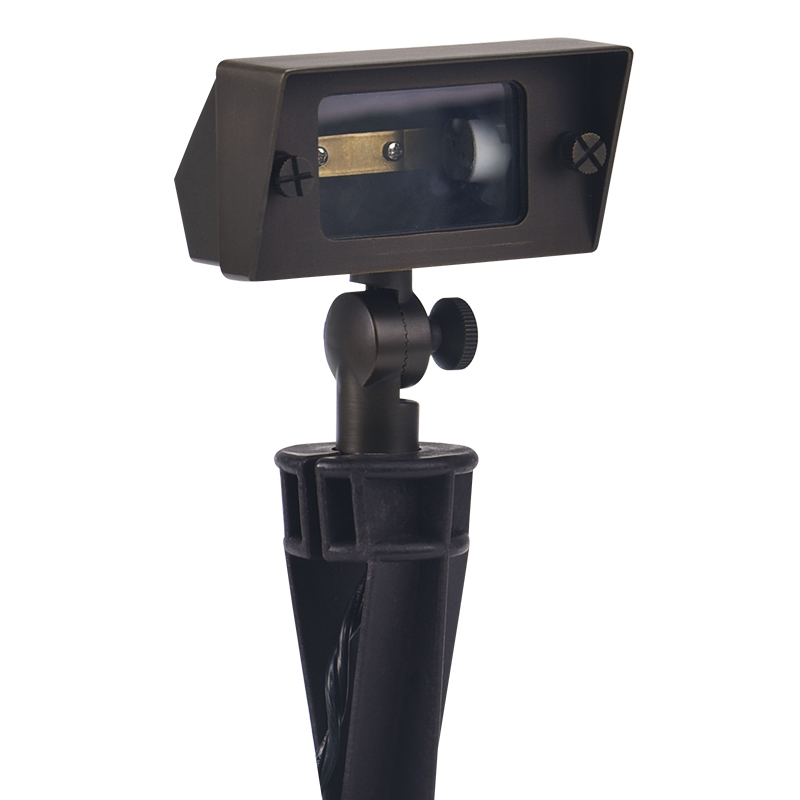

LT2303 Die Cast Landscape Lighting Rectangle Flood Light

The LT2303 is a compact, rectangular landscape floodlight designed for broad-area wall washing and architectural accenting. Built with heavy-duty die-cast brass and an IP65 rating, this low-voltage floodlight operates on a safe 12V system, ensuring secure and energy-efficient installation for both residential and commercial landscapes. Featuring a G4 bi-pin socket and a reinforced knuckle with a thumb screw, it allows for precise, tool-free angle adjustment.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG.

Mounting: Standard 8″ ground stake (included)

More options: canopy surface mount, gutter mount, adjustable brass riser,hex louver.

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Die cast brass

Knuckle: Die cast brass, Thumb Screw and knuckle for angle adjustment.

Socket: Fixed GU 5.3 bi pin socket.

Shroud & Lens: Clear or frosted flat glass lens.

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2303
In put Voltage	9-17VAC/DC
Lighting source	G4 Lamp (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to G4
Beam Angle	According to G4
Color Temperature (CCT)	According to G4
Color Rendering Index (Ra)	According to G4
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	9.6″×5.3″×3.4″
Gross Weight	0.9 kg
Warranty	Surface 10 years, Structure Lifetime

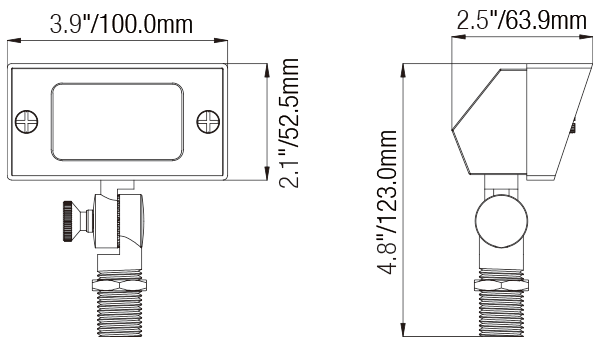

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT2303 specification sheet
