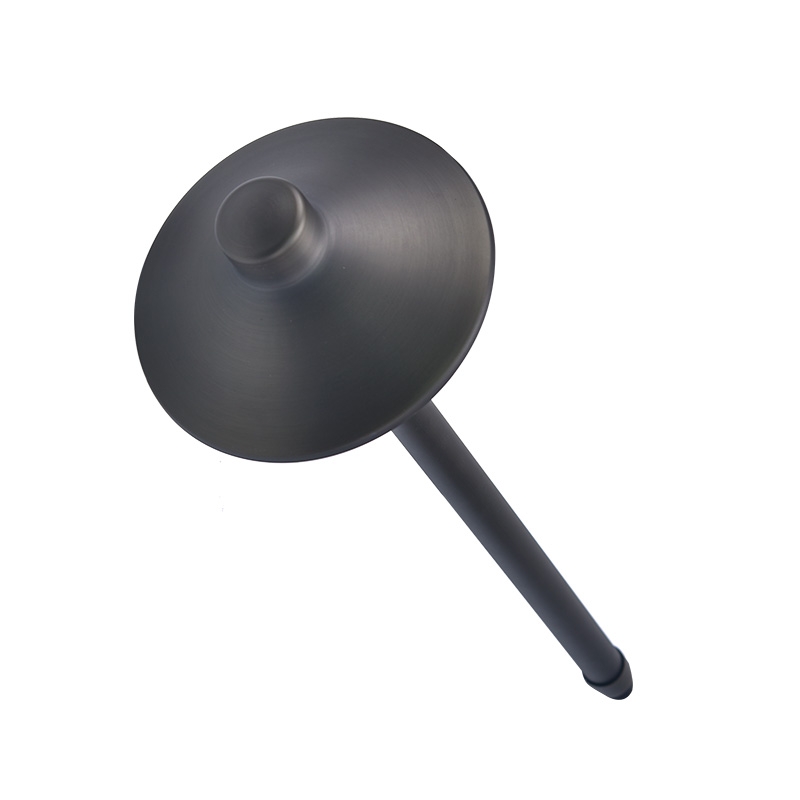

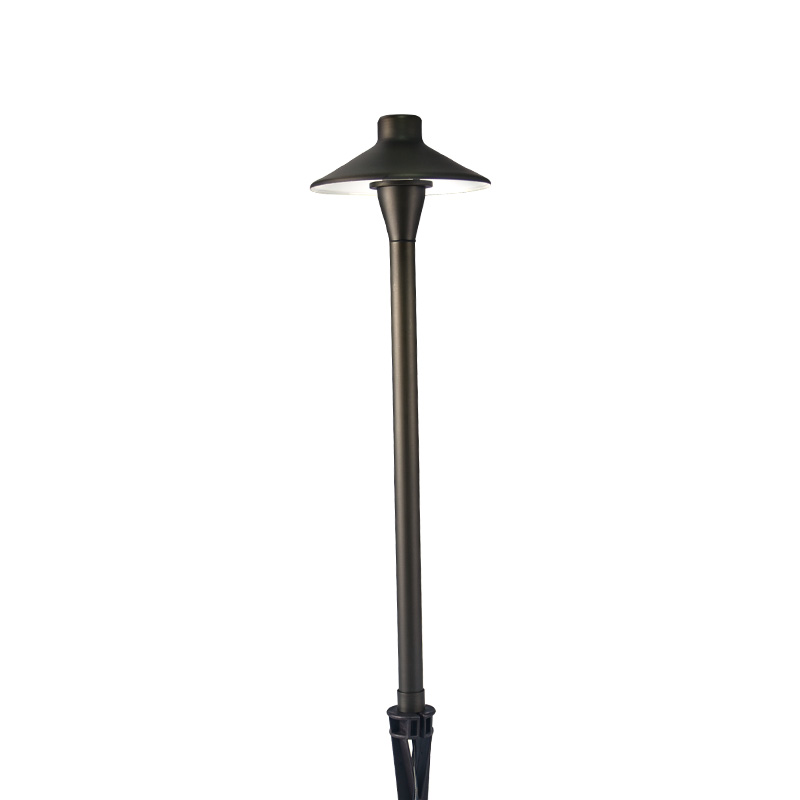

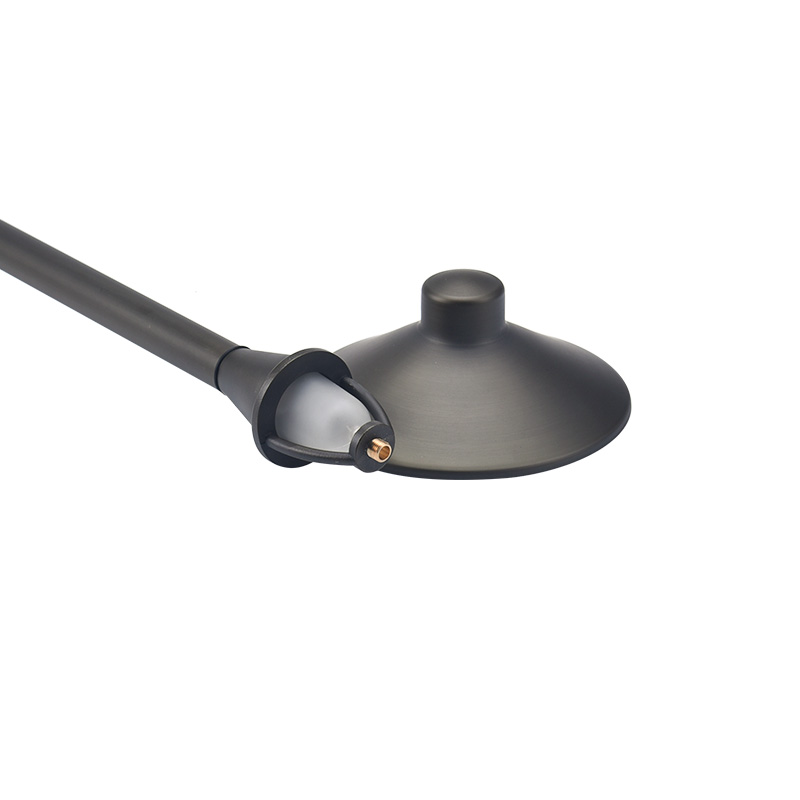

LT2402 Classic Flat Hat G4 Path Light

The LT2402 landscape path light features a classic flat hat-style shade with a frosted lens, providing soft, diffused light for walkways and gardens. Its heavy-duty die-cast brass construction ensures durability, while the G4 bulb offers energy-efficient illumination. With its timeless design, this low voltage path light is perfect for enhancing both residential and commercial landscapes.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG

Mounting: Standard 8.5″ large ground stake (included)

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Die cast brass(hat and stem)

Lens: Frosted or clear cylindrical glass

Socket: Fixed GU 5.3 bi pin socket

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2402
In put Voltage	9-17V AC/DC
Lighting source	G4 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to G4
Beam Spread	According to G4
Color Temperature (CCT)	According to G4
Color Rendering Index (Ra)	According to G4
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	Hat: 7.6″×7.2″×3.2″ Stem: 23.8″×3.3″×2.6″
Gross Weight	Hat: 0.7kg Stem: 1.1kg
Warranty	Surface 10 Years, Structure Lifetime
Features

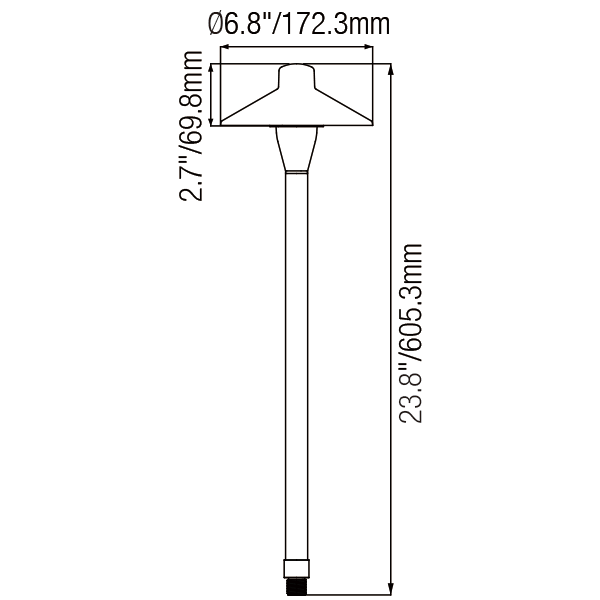

Dimensions

Photometrics

LT401Z Die Cast Brass Stake Cover

LT406-ES25-ES20

LT402C Gutter Mounts

LT2402 specification sheet
