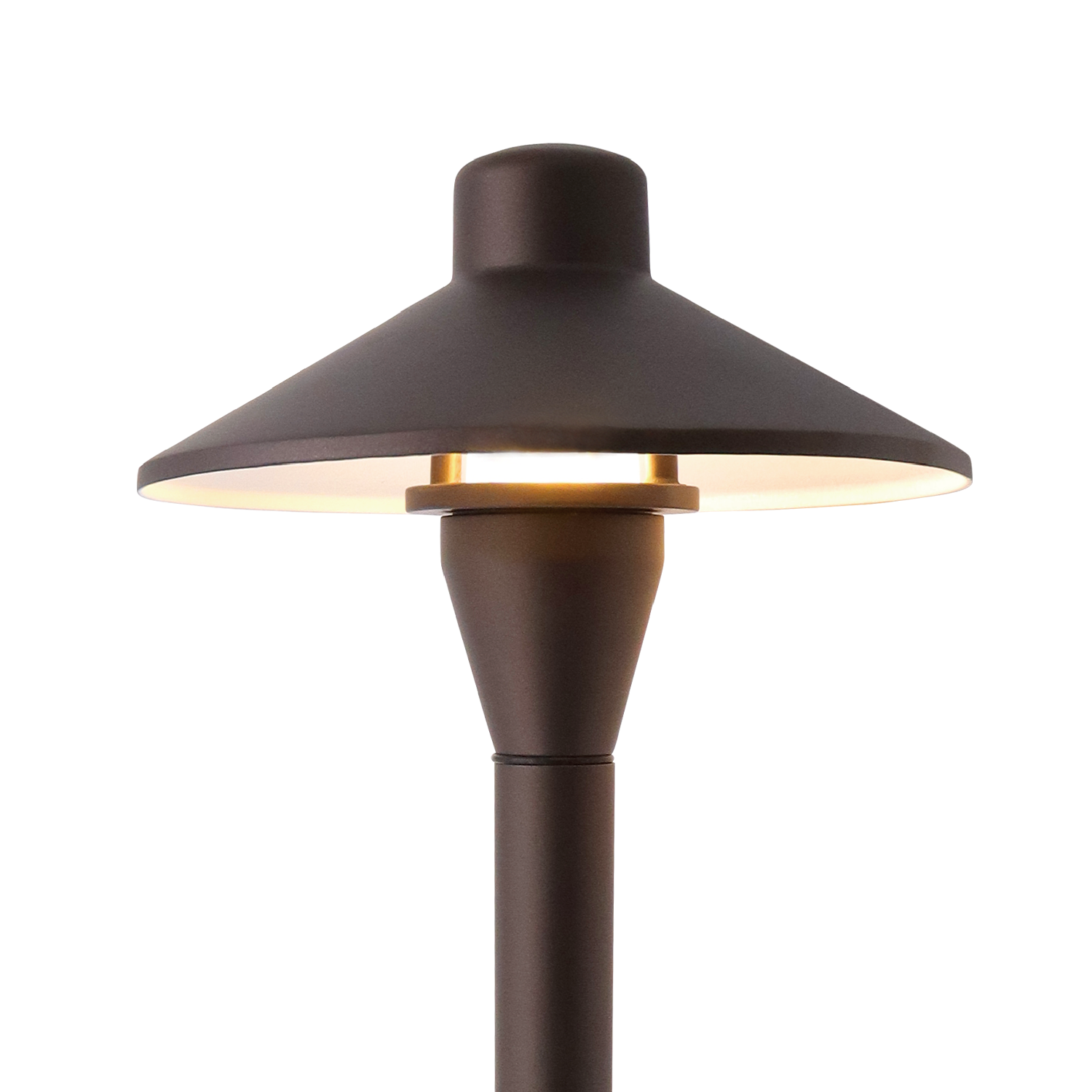

LT2402A Die Cast Aluminum Standard G4 Path Light

The LT2402A path light is made from durable die-cast aluminum, built to withstand outdoor elements. It features a frosted or clear cylindrical glass lens for soft, even illumination, making it perfect for lighting pathways and garden areas. Equipped with a fixed G4 Bi-Pin socket, it ensures secure bulb installation. The fixture also includes a standard 8.5″ ground stake for easy mounting, combining reliability and style for your landscape lighting needs.

Mounting / Installation

Lead Wire: 48″ (1.2 meters) Spt-1W, 18AWG

Mounting: Standard 8.5″ large ground stake (included)

Material

Finish: ORB/Matte Black

Construction: Die cast aluminum(hat and stem)

Lens: Frosted or clear cylindrical glass

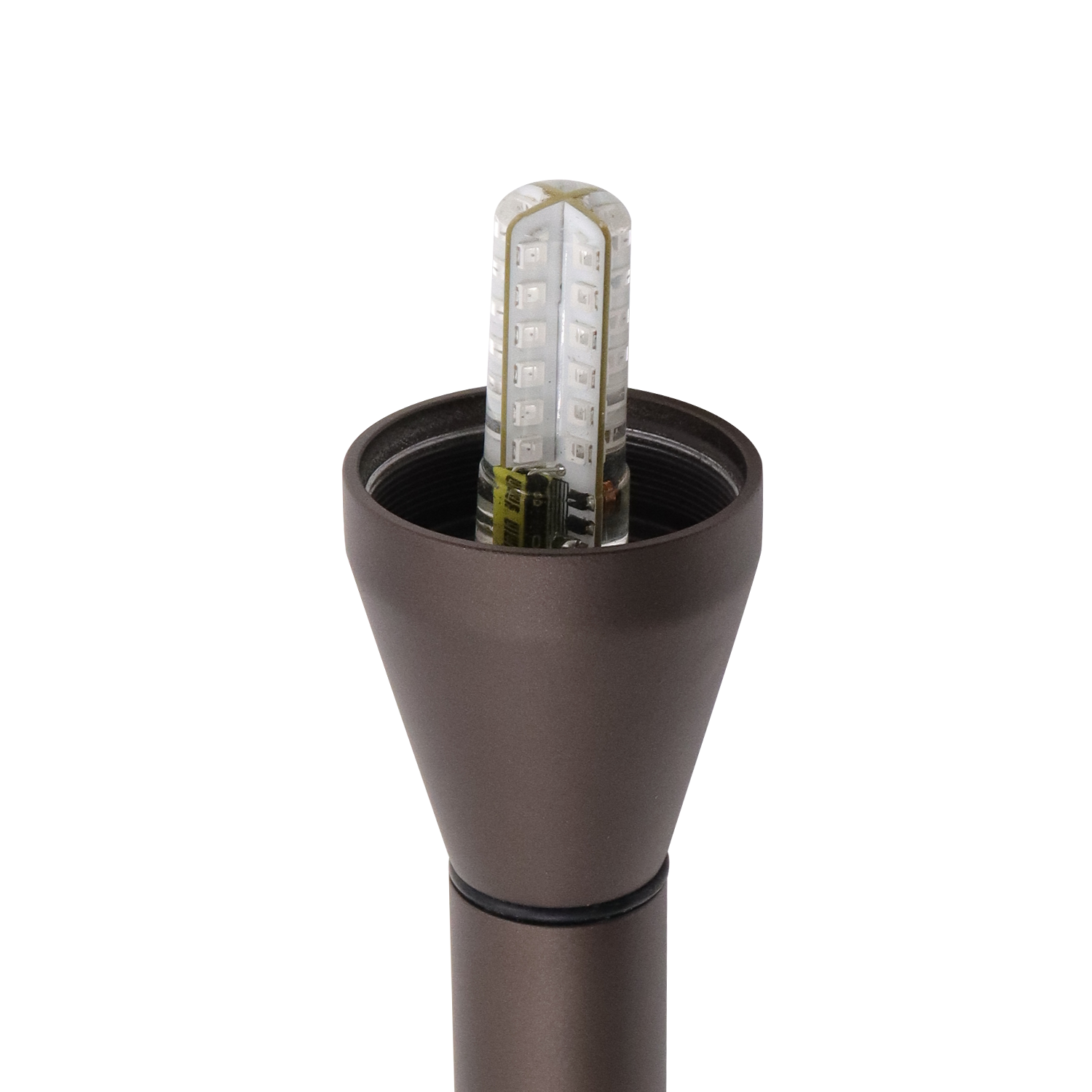

Socket: Fixed GU5.3 Bi-Pin socket

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2402A
In put Voltage	9-17V AC/DC
Lighting source	G4 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to G4
Beam Spread	According to G4
Color Temperature (CCT)	According to G4
Color Rendering Index (Ra)	According to G4
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	Hat: 6.9″×6.5″×3″ Stem: 21.5″×1.9″×1.9″
Gross Weight	Hat: 0.7kg Stem: 1.1kg
Warranty	5 Years, Structure Lifetime

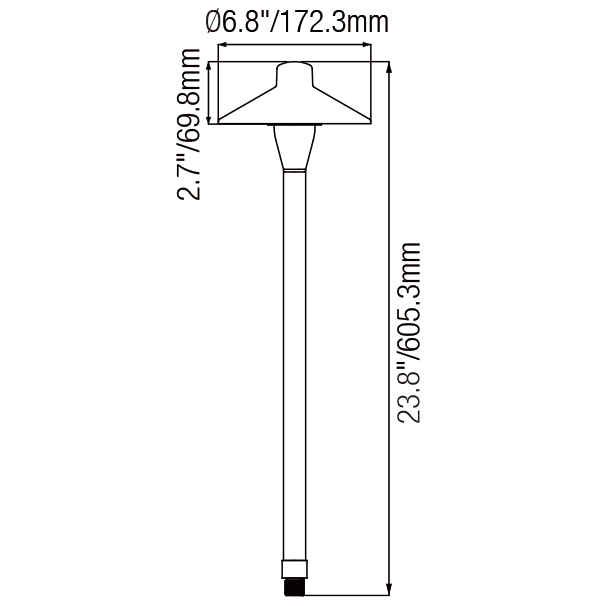

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT401Z Die Cast Brass Stake Cover

LT2402A specification sheet
