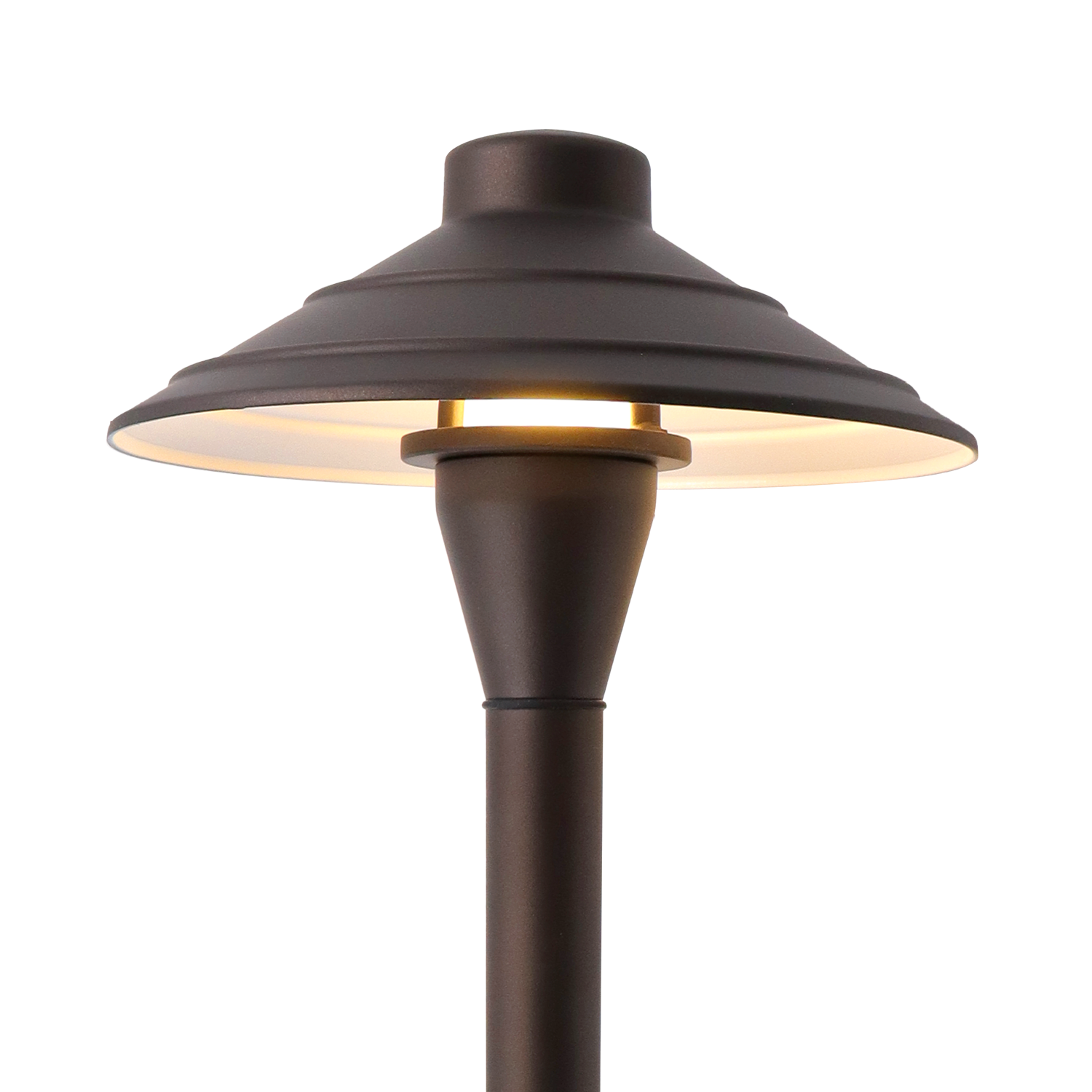

LT2403A Die Cast Aluminum Standard G4 Path Light

The LT2403A is a classic path light crafted from durable die-cast aluminum. Its wide, tiered shade and slim stem create a clean, traditional profile, while the layered shade adds a refined decorative touch. With an IP65 rating, this low-voltage path light is designed to withstand outdoor elements, making it ideal for illuminating pathways, gardens, and driveways in both residential and commercial landscapes.

Mounting / Installation

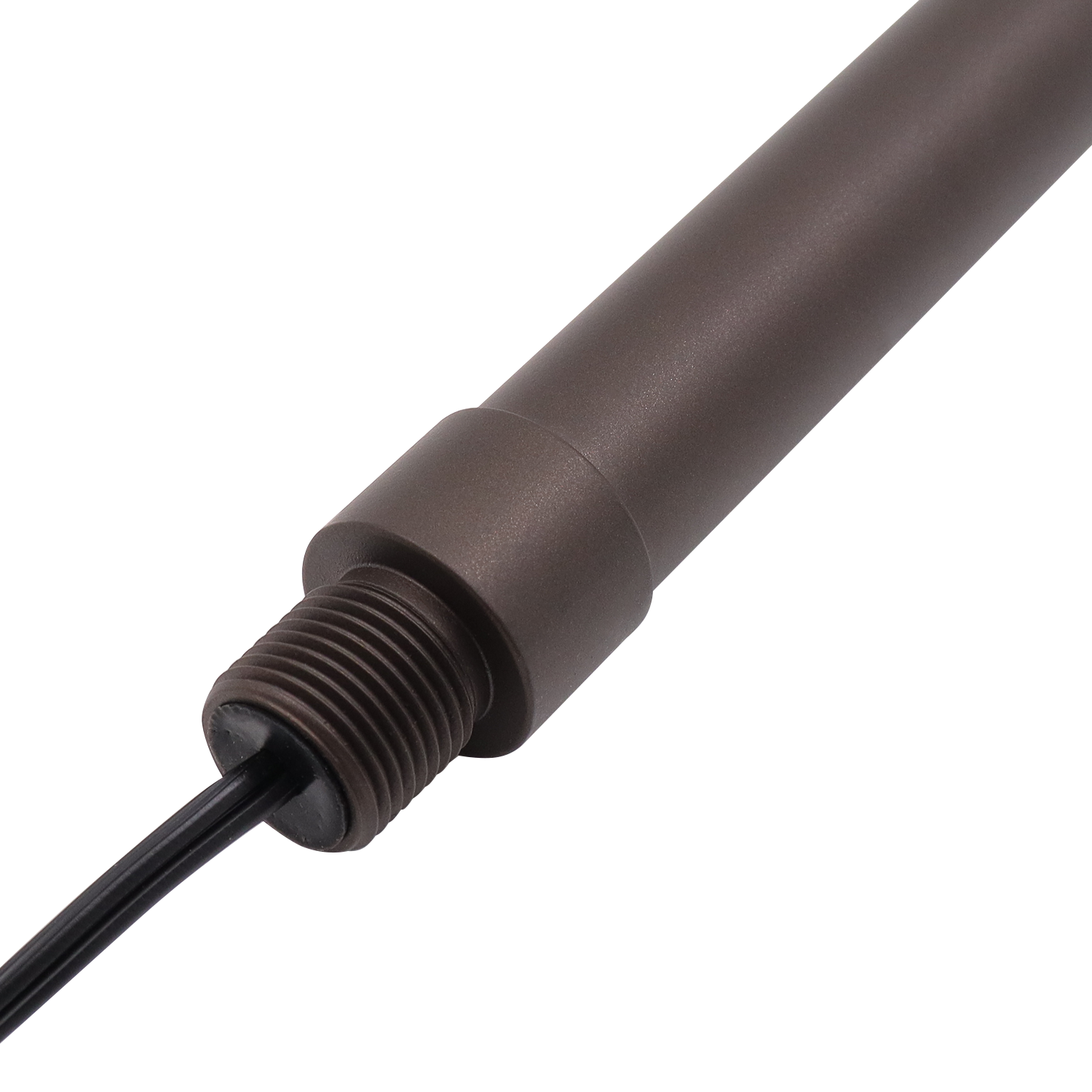

Lead Wire: 48″ (1.2 meters) Spt-1W, 18AWG wire leads

Mounting: Standard 8.5″ large ground stake (included)

Material

Finish: ORB/Matte Black

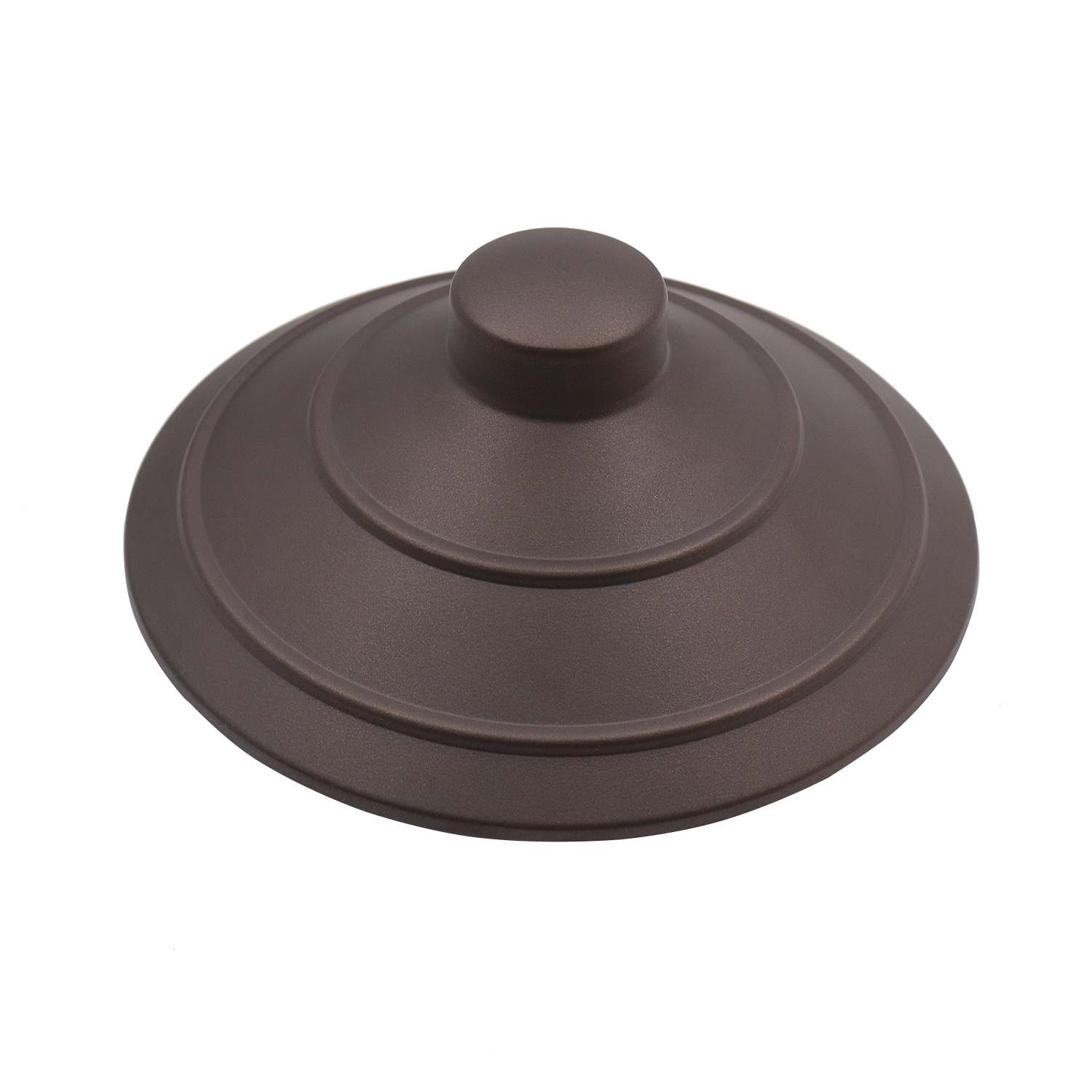

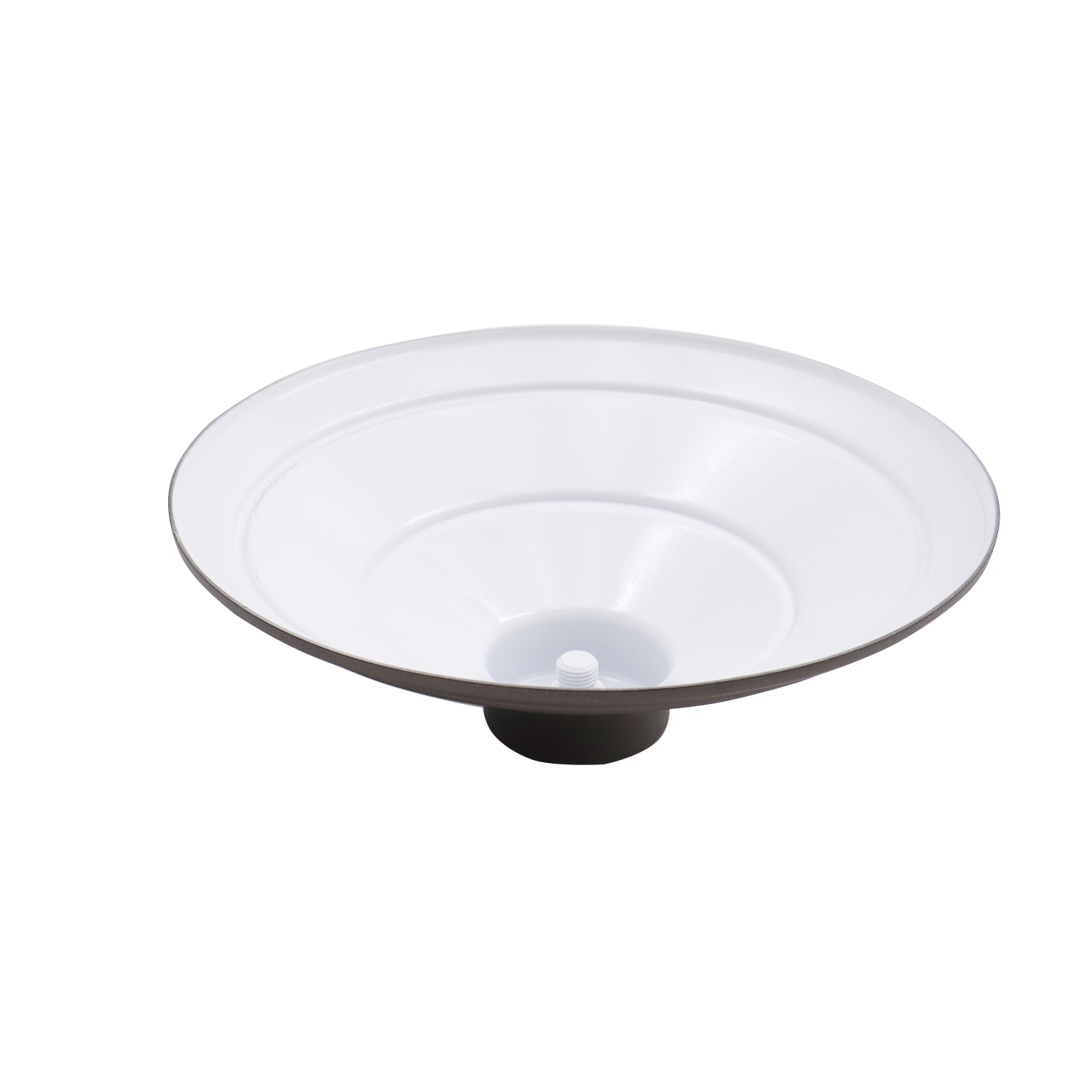

Construction: Die cast aluminum(hat and stem)

Lens: Frosted or clear cylindrical glass

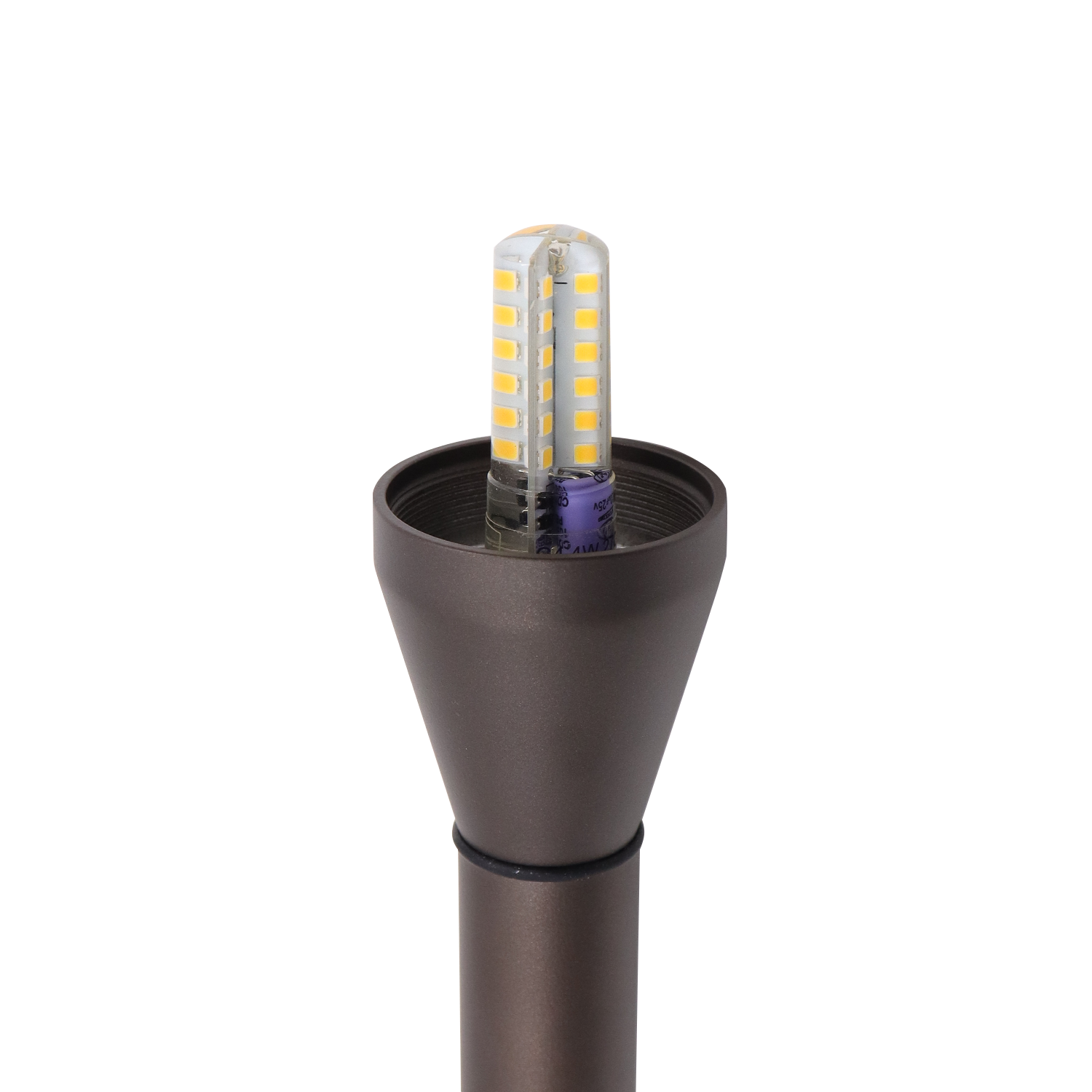

Socket: Fixed GU5.3 Bi-Pin socket

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2403A
In put Voltage	9-17V AC/DC
Lighting source	G4 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to G4
Beam Spread	According to G4
Color Temperature (CCT)	According to G4
Color Rendering Index (Ra)	According to G4
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	Hat: 7.6″×7.2″×3.2″ Stem: 23.8″×3.3″×2.6″
Gross Weight	Hat: 0.5kg Stem: 1.1kg
Warranty	5 Years, Structure Lifetime

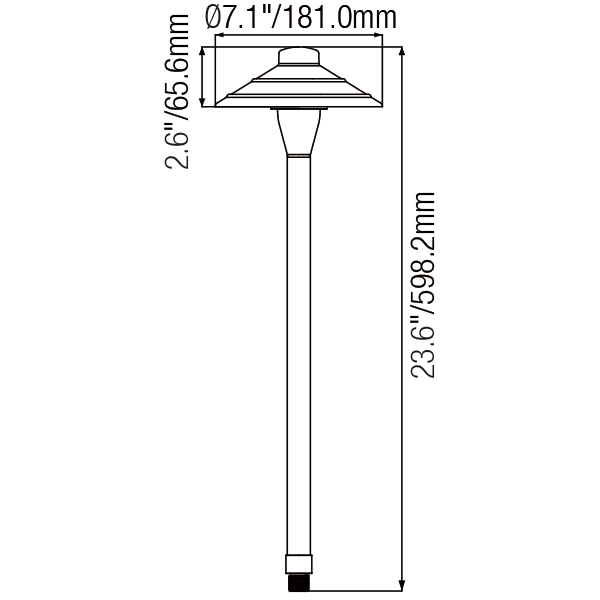

Dimensions

Photometrics

LT401Z Die Cast Brass Stake Cover

LT407D Digtal Timer

LT405 Wire Connectors

LT2403A specification sheet
