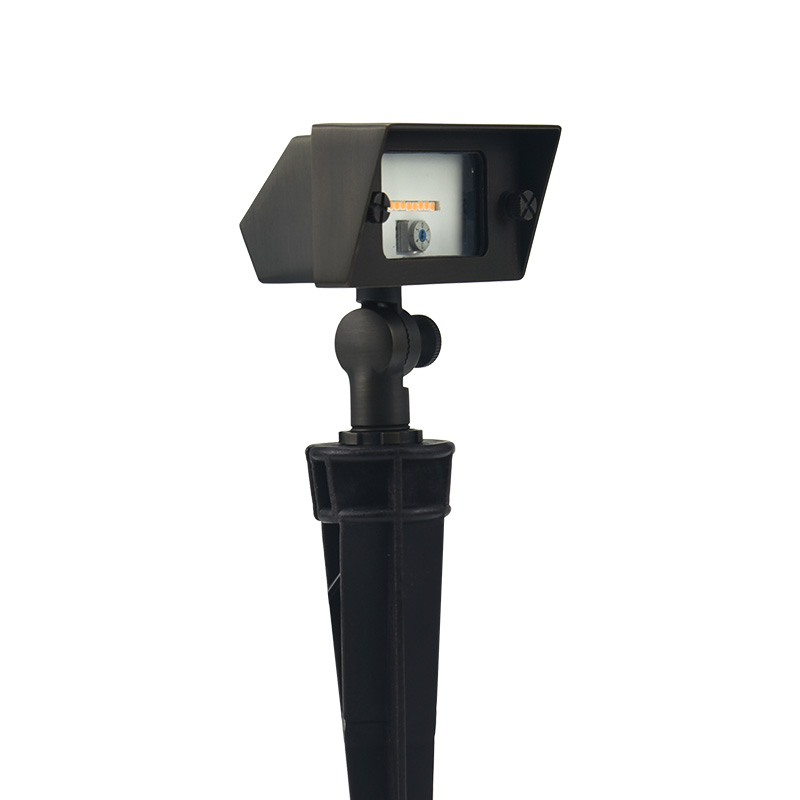

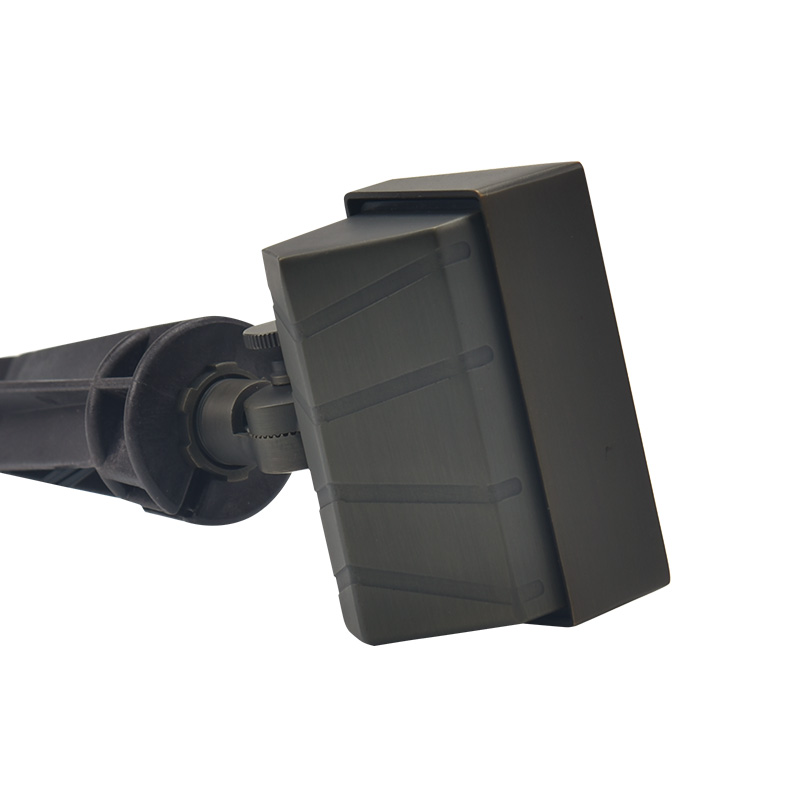

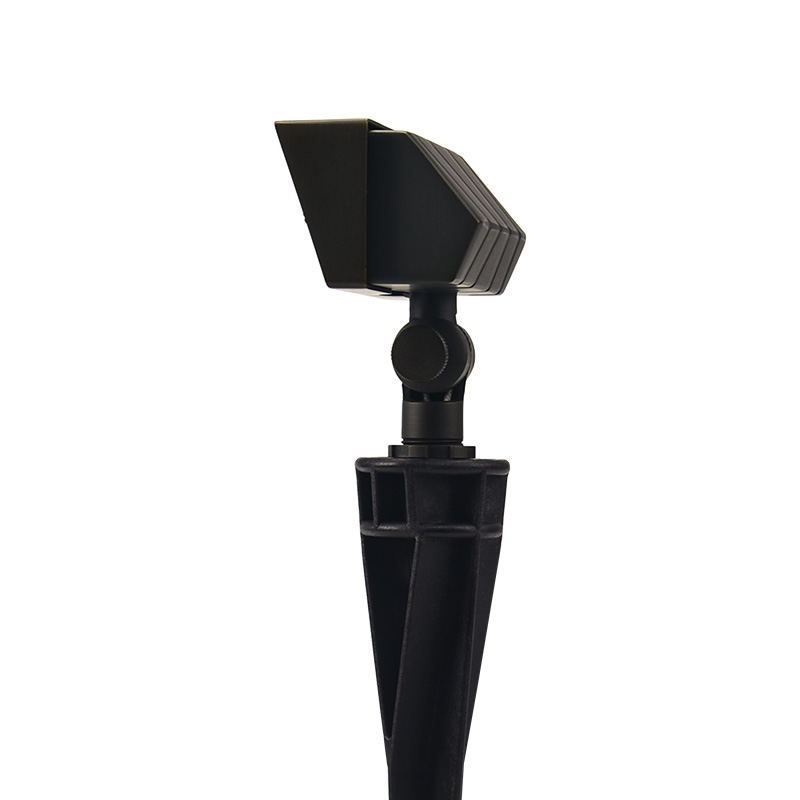

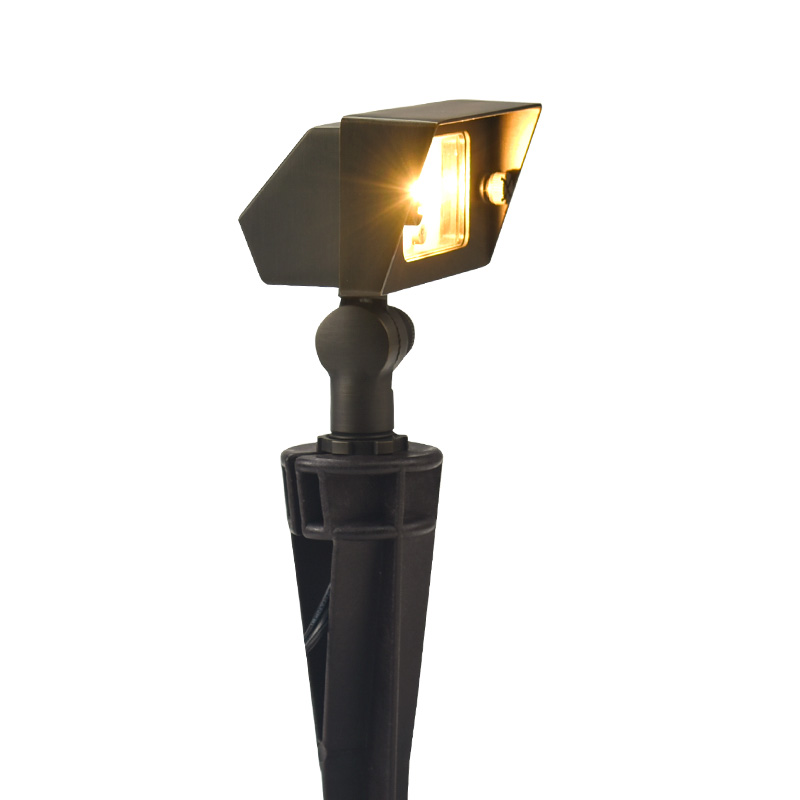

LT2501 Die Cast Brass Integrated Flood Light

The LT2501 is a low-voltage brass landscape flood light with adjustable wattage for flexible outdoor lighting applications. Its solid die-cast brass construction ensures long-term durability in harsh environments, while the adjustable output allows precise control for uplighting trees, walls, pathways, and architectural features. It features an integrated LED light engine, eliminating the need for a separate light source for simplified installation and maintenance.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG

Mounting: Standard 8″ ground stake (included)

More options: canopy surface mount, gutter mount, adjustable brass riser,hex louver.

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Die cast brass

Knuckle: Die cast brass, Thumb Screw and knuckle for angle adjustment.

Socket: Integrated lighting source.

Shroud & Lens: Clear or frosted flat glass lens.

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2501
In put Voltage	9-17VAC/DC
Lighting source	Integrated Lighting Board
Wattage	1-5W adjustable
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	80-400LM
Beam Angle	160′
Color Temperature (CCT)	2700-6000K(Optional)
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	9.6″×5.3″×3.4″
Gross Weight	0.9 kg
Warranty	5 years
Features

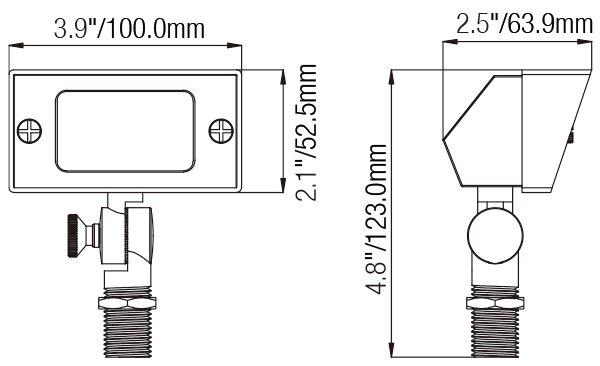

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT2501 specification sheet
