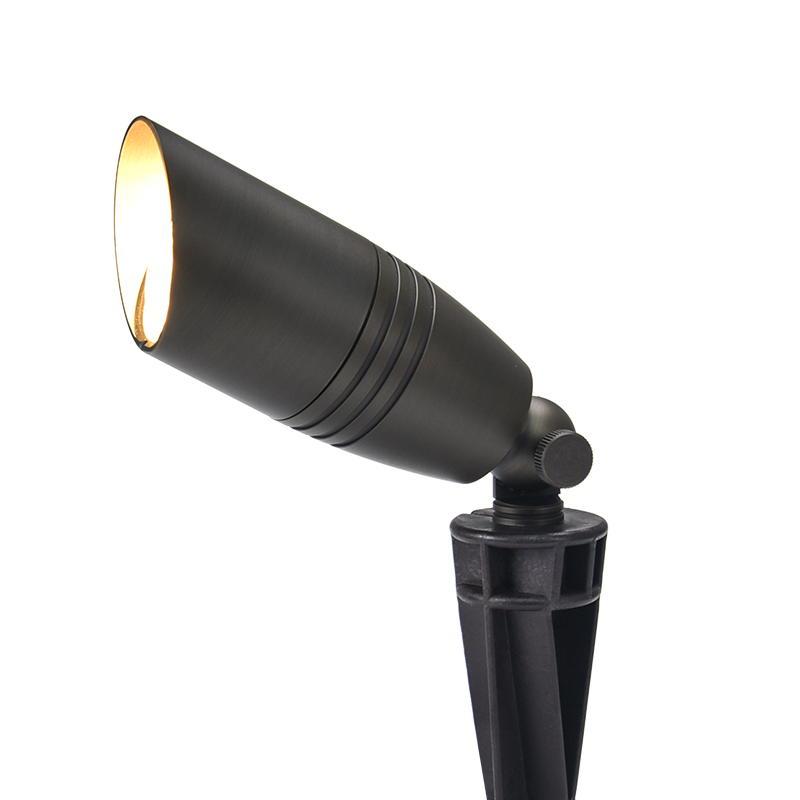

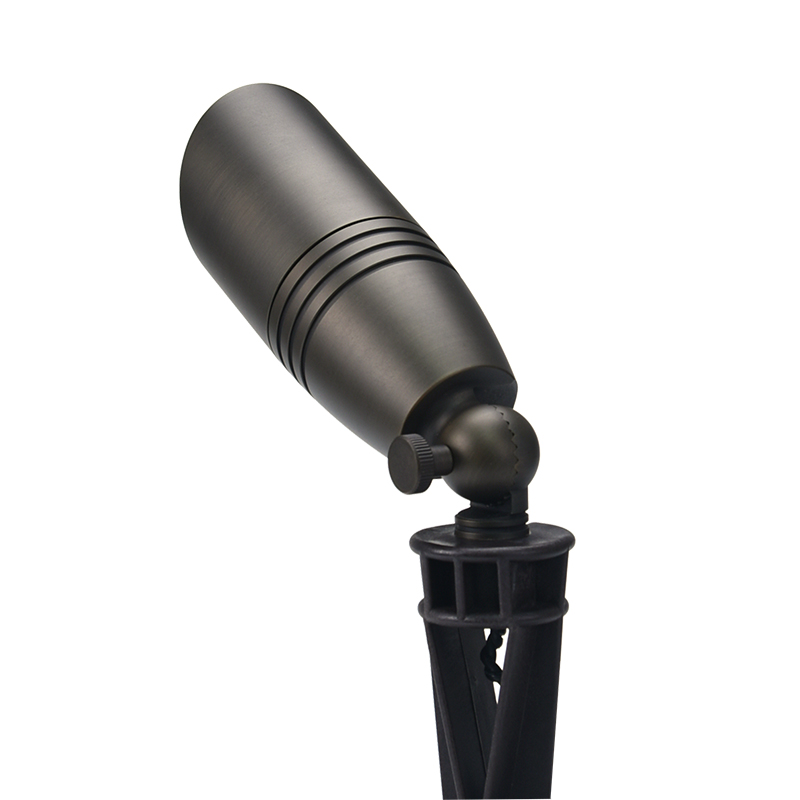

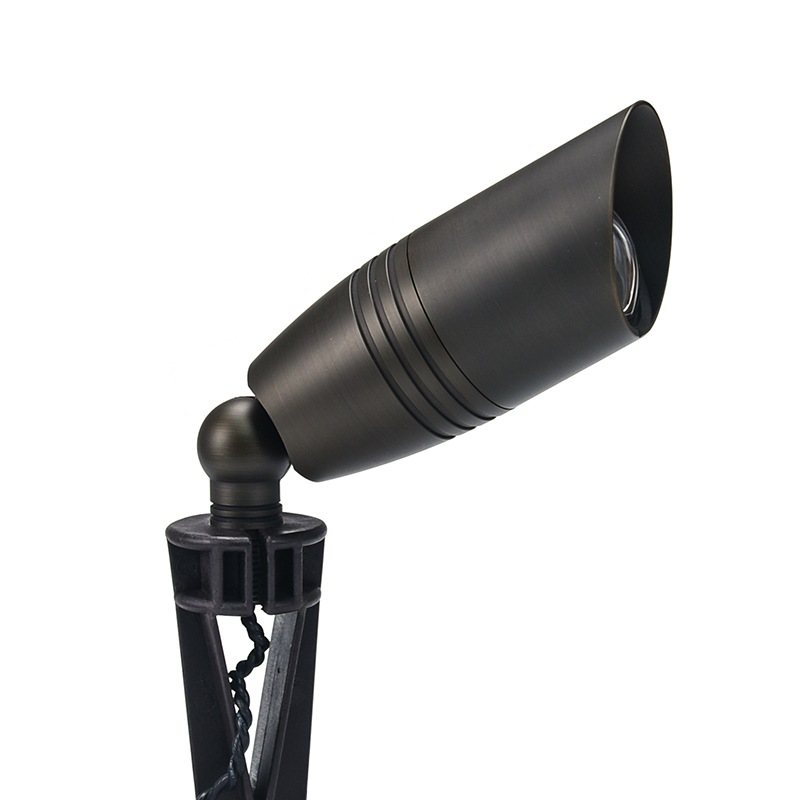

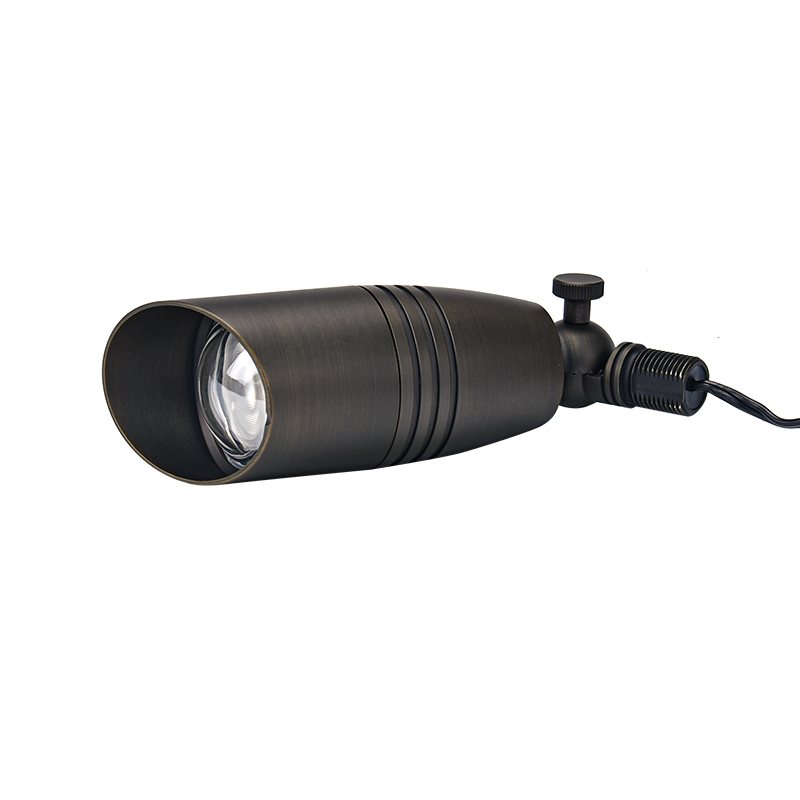

LT2505 Die Casting Brass Integrated Up Light

The LT2505 is a low-voltage integrated brass landscape spotlight designed for accent and architectural lighting applications. Its solid die-cast brass construction ensures long-term durability in outdoor environments, while adjustable output allows precise control for highlighting trees, columns, facades, and other landscape features. The integrated LED design provides reliable performance with reduced maintenance requirements.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG

Mounting: Standard 8″ ground stake (included)

More options: canopy surface mount, gutter mount, adjustable brass riser,hex louver.

Material

Finish: Antique Bronze/Gun Metal Black

Housing: Die cast brass

Knuckle: Die cast brass, Thumb Screw and knuckle for angle adjustment.

Shroud & Lens: Round convex clear glass

Optional Lenses: Frosted lens, hex louver.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2505
In put Voltage	9-17V AC/DC
Lighting source	Integrated
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage	3-12W adjustable
Output Lumens	240-840LM
Beam Angle	38°/60°
Color Temperature (CCT)	2700-6000K(Optional)
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	9.4×4.7×3″
Gross Weight	0.85 KG
Warranty	Surface 10 Years. Structure Lifetime
Features

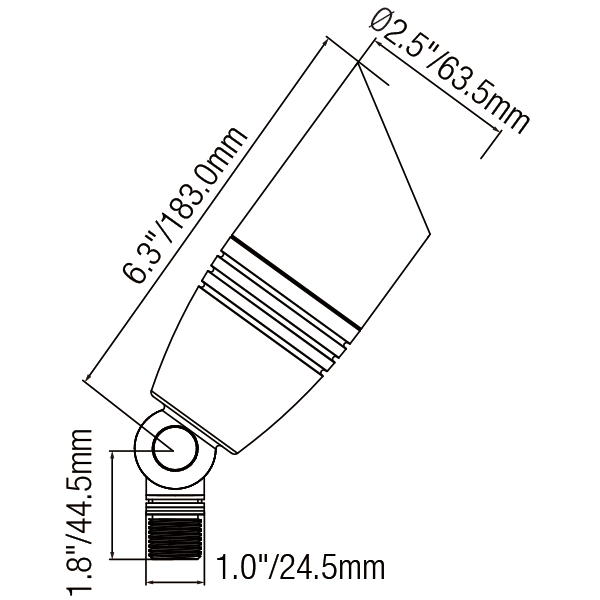

Dimensions

Photometrics

LT403 Hex Louvre

LT402A Brass Surface Mount

LT406-Brass Riser

LT402E Brass Tree Mount

LT2505 specification sheet
