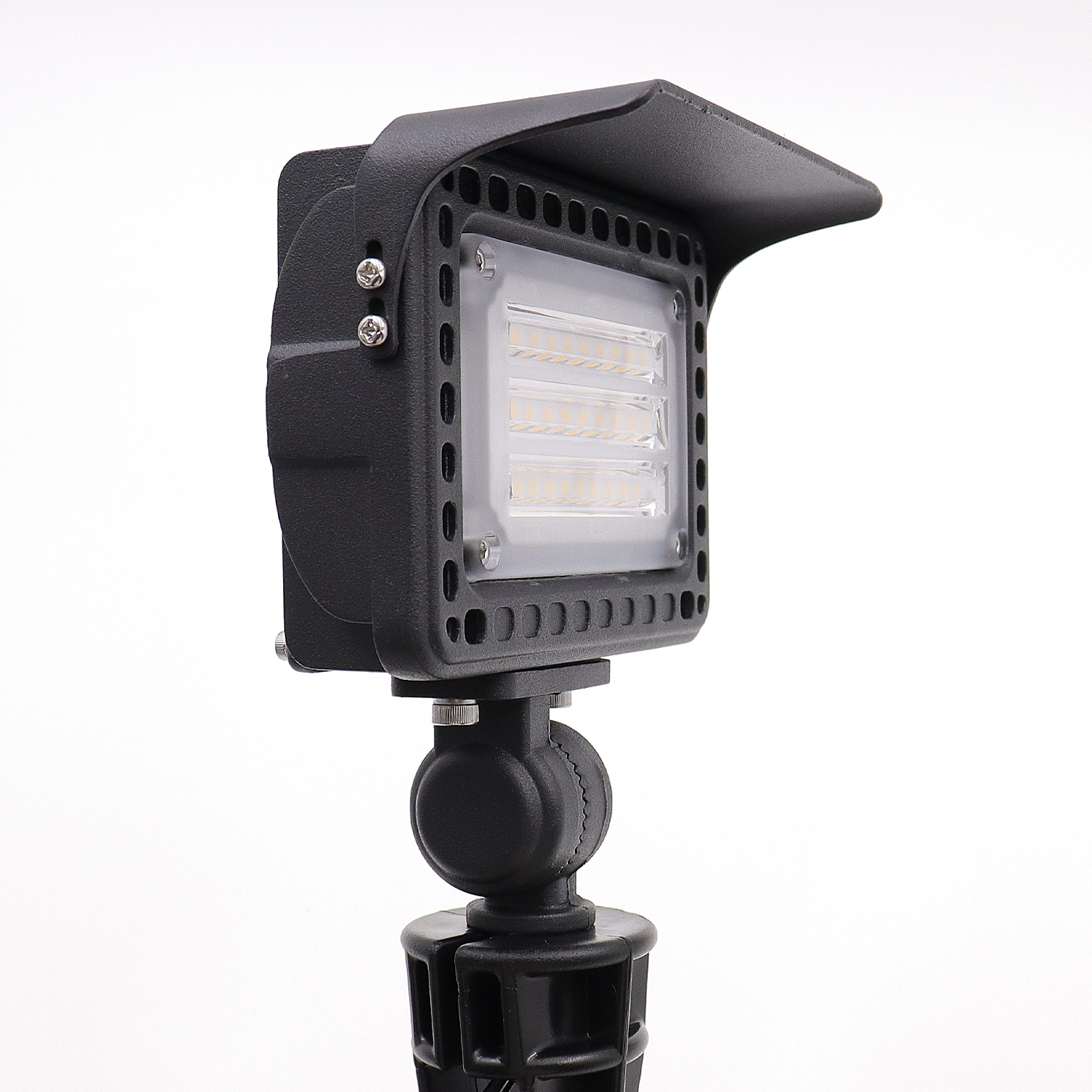

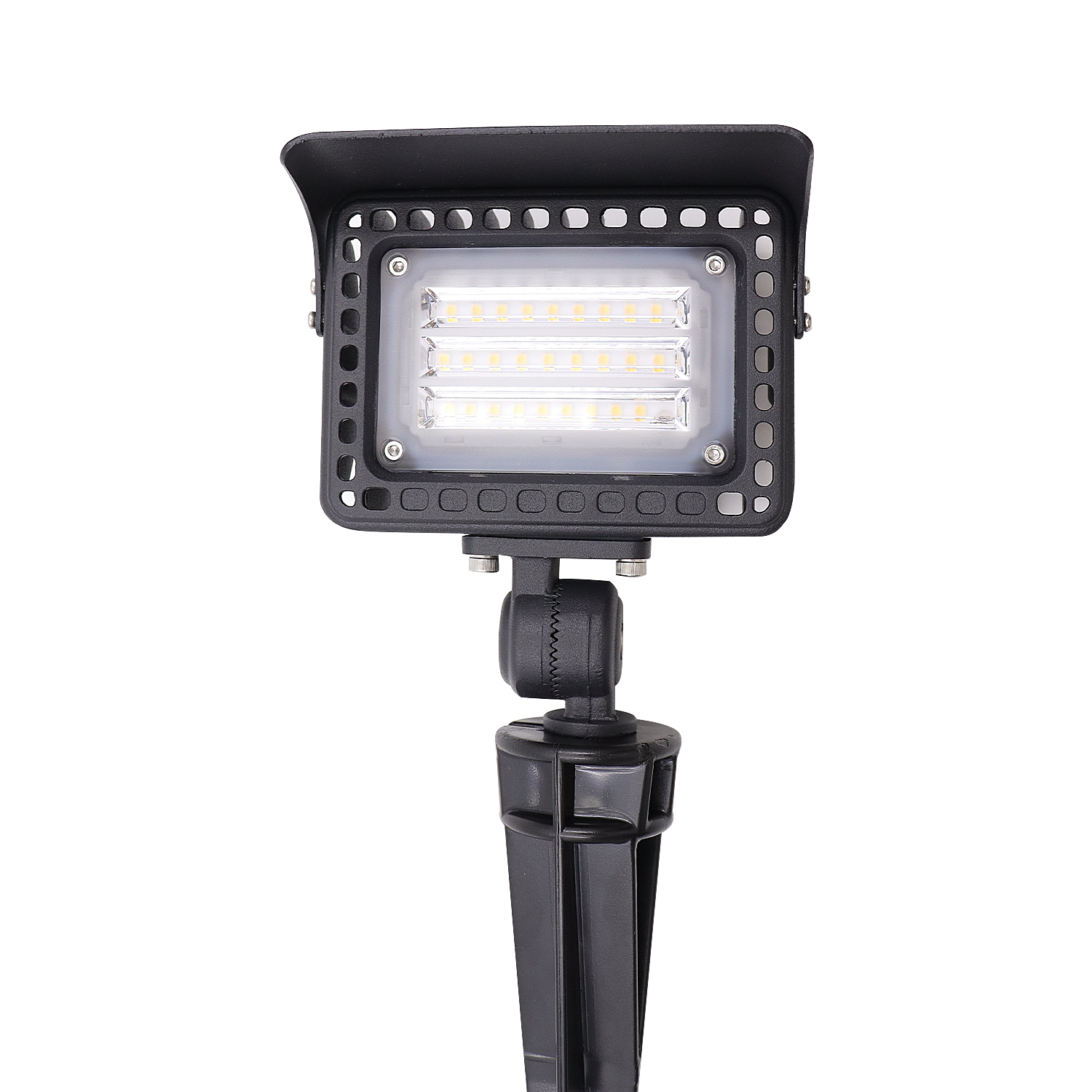

LT2507 Die Cast Aluminum Integrated Wattage and Color Temperature Adjustable Flood Light

The LT2507 series is a low-voltage die-cast aluminum integrated flood light designed for outdoor landscape lighting. It comes in four versions with different wattage and color temperature options, offering flexible choices for various applications. With a durable housing and broad beam coverage, the series is suitable for walls, gardens, facades, and other outdoor spaces.

Mounting / Installation

Lead Wire: 48″ (1.2 meters) Spt-1W, 18AWG

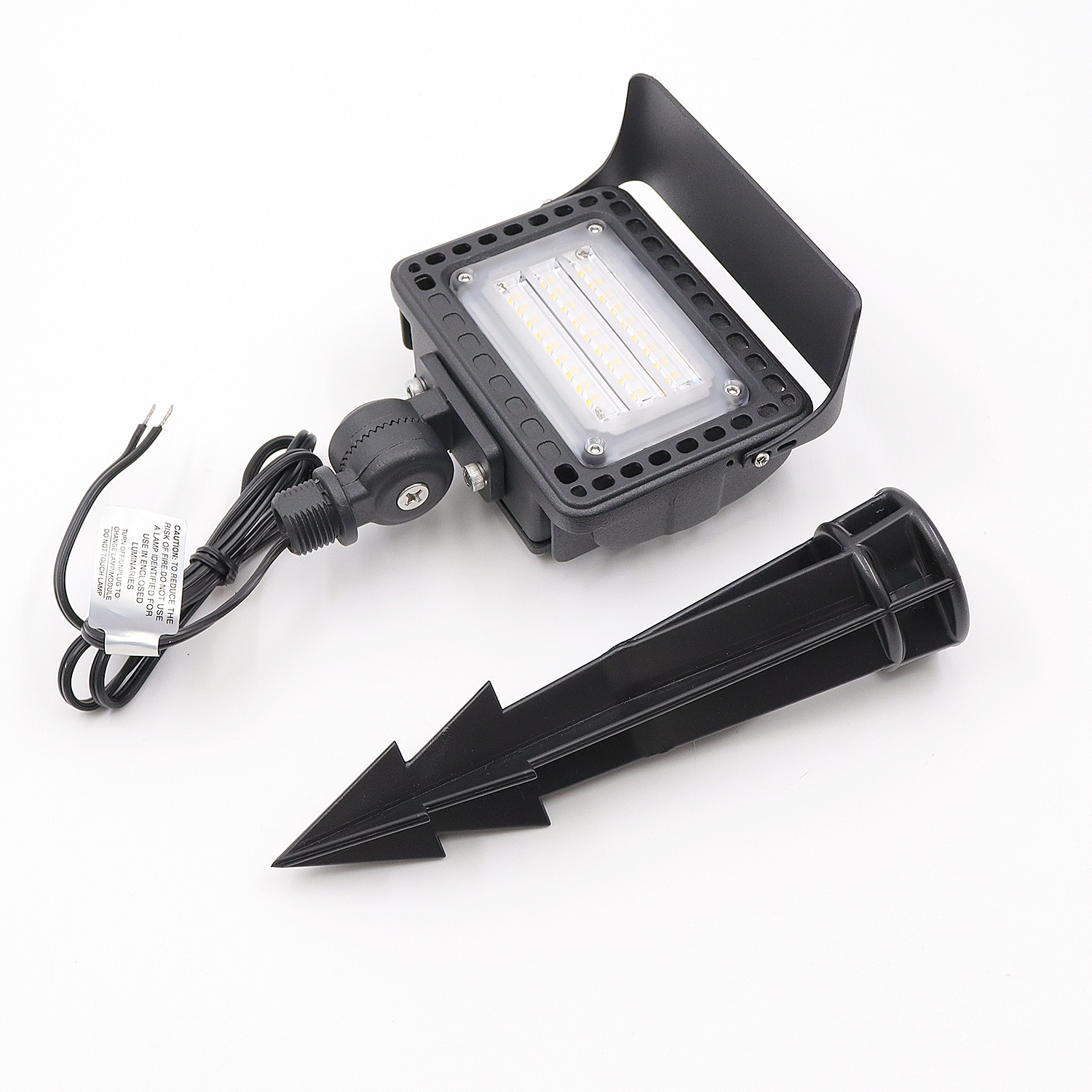

Mounting: Standard 8″ ground stake (included)

Material

Finish: Powder coating

Color: Brown/Matte Black

Housing: Die cast aluminum

Knuckle: Die cast brass, Thumb Screw and knuckle for angle adjustment.

Shroud & Lens: Angle adjustable shround for glare guard.

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2507A	LT2507B	LT2507C	LT2507D
In put Voltage	9-17V AC/DC
Lighting source	Integrated
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage:	7/12/20W options	40W	5W/10W/15W/20W	20/25/30/35/40W

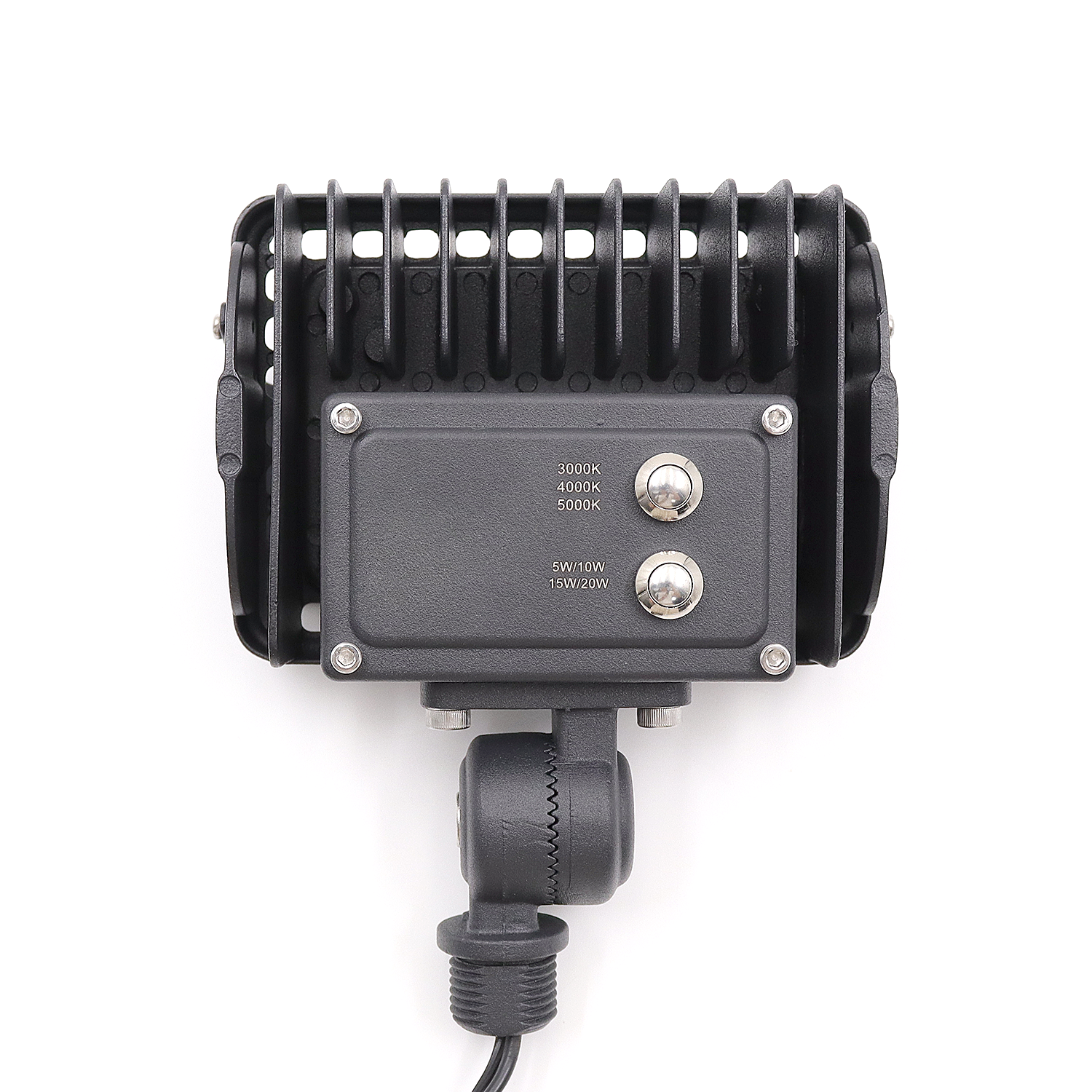

Wattage Adjustable:	N/A	N/A	By Button	By Button
Output Lumens	670/1120/1800LM	3400LM	455/880/1310/1700LM	1700/2000/2400/2700/3200LM
Beam Angle	160′
Color Temperature (CCT)	2700K-6000K(Optional)	2700K-6000K(Optional)	3000/4000/5000K	3000/4000/5000K
CCT Tunable	N/A	N/A	By Button	By Button
Color Rendering Index (Ra)	85
Working Temperature	-45’C – +45’C
Water Proof	IP65
Certifications	ETL
Package Size	7.6″×8.5″×2.3″	10″×8.5″×2.4″	10″×8.5″×2.4″	10″×8.5″×2.4″
Gross Weight	0.75KG	1.2KG	1.2KG	1.2KG
Warranty	5 Years

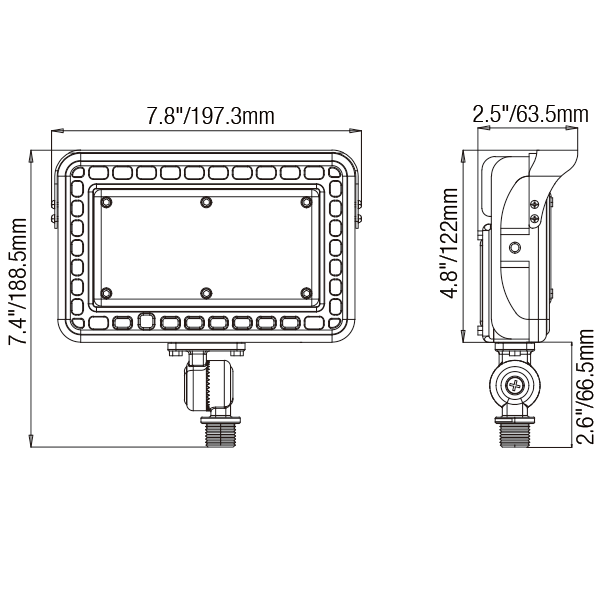

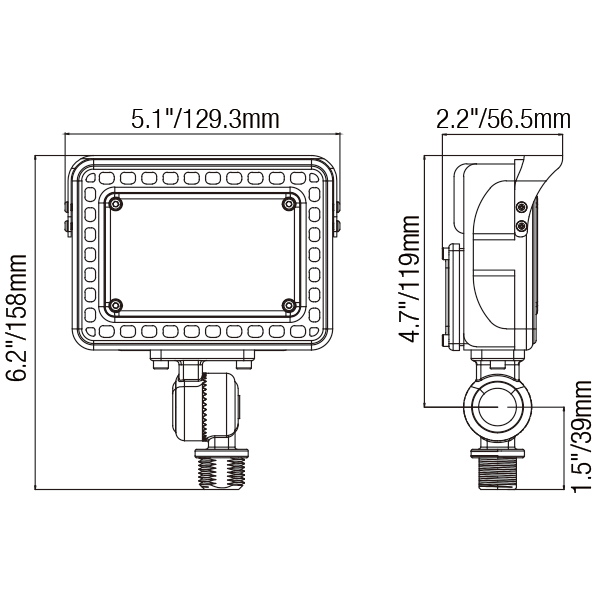

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT2507A specification sheet

LT2507B specification sheet

LT2507C specification sheet

LT2507D specification sheet
