LT2602S Die Cast Brass Down Cylinder Wall Light

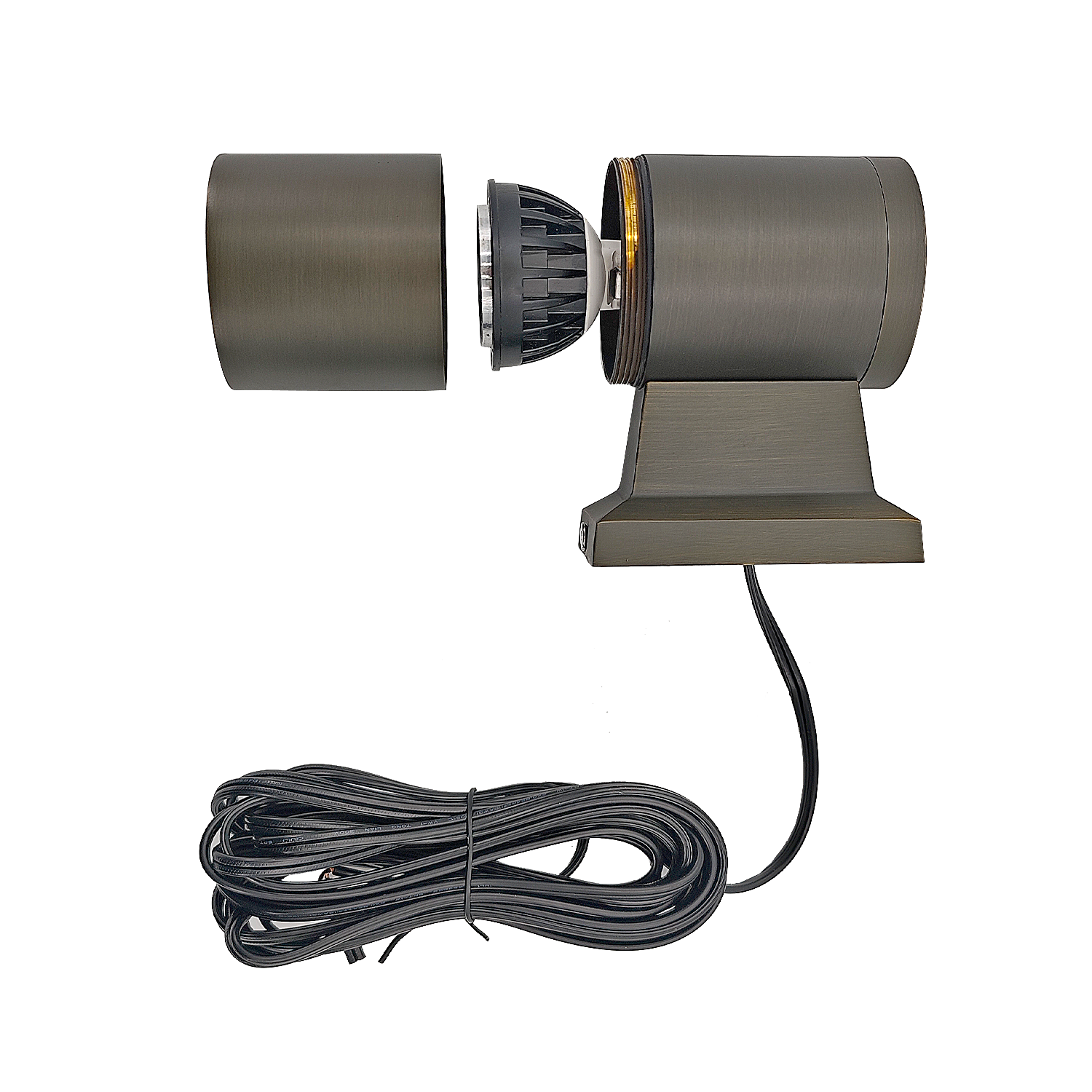

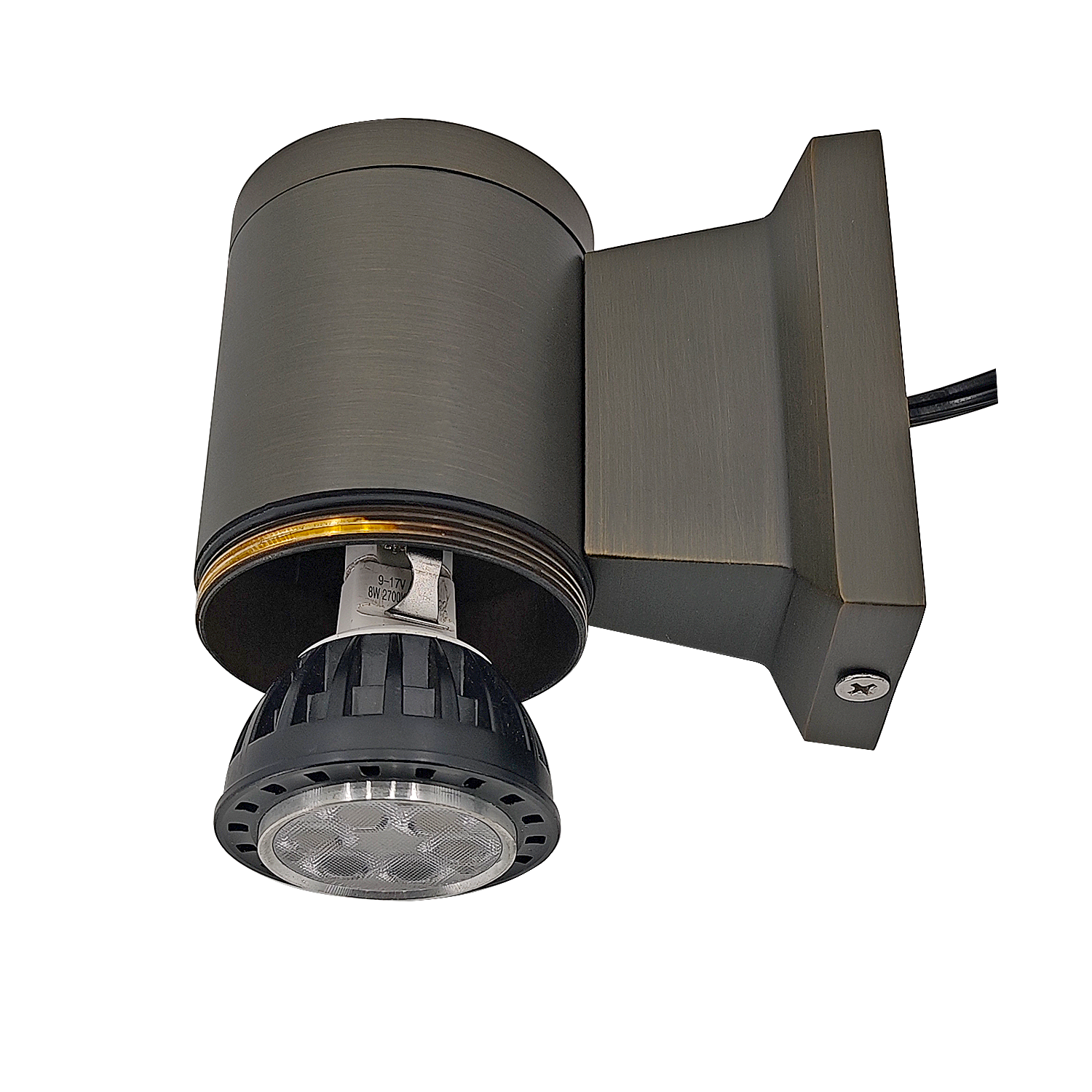

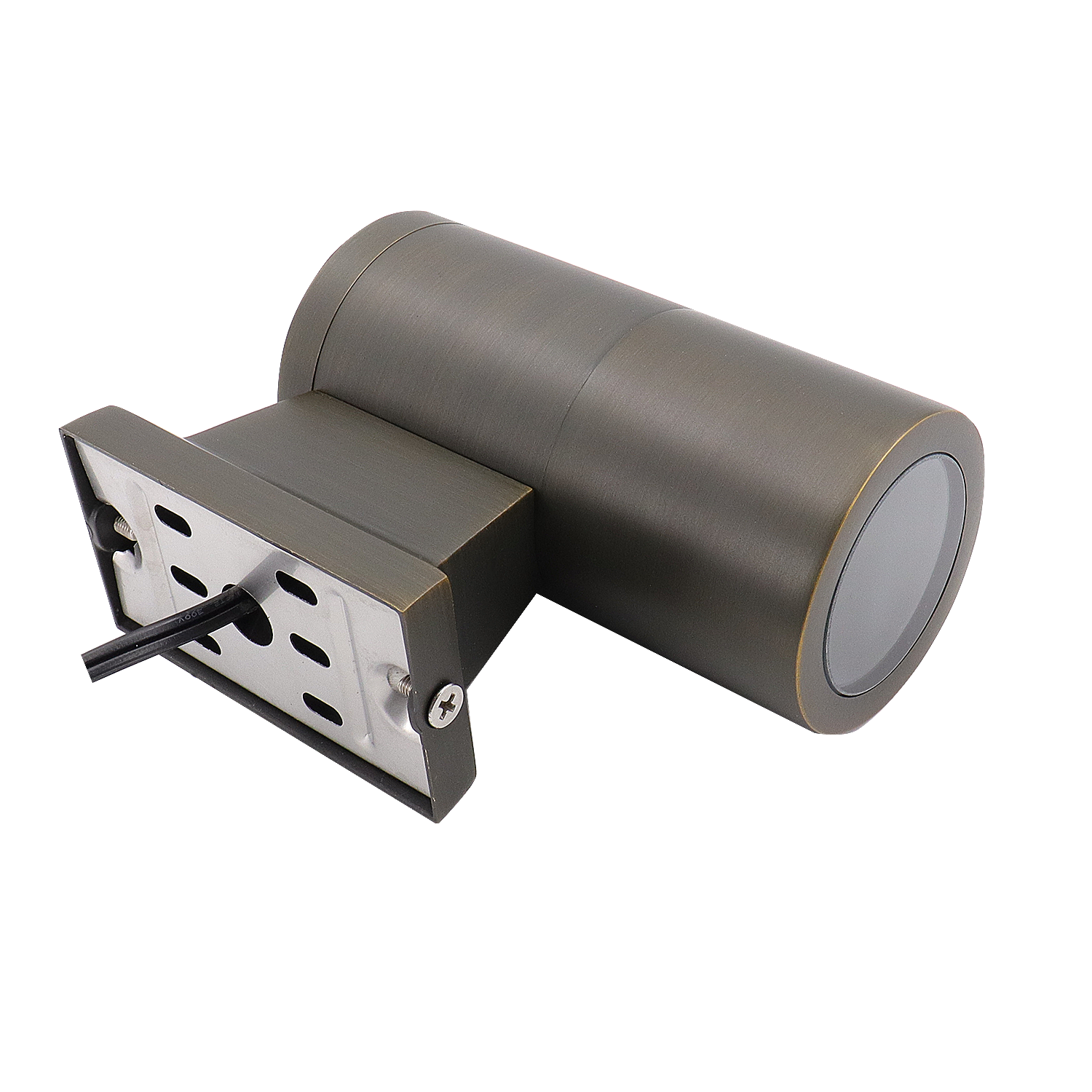

The LT2602S is a compact low-voltage brass wall sconce designed for focused downward lighting on entryways, columns, and architectural surfaces. Its cylindrical housing accommodates a single MR16 lamp behind a recessed clear glass lens to provide controlled illumination with reduced glare. The solid die-cast brass construction features an antique bronze finish for long-term outdoor durability, while the integrated mounting design allows secure surface installation.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG

Mounting: Smaller (2”) mounting bracket allows for more mounting solutions, including lanai cage posts

Material

Finish: Antique Bronze/Gun Metal Black/Matte Black

Construction: Die cast brass

Lens: Clear flat glass

Scoket: Fixed GU 5.3 bi pin socket

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2602S
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	7.5″×5.5″×3″
Gross Weight	0.93kg
Warranty	Surface 10 years, Structure Lifetime
Features

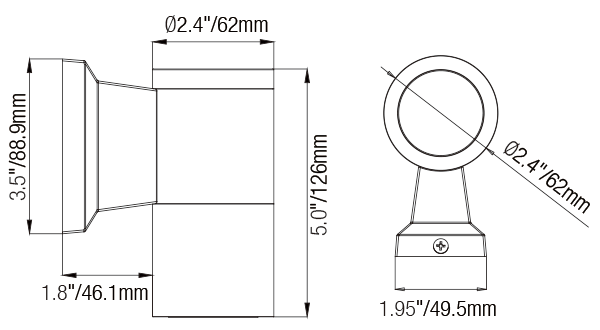

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT2602S specification sheet
