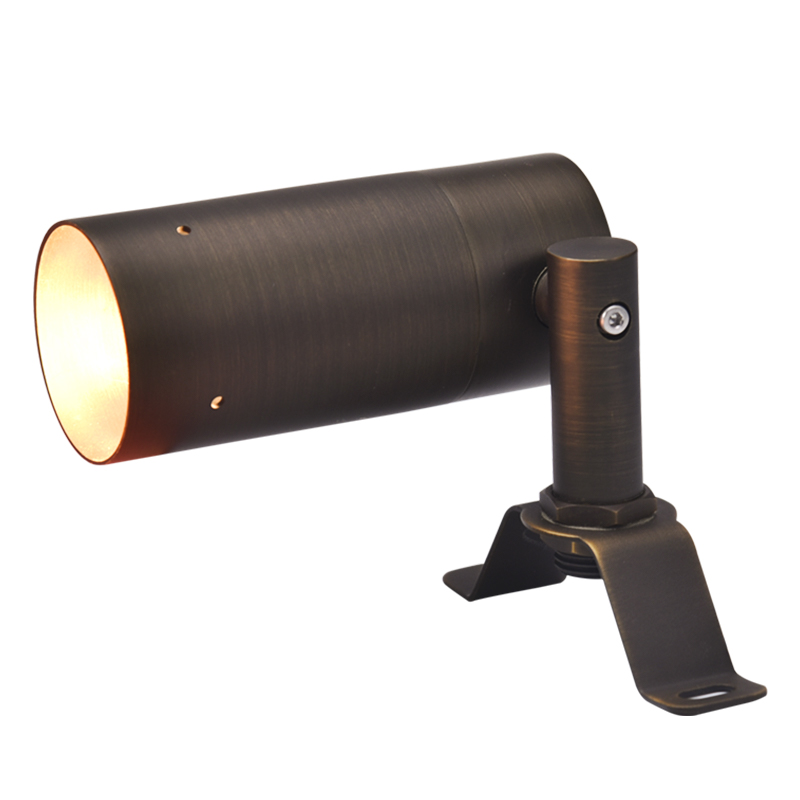

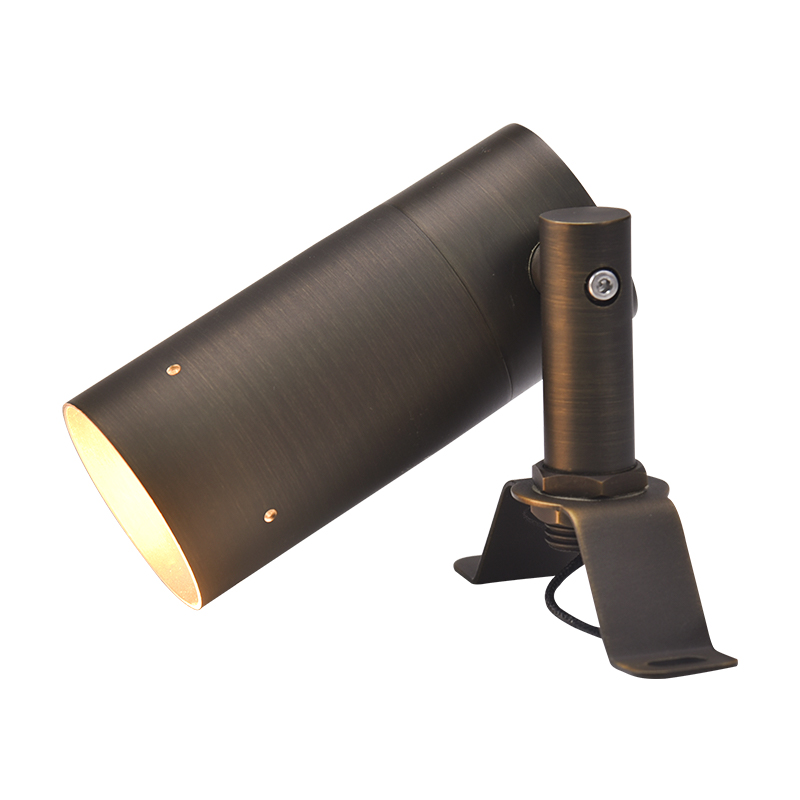

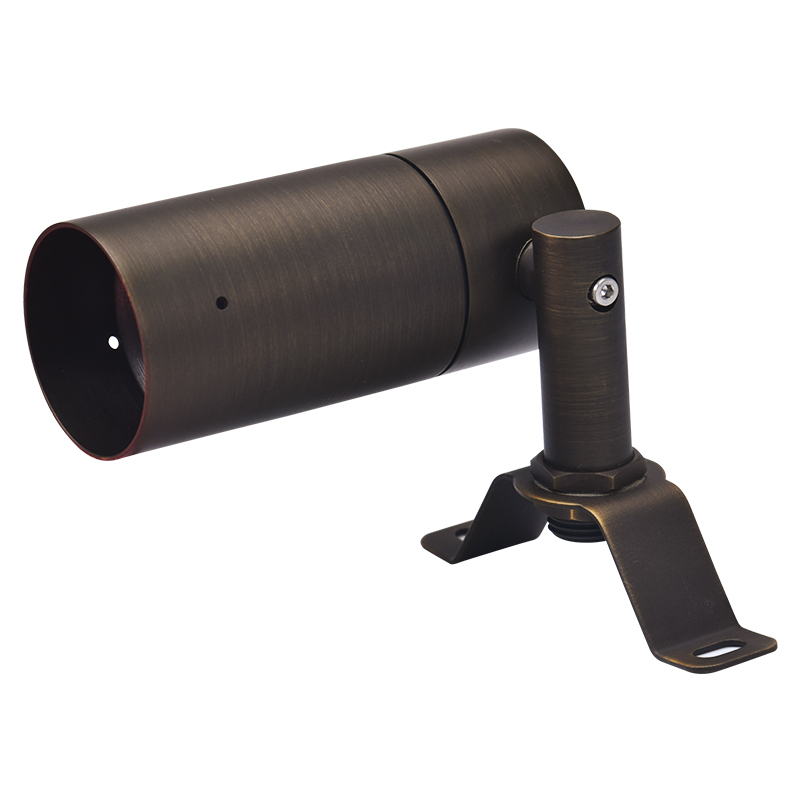

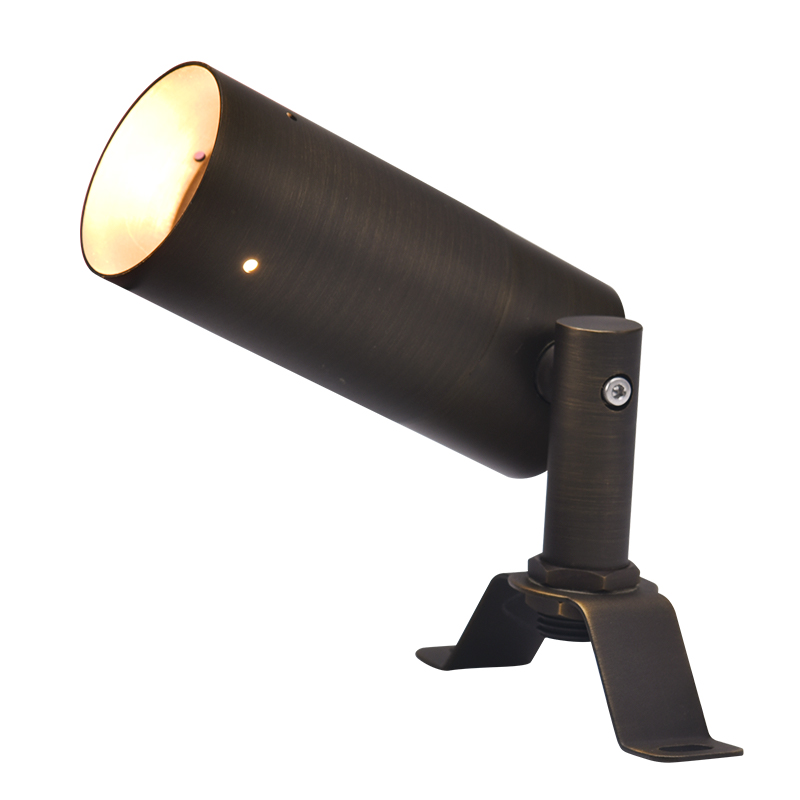

LT2603 Die Cast Brass Down Light

The LT2603 is a low-voltage landscape downlight made from die-cast brass with an antique bronze finish. Designed for moonlighting applications, it works well when mounted in trees or under architectural overhangs to provide directional illumination. It features an MR16 lamp socket supporting up to 50W, a clear flat glass lens, a 72-inch lead wire, and a brass mounting knuckle for secure installation and adjustable aiming.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG.

Mounting:

More options: canopy surface mount, gutter mount, adjustable brass riser,hex louver.

Material

Finish: Antique Bronze/Gun Metal Black/ Matte Black

Material: Die cast brass body

Lens: Clear flat glass

Scoket: Sockets are pre-greased with dielectric grease

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2603
In put Voltage	9-17V AC/DC
Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Beam Angle	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	7.9″×5.5″×2.4″
Gross Weight	0.89 KG
Warranty	Surface 5 years, Structure Lifetime
Features

Dimensions

Photometrics

LT407D Digtal Timer

LT405 Wire Connectors

LT2603 specification sheet
