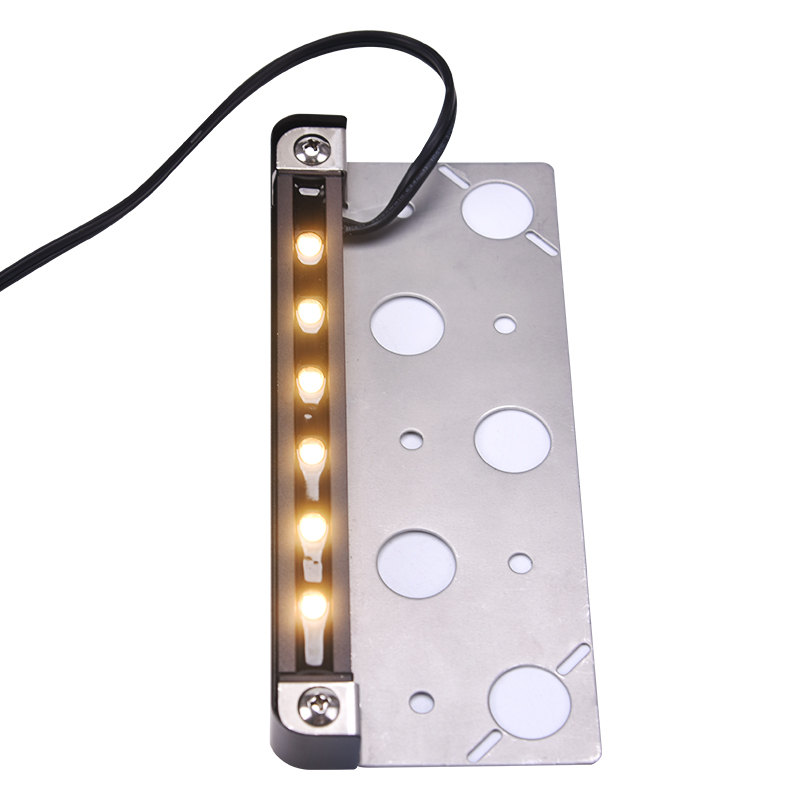

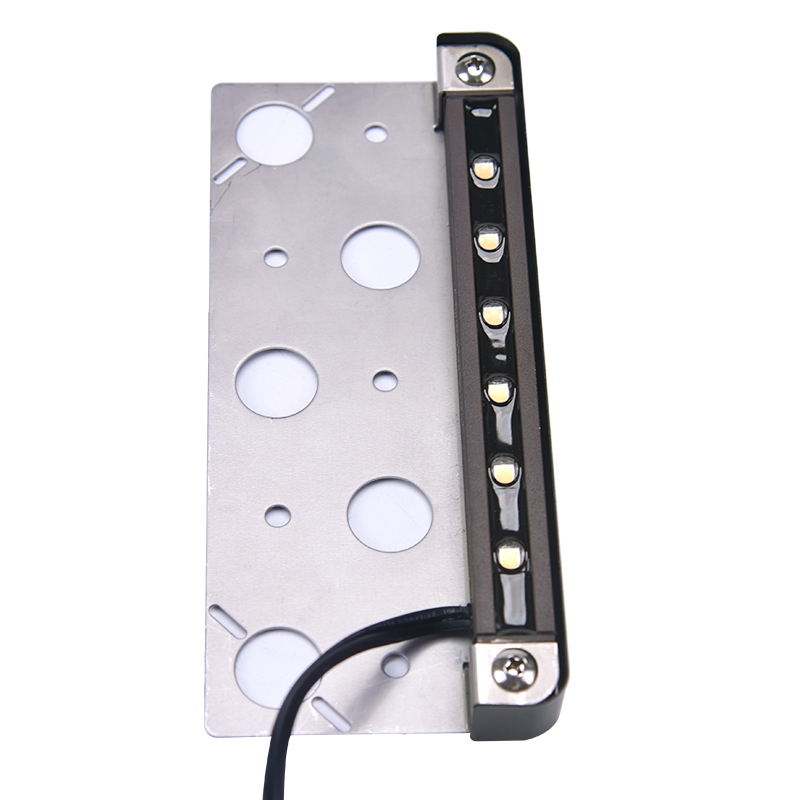

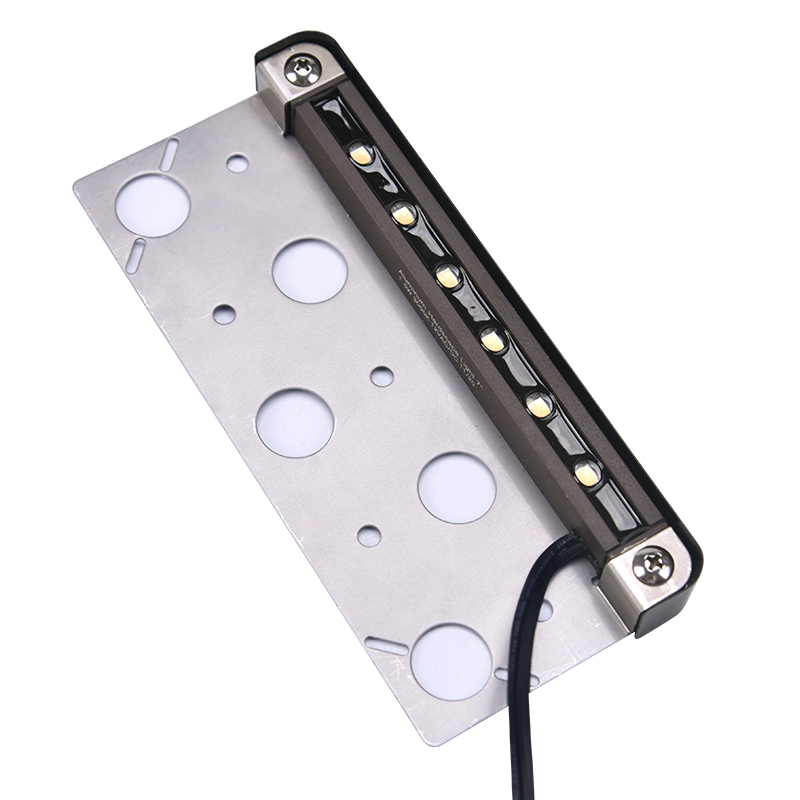

LT2702B 7 Inch Die Cast Aluminum Hardscape Light

The LT2702B is a 7-inch hardscape light designed for everyday landscape lighting applications. Part of the proven LT TECH 2702 series, it delivers reliable illumination for retaining walls, steps, pillars, and other masonry features. The durable die-cast aluminum housing is built for long-term outdoor use, while the streamlined design integrates cleanly into a wide range of hardscape installations.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG

Mounting: Three staineless steel brackets in different sizes for easy attachment in mansory wall, step or under capstones

Length options: LT2702A – 3″/LT2702B – 7″/LT2702C – 13″

Material

Finish: Brown Luminaire and Black Anti-glare Cover

Construction: Die cast aluminum

Mounting: Stainless steel

Lens: Frosted polycarbonate lens

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2702A	LT2702B	LT2702C
Length	3″	7″	13″
In put Voltage	9-17V AC/DC	9-17V AC/DC	9-17V AC/DC
Wattage	0.5W	1.5W	2.5W
Output Lumens	50LM	160LM	240LM
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Color Temperature (CCT)	2700-6000K	2700-6000K	2700-6000K
Certifications	ETL	ETL	ETL
Package Size	7.6″×3.2″×1.1″	7.6″×3.2″×1.1″	13.5″×3.2″×1.1″
Gross Weight	0.2 KG	0.31 KG	0.52 KG
Warranty	5 years	5 years	5 years
Features

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT2702B specification sheet

Related Products

LT9101 Die Cast Aluminum integrated RGBWW CCT Tunable Smart Up Light

The LT9101 is a 12V smart landscape spotlight featuring a die-cast aluminum housing, clear flat glass lens, and integrated LED technology. Available in three configurations (A/B/C), it offers adjustable output from 0–8W to 0–12W with a maximum lumen output of 1020 lm. Bluetooth, WiFi, and onboard controls allow convenient dimming and fixture setup. An IP65-rated construction ensures dependable outdoor performance in residential landscape applications.

GET A QUOTE PRODUCT OVERVIEW

LT2105A Die-Cast Aluminum Low Voltage Landscape Spotlight

The LT2105A features heavy-duty die-cast aluminum construction with an oil rubbed bronze (ORB) powder coating for enhanced corrosion resistance. The landscape spotlight incorporates a straight-cut shroud to shield the internal lens and minimize glare. Engineered as a high-performance landscape up light, the adjustable threaded knuckle enables precise vertical aiming for architectural facades and garden elements.

GET A QUOTE PRODUCT OVERVIEW

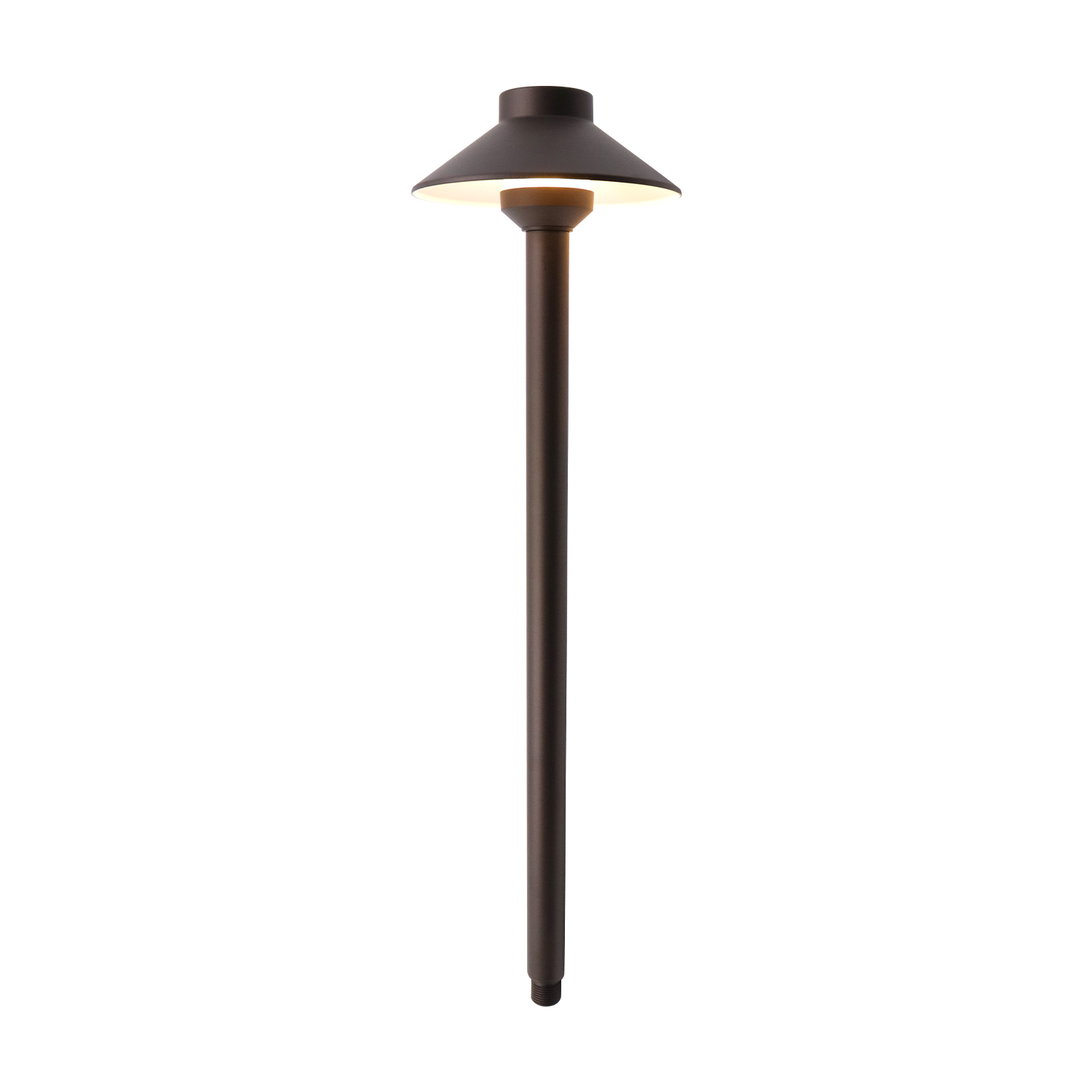

LT2401A Die Cast Aluminum G4 Path light
