LT3300 300W Multi-tap Low Voltage Transformer

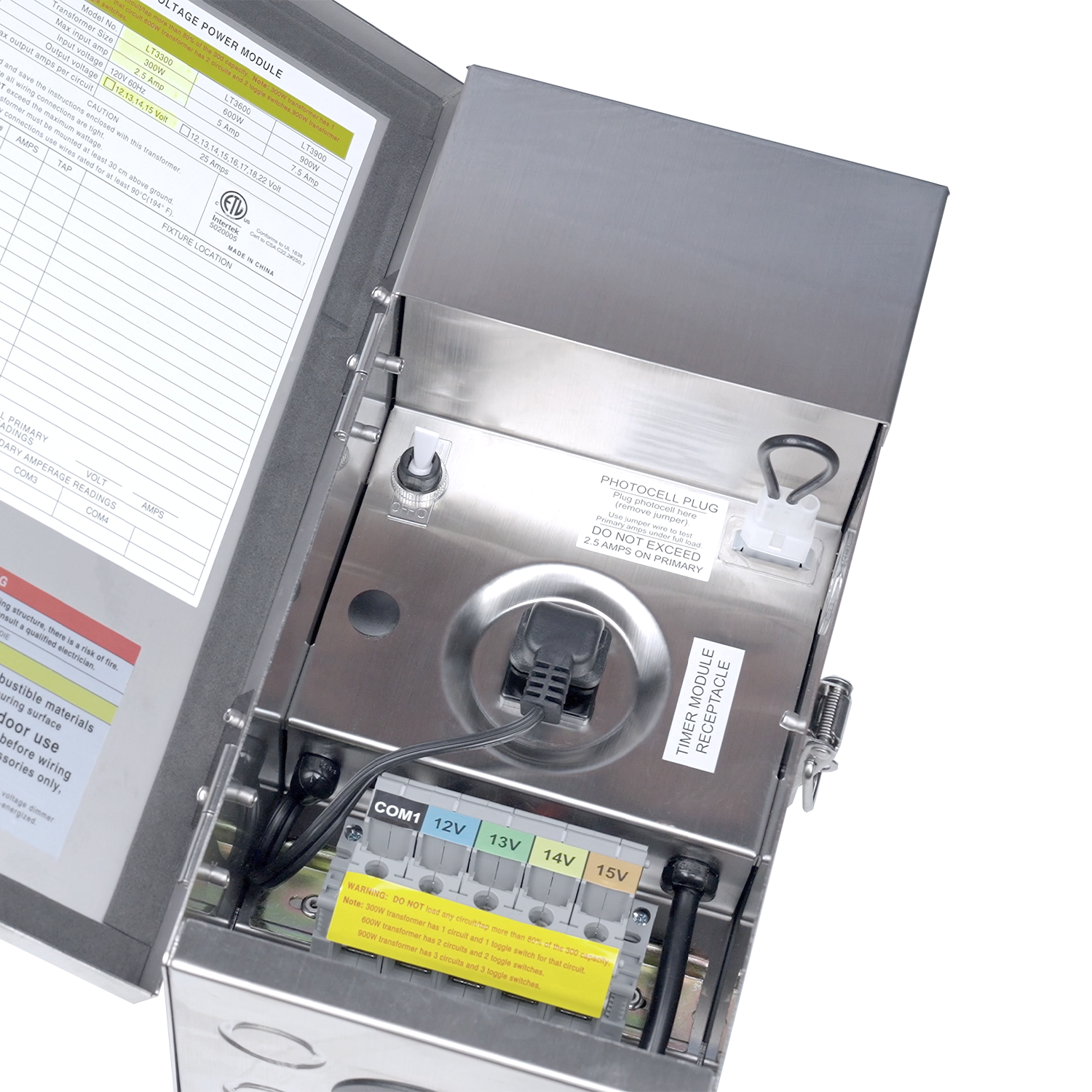

LT3300 is a 300W multi-tap low-voltage transformer built for larger landscape lighting systems with higher fixture loads and longer cable runs. The 12V/13V/14V/15V taps help installers fine-tune voltage output for consistent brightness across different lighting areas. Its clear wiring layout and outdoor-ready 304 stainless steel enclosure make installation, maintenance, and long-term power management easier for residential and commercial projects.

Features

Multi-tap Output
Durable & Weatherproof
Automatic Circuit Breaker

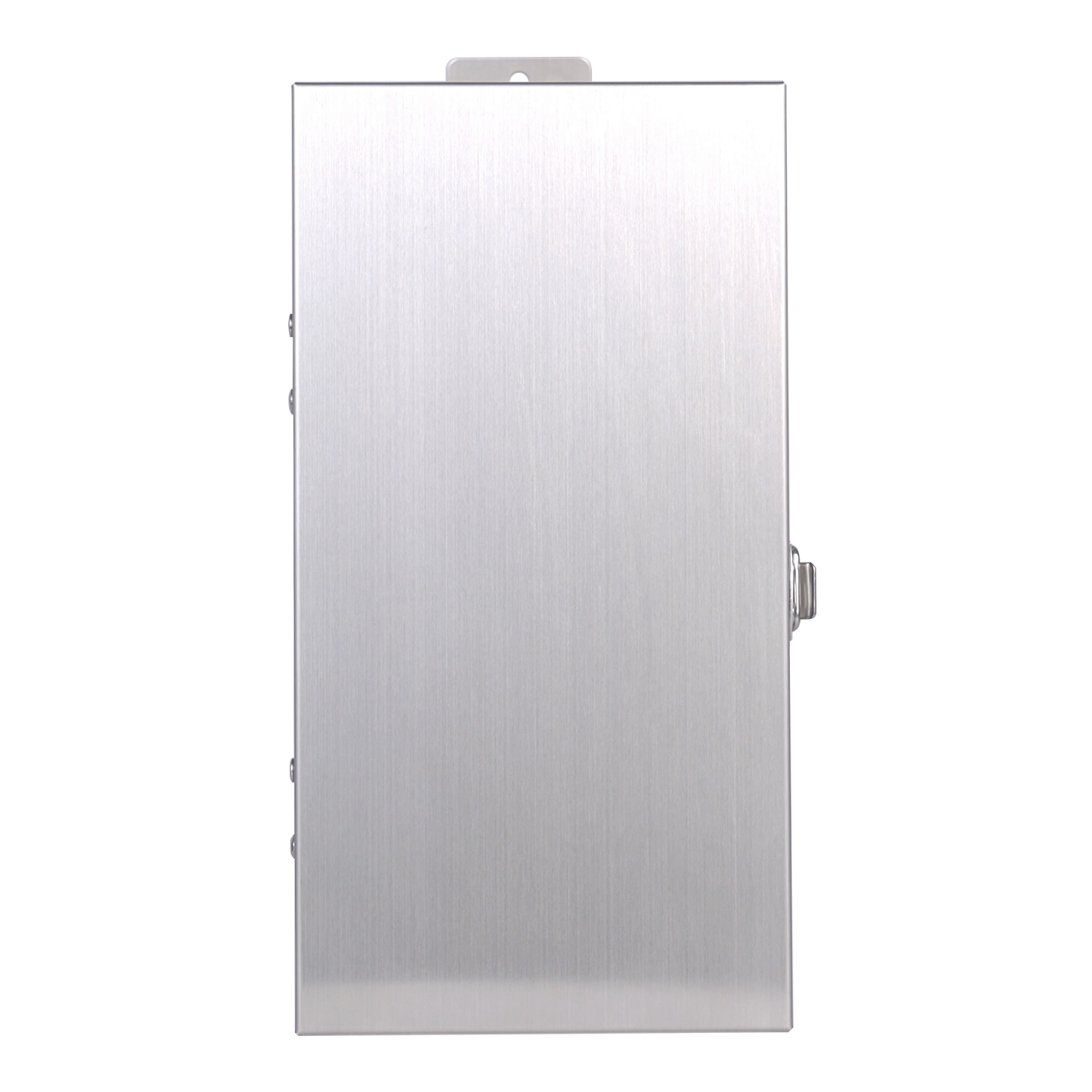

S/S Enclosure
ETL listed
Easy to Install

Material

Construction: Non-brushed 304 stainless steel
Finishes: Stainless Steel

Get a Quote

Specification Accessories Photos Video Download

P/N	LT3300
Input Voltage	120V AC
Output Voltage	12V/13V/14V/15V AC
Capacity	300W
COM Port	1
Type	Toroidal
Certifications	ETL
Water Proof	IP65
Dimension	6.1″×13.7″×5.3″
Gross Weight	8.05 KG
Warranty	Lifetime structure

Dimensions

Photometrics

LT411B-100 Low Voltage Dimmer

LT407D Digtal Timer

LT407M Mechanical Timer

LT408 photocell

LT409 Smart WIFI Socket

LT3300 specification sheet
