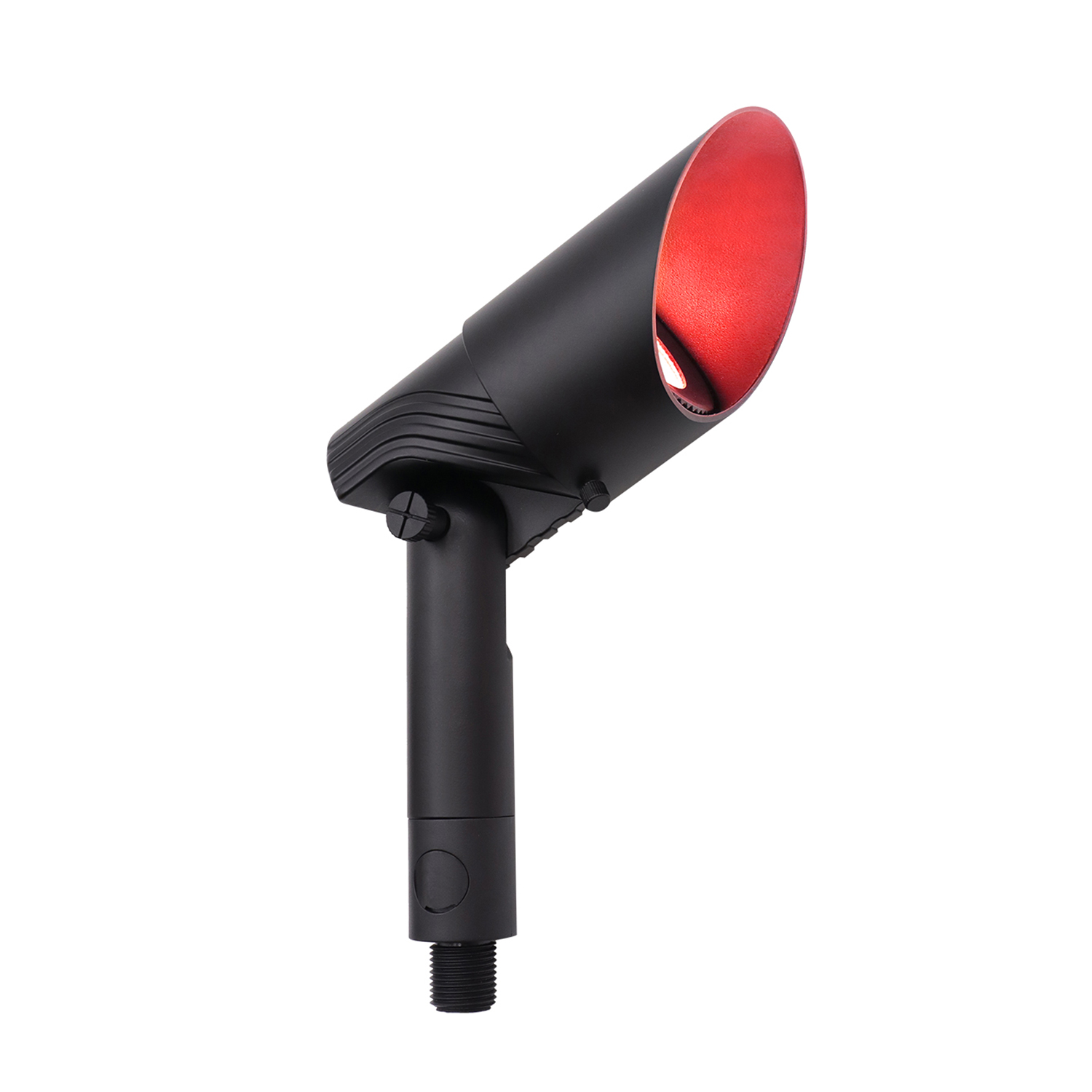

LT9101 Die Cast Aluminum integrated RGBWW CCT Tunable Smart Up Light

The LT9101 is a 12V smart landscape spotlight featuring a die-cast aluminum housing, clear flat glass lens, and integrated LED technology. Available in three configurations (A/B/C), it offers adjustable output from 0–8W to 0–12W with a maximum lumen output of 1020 lm. Bluetooth, WiFi, and onboard controls allow convenient dimming and fixture setup. An IP65-rated construction ensures dependable outdoor performance in residential landscape applications.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG.

Mounting: Standard 8″ ground stake (included)

Dimension: Body 6.1″ x  2.9″

More options: canopy surface mount, gutter mount, adjustable brass riser.

Material

Finish: ORB/Matte Black

Housing: Die cast aluminum

Knuckle: Die cast aluminum, Thumb Screw and knuckle for angle adjustment.

Shroud & Lens: Round flat clear glass

LT CERTIFICATIONS 02
Get a Quote
P/N LT9101A LT9101B LT9101C
In put Voltage 9-17V AC/DC
Wattage 0-12W 0-8W 0-8W
Lighting source Integrated
Power Supply LT Tech Low Voltage Transformer (sold separately)
Output Lumens 1020 680 680
Beam Angle option 24° /36° /60° 24° /36° /60° 24° /36° /60°
Color Temperature (CCT) 2700-6000K RGB & CCT RGB & CCT
Control Button Bluetooth WiFi
Color Rendering Index (Ra) 85
Working Temperature -45-45℃
Water Proof IP65
Certifications ETL
Package Size 9.8×10.2×3.3″
Gross Weight 1.1 KG
Warranty 5 Years
Features
Dimensions
Photometrics
