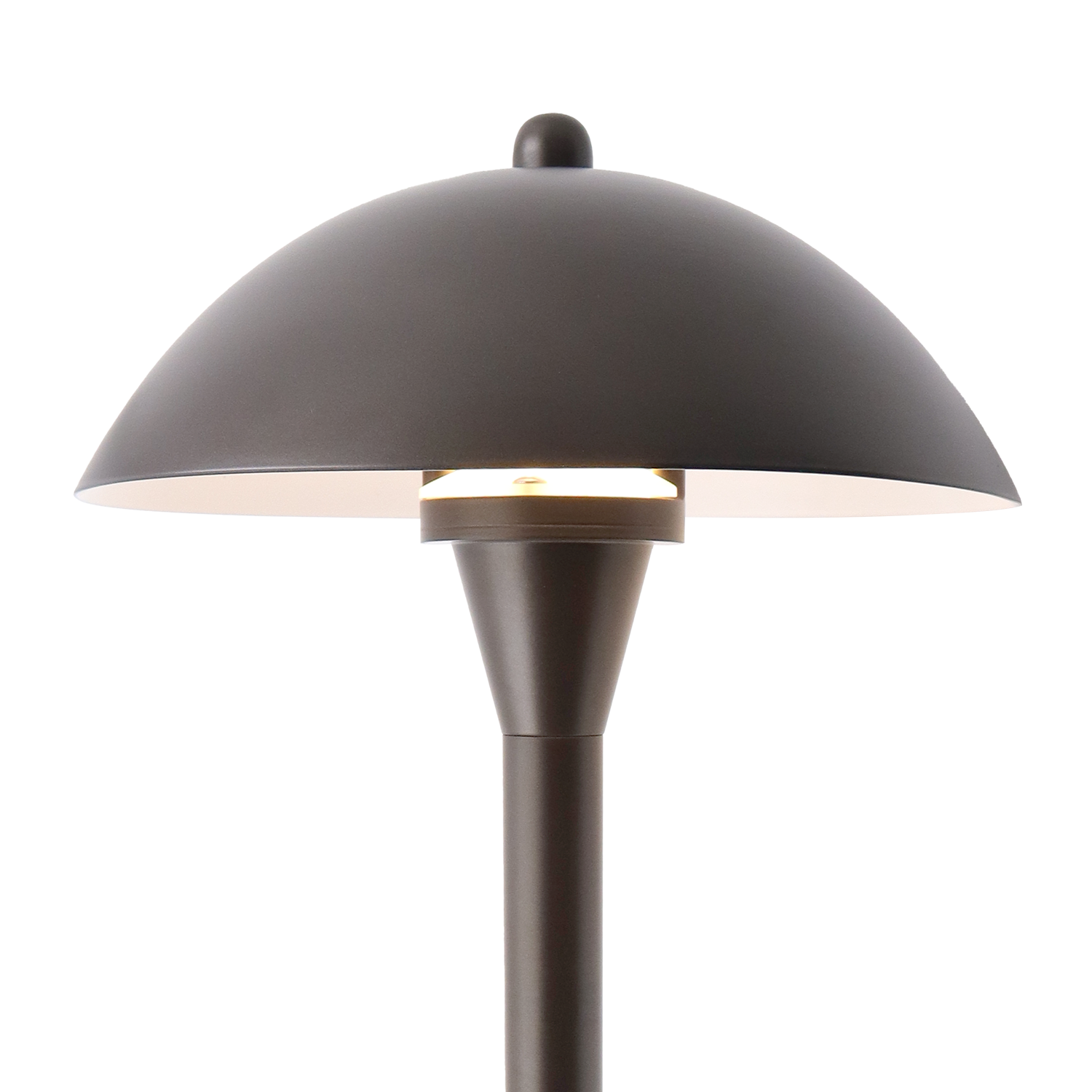

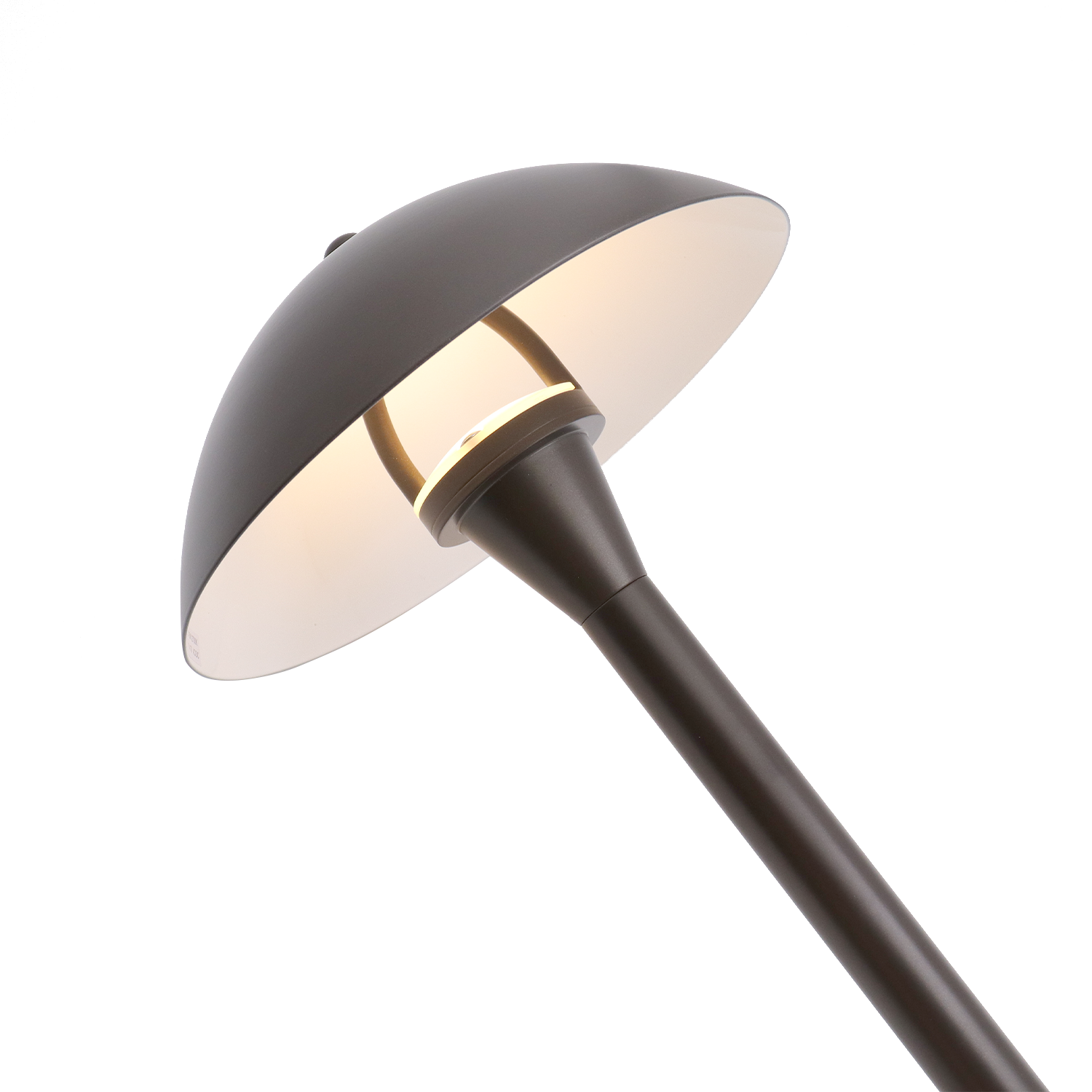

LT9402 Die Cast Aluminum Wattage Adjustable Integrated Path Light

The LT9402 low-voltage path light is constructed from durable die-cast aluminum, featuring a dome-top design that directs light downward for comfortable, glare-free pathway illumination. It includes an integrated LED with selectable wattage options (1W / 2W / 3W), allowing easy adjustment of light output to match different application needs. IP65-rated for outdoor use, this fixture delivers reliable performance in residential gardens, driveways, and patio areas.

Mounting / Installation

Lead Wire: 48″ (1.2 meters) Spt-1W, 18AWG

Mounting: Standard 8.5″ large ground stake (included)

More options: canopy surface mount, gutter mount, adjustable brass riser

Material

Finish: Powder coating

Color: ORB/Matte Black

Construction: Die cast aluminum(hat and stem)

Lens: Frosted PC

Get a Quote

Specification Accessories Photos Video Download

P/N	LT9402
In put Voltage	9-17V AC/DC
Lighting source	Integrated
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage	1/2/3W adjustable
Output Lumens	80/160/240LM
Color Temperature (CCT)	2700-6000K
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	14.4″×9.7″×3.7″
Gross Weight	1.2 KG
Warranty	5 Years, Structure Lifetime
Features

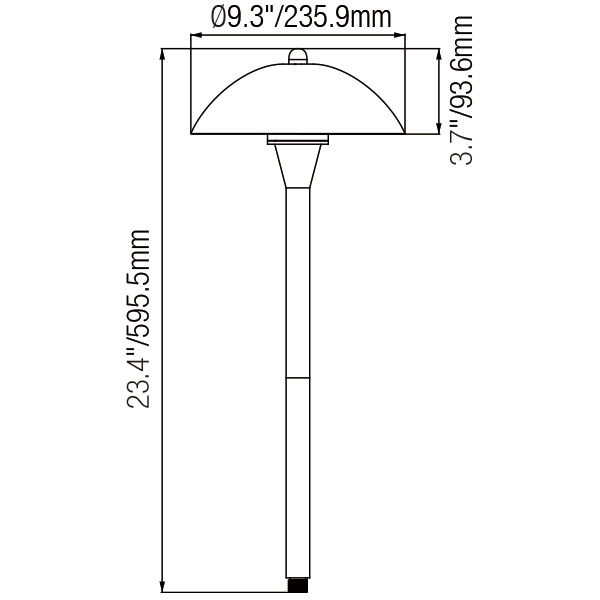

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT9402 specification sheet
