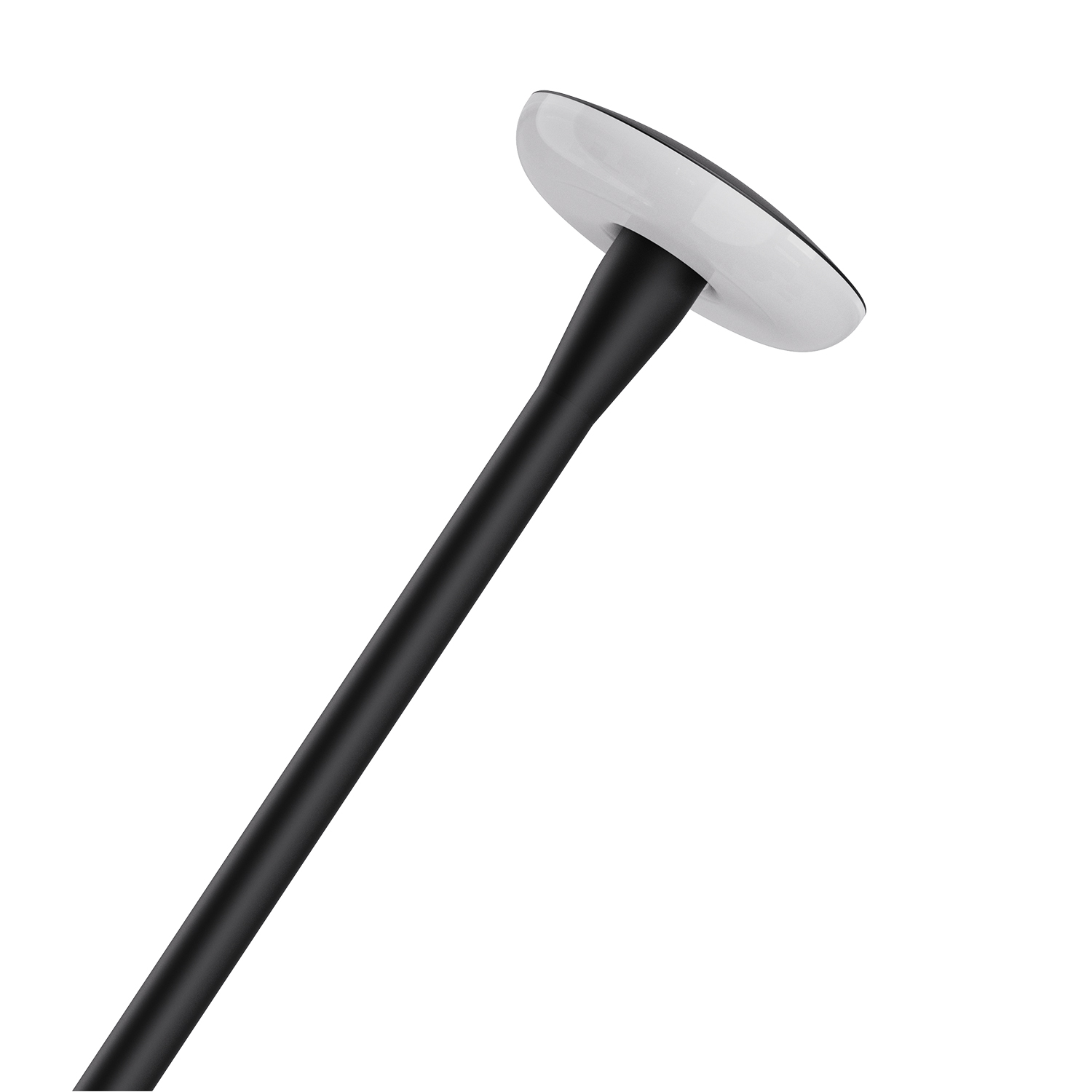

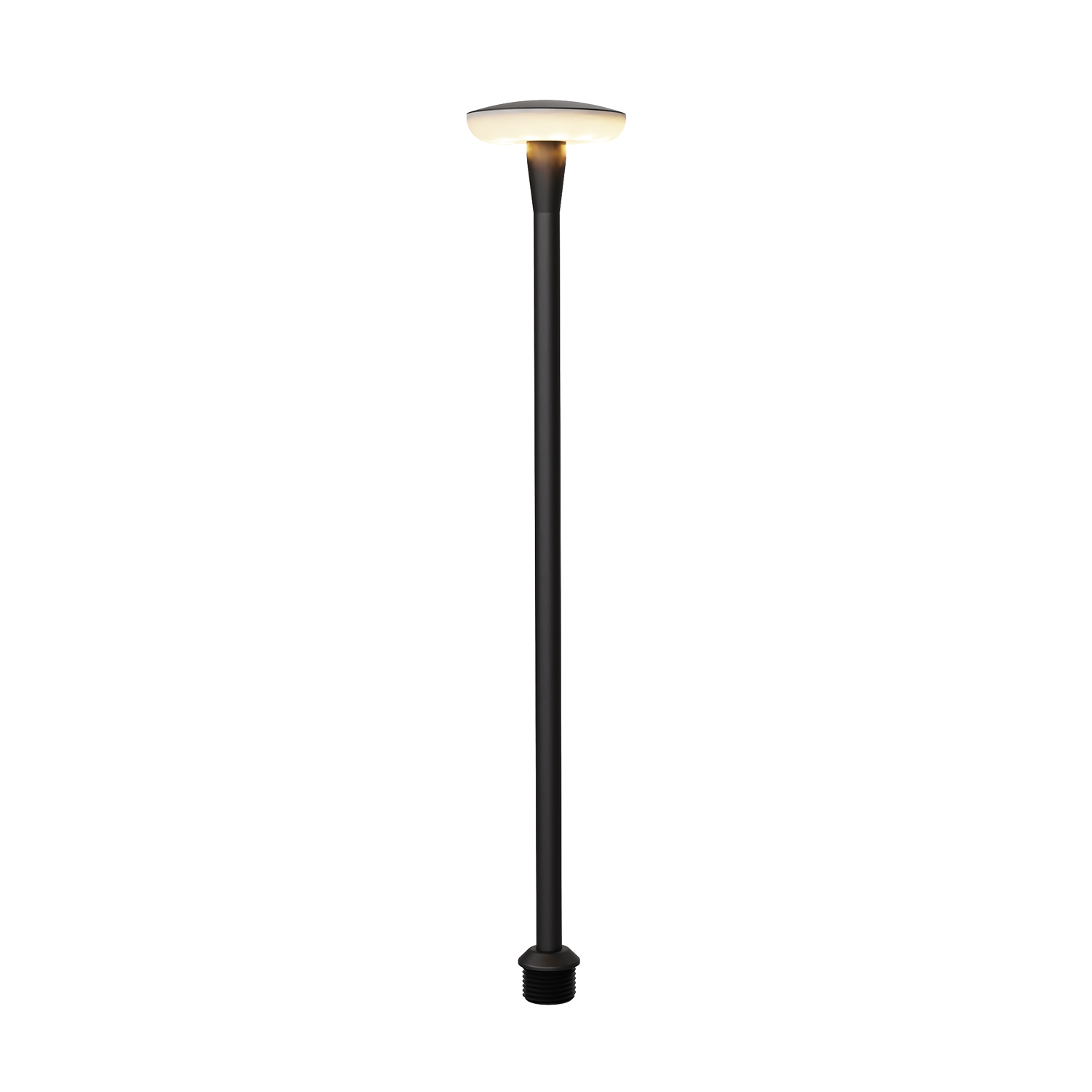

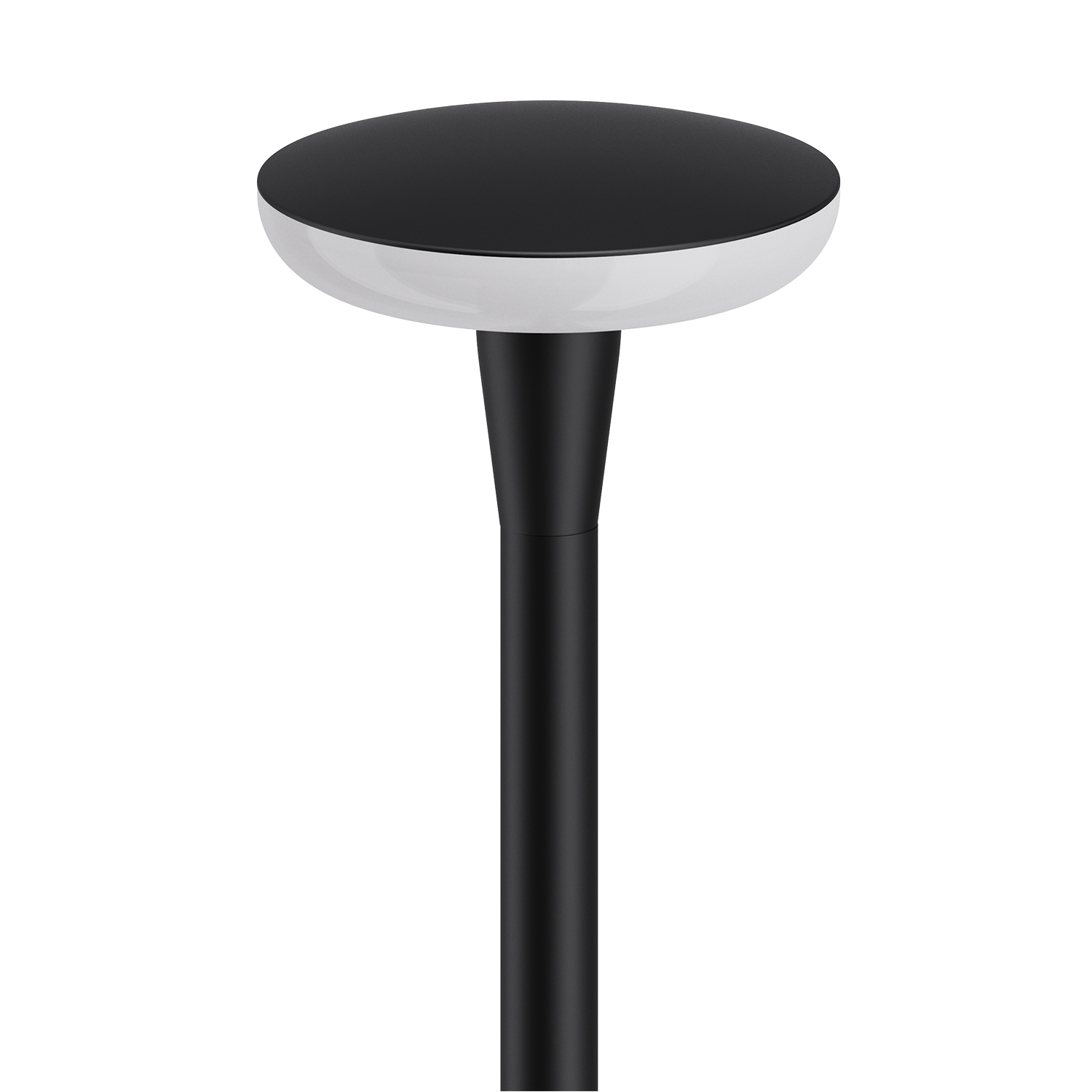

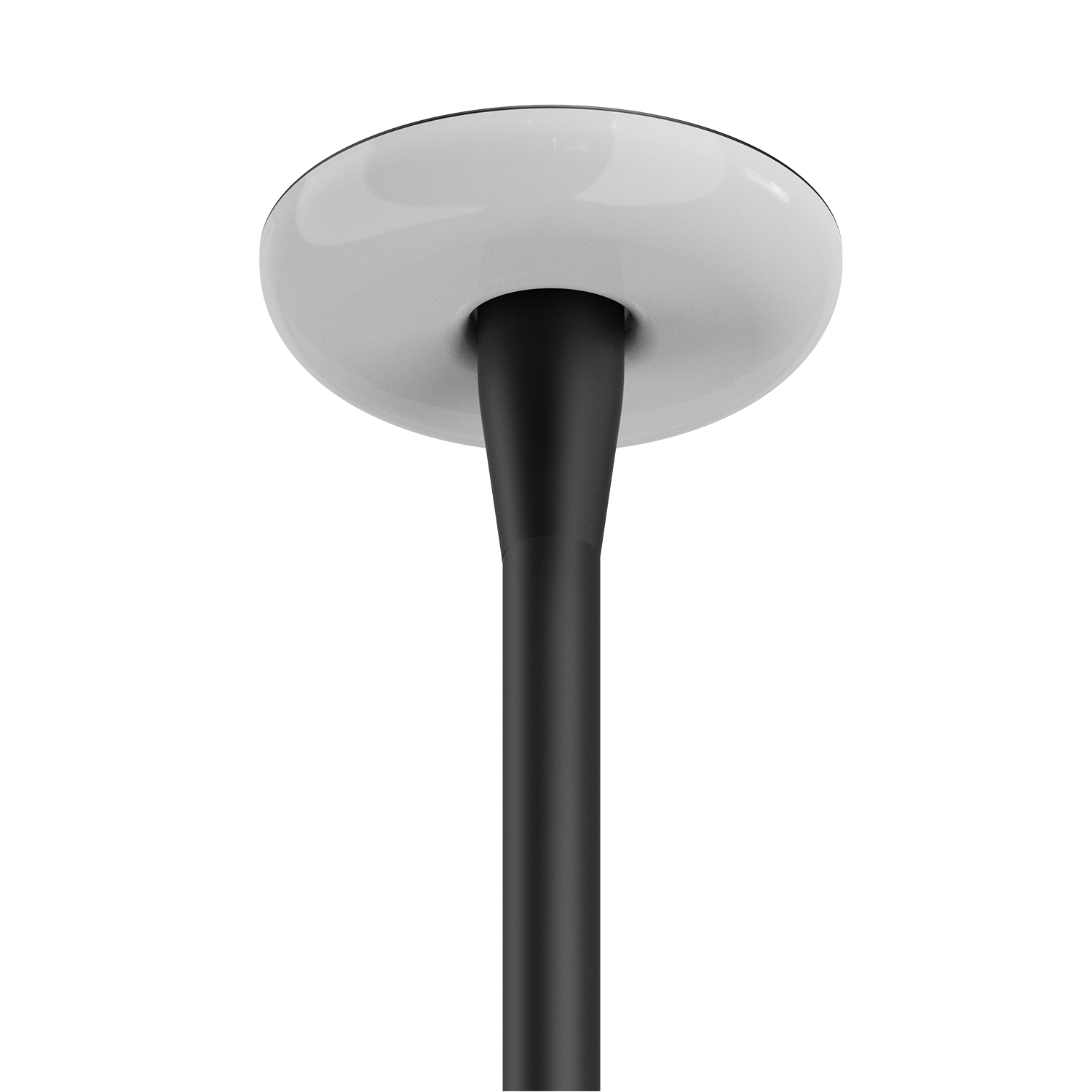

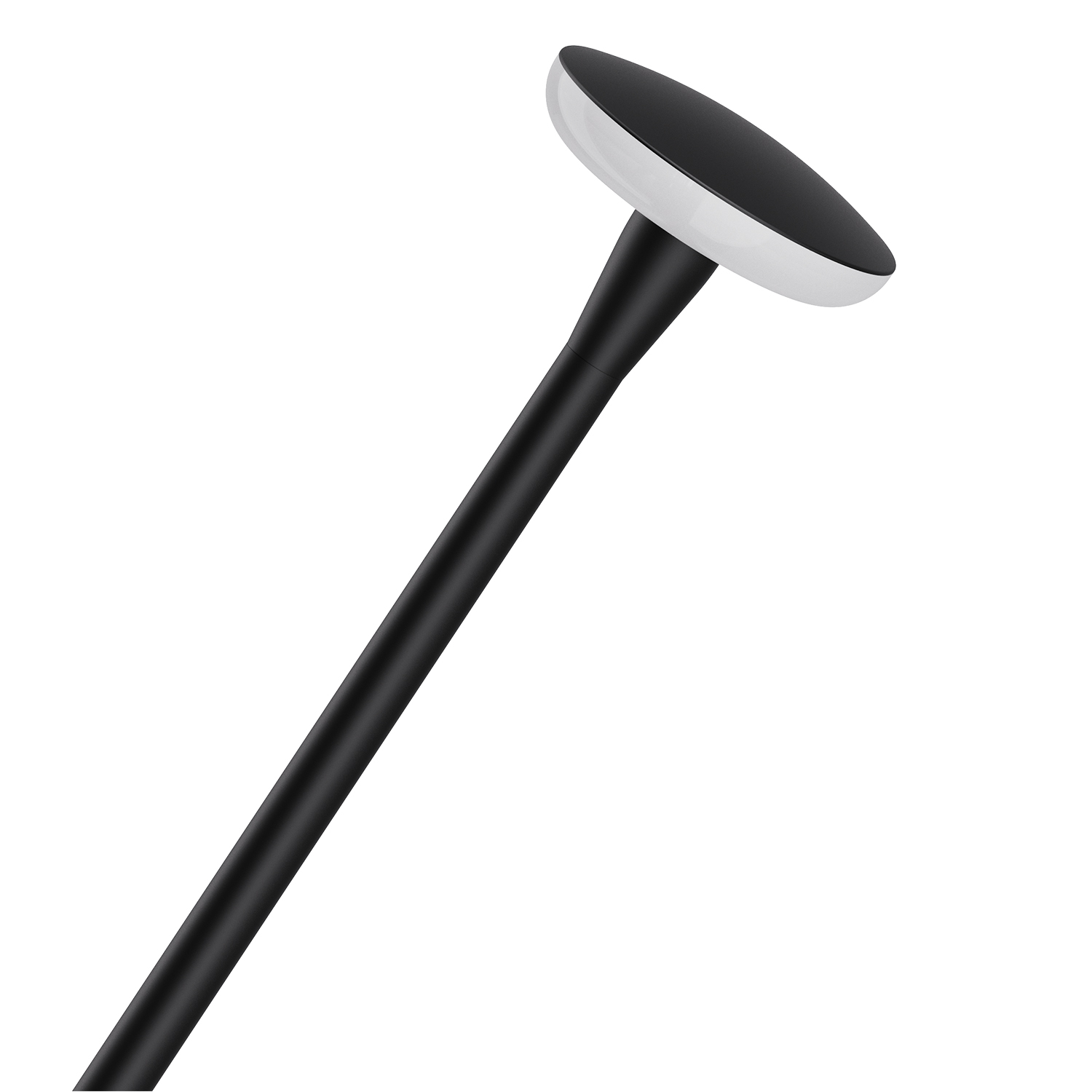

LT9411 Die Cast Aluminum Bollard

The LT9411 low-voltage bollard light is constructed from durable die-cast aluminum and features an integrated LED module for reliable outdoor use. The series includes three sizes and output options (A/B/C), ranging from 0.5W to 3W (up to 195 lumens), combined with a wide 180° beam angle for even ground coverage. Different height options make it easy to adapt to various landscape conditions, helping maintain clear and consistent illumination across gardens, pathways, and driveways.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG

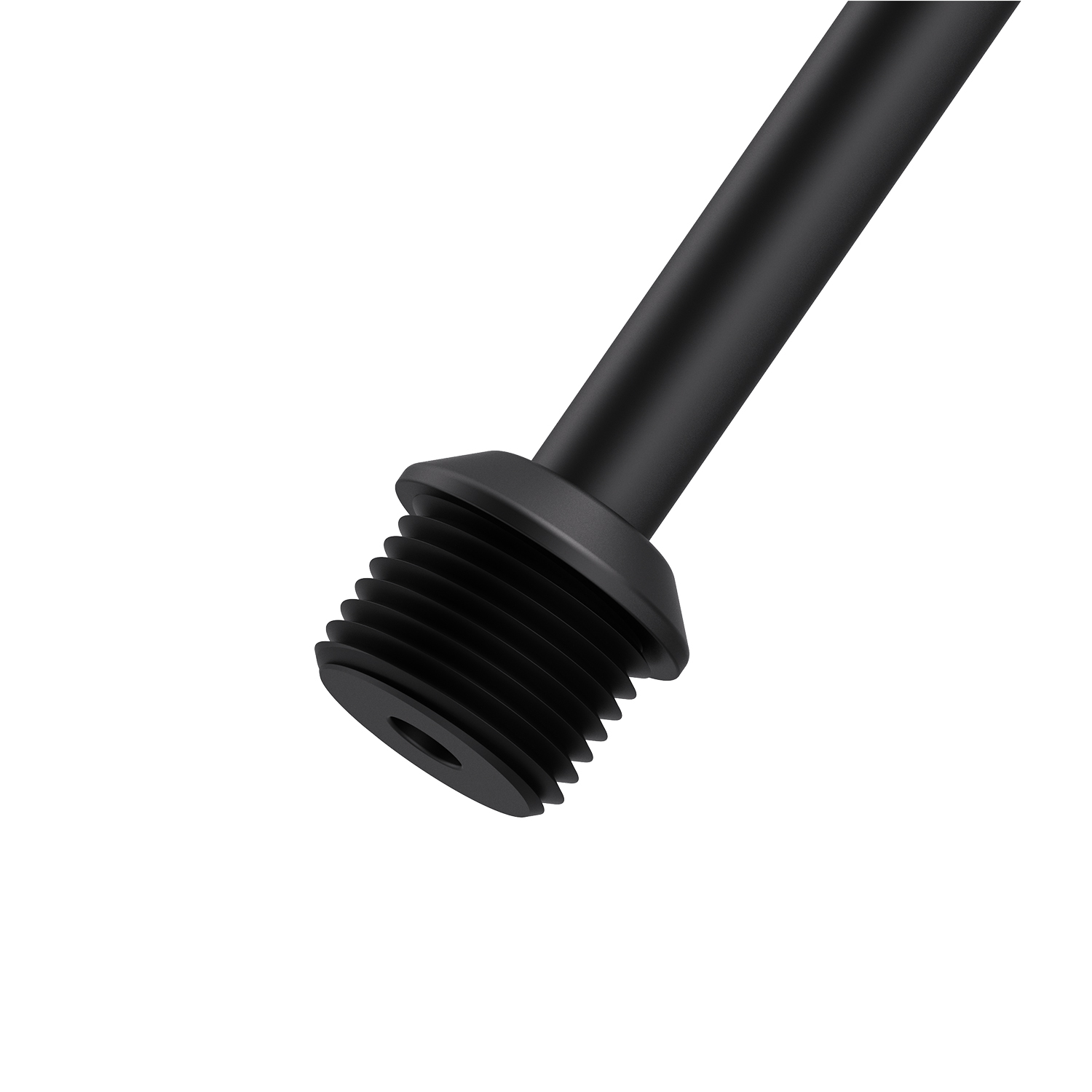

Mounting: Standard 8.5″ large ground stake (included)

Material

Finish: Powder coating

Color: ORB/Matte Black

Construction: Die cast aluminum

Get a Quote

Specification Accessories Photos Video Download

P/N	LT9411A	LT9411B	LT9411C
In put Voltage	9-17V AC/DC
Lighting source	Integrated LED Module
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage	0.5W	1.5W	3W
Output Lumens	33LM	98LM	195LM
Beam Angle	180°
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Dimension	2.3″Φ×15.7″ L	2.3″Φ×23.6″ L	2.3″Φ×35.4″ L
Warranty	5 Years, Structure Lifetime

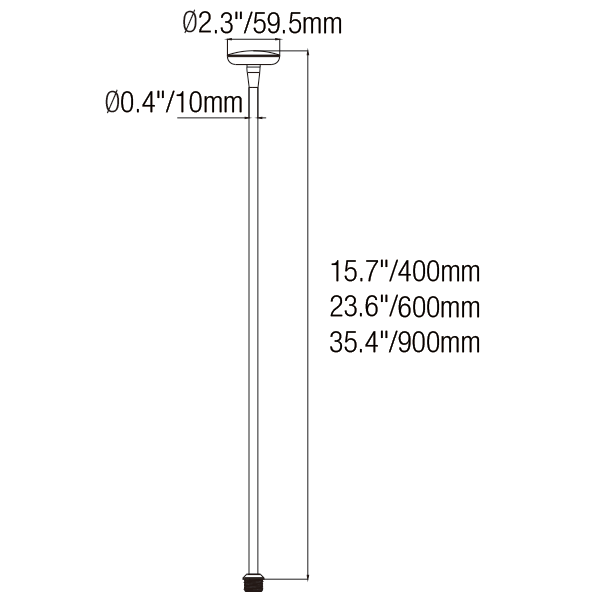

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT9411A specification sheet

LT9411B specification sheet

LT9411C specification sheet
