LT9606P Die-Cast Brass Modern Wall Light

The LT9606P low-voltage wall light features a die-cast brass rectangular housing with a shielded downlight design for focused, glare-free illumination. Its integrated LED delivers a soft downward wash that highlights vertical surfaces with clean, consistent light. With an IP65 rating, this fixture offers dependable outdoor performance for residential facades, pillars, and patio walls.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG

Dimension: 2″×1.5″×1.1″

Material

Finish: Antique Bronze/Gun Metal Black/Matte Black

Construction: Die cast brass

Get a Quote

Specification Accessories Photos Video Download

P/N	LT9606P
In put Voltage	9-17V AC/DC
Lighting source	Integrated
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage	3W
Output Lumens	126 LM
Color Temperature (CCT)	2700-6000K optional
Beam Angle	100°
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Dimension	2″×1.5″×1.1″
Water Proof	IP65
Certifications	ETL
Warranty	5 years

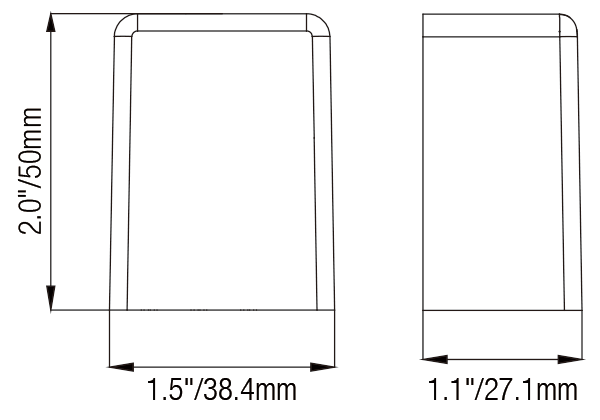

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT9606P specification sheet
