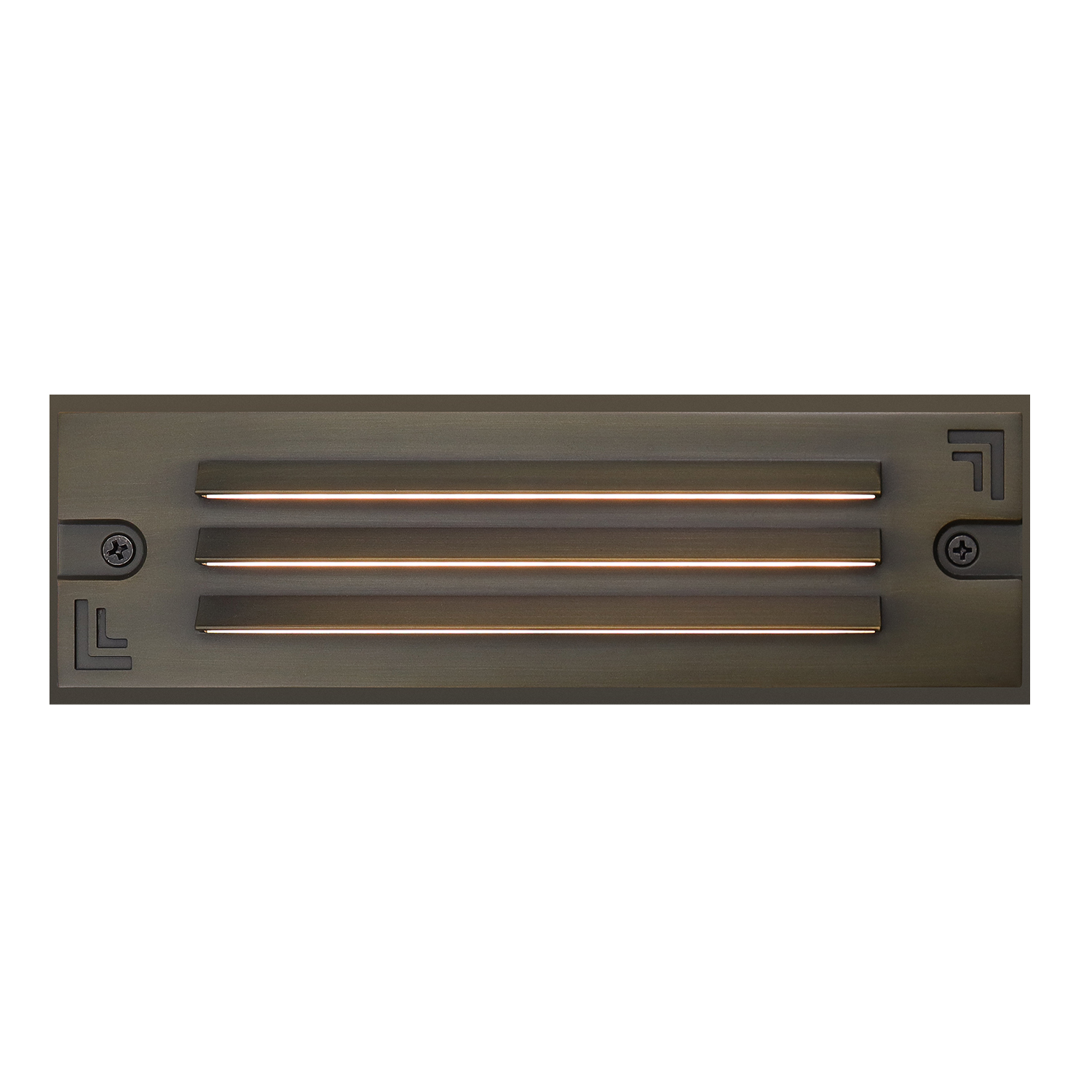

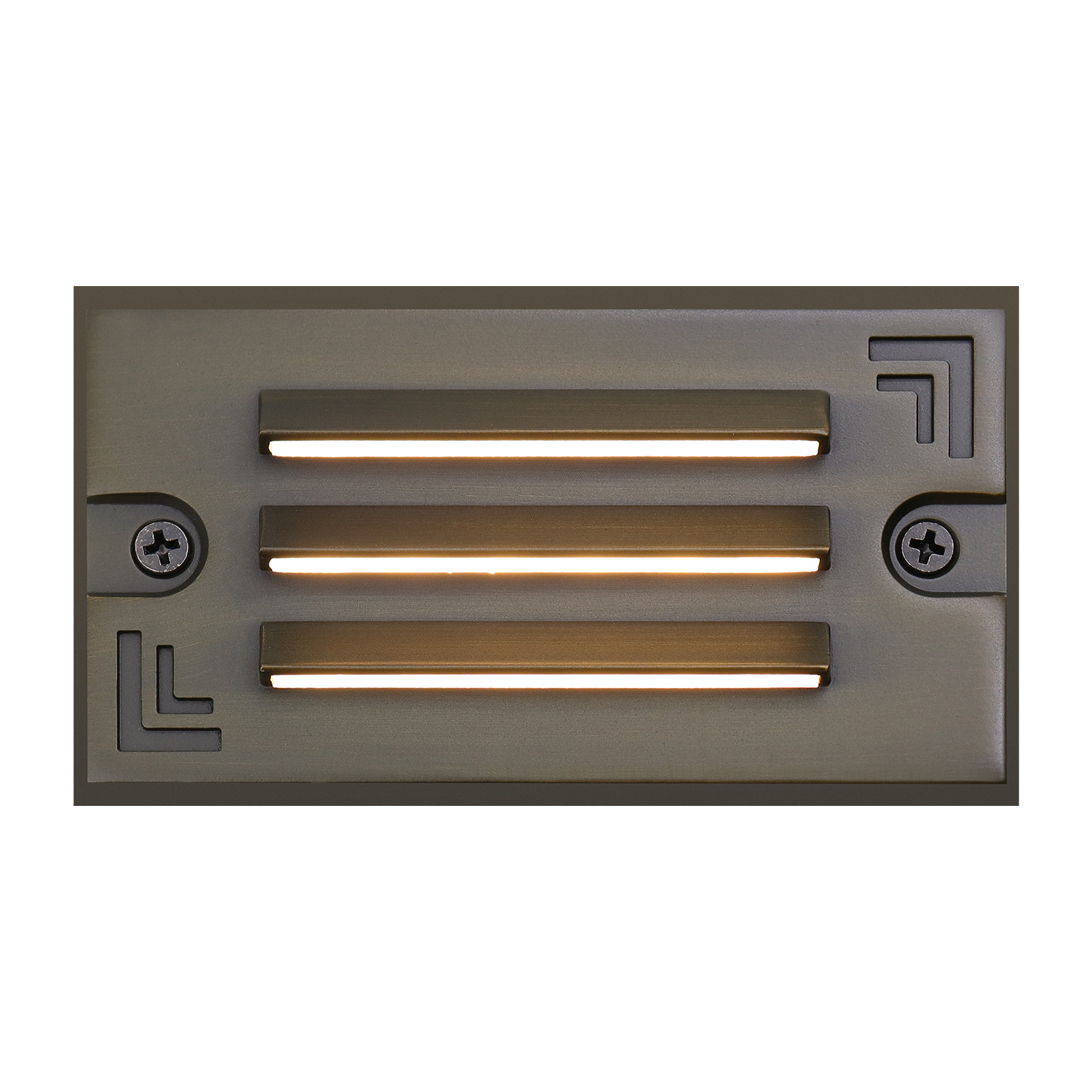

LT9701P Die Cast Brass Grating RGB CCT Tunable Smart Step Light

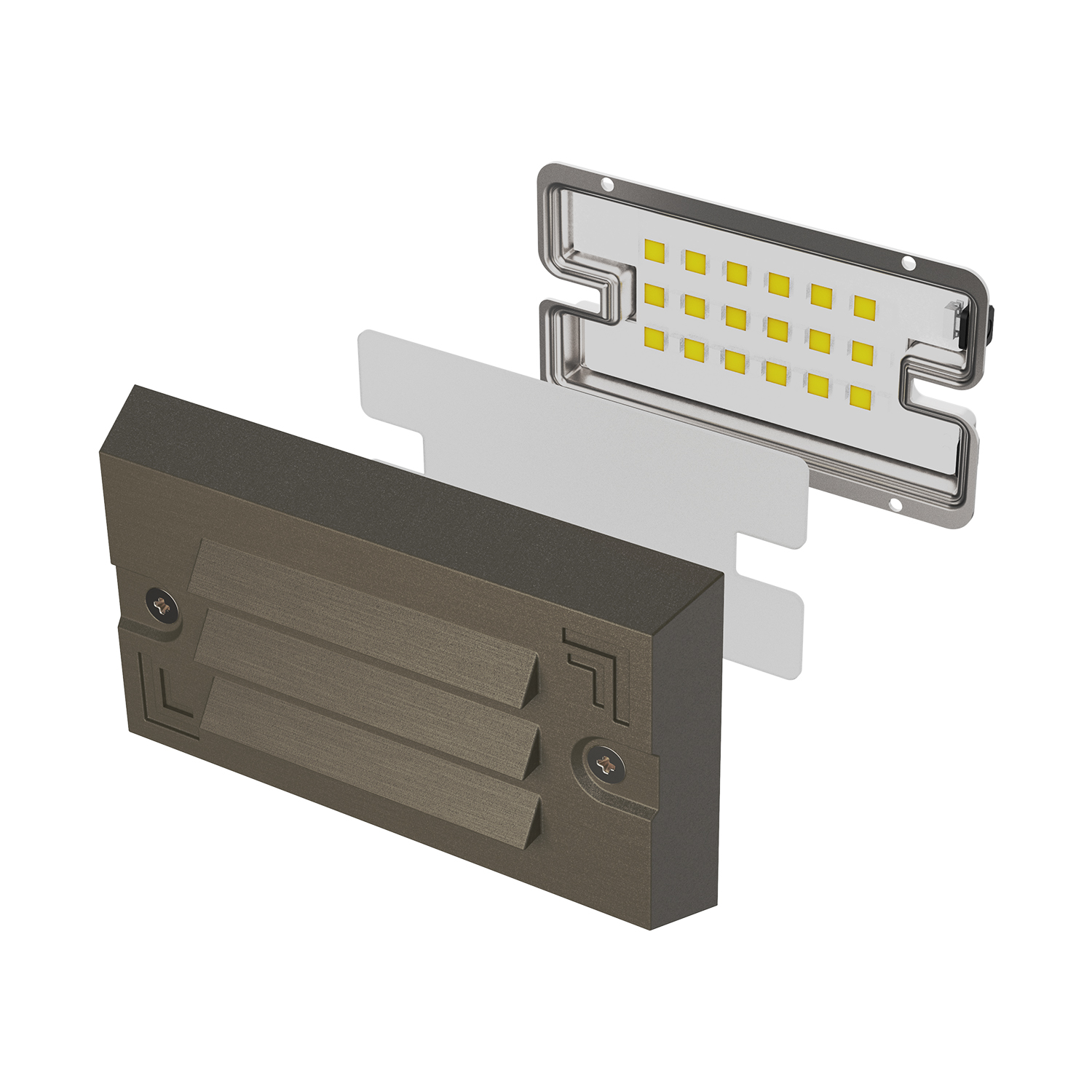

The LT9701P low-voltage smart step light features a heavy-duty die-cast brass louvered housing designed to reduce glare and direct light downward. Equipped with an integrated LED source, it offers RGB and tunable CCT control through the Tuya app, allowing users to adjust color settings as needed. With an IP65 rating and a 40° beam angle, this fixture provides focused downlighting for residential staircases and patio steps while supporting both safety and visual appeal.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG

Mounting: expansion screw

More options: canopy surface mount, gutter mount, adjustable brass riser,hex louver.

Material

Finish: Antique Bronze/Gun Metal Black/Matte Black

Material: Die cast brass body

Lens: Clear flat glass

LT CERTIFICATIONS 02
Get a Quote
P/N LT9701PA1-1-A LT9701PA1-5-A LT9701PA1-B LT9701PA2-1-A LT9701PA2-5-A LT9701PA2-B
In put Voltage 9-17V AC/DC
Lighting source Integrated
Power Supply LT Tech Low Voltage Transformer (sold separately)
Wattage 3W 3W 3W 5W 5W 5W
Output Lumens 50LM 40LM 20LM 100LM 80LM 40LM
Beam Angle  40°  40°  40°  40°  40°  40°
Color Temperature (CCT) 2700-6000K 2700-5000K(adjustable)  RGB & CCT 2700-6000K 2700-5000K(adjustable)  RGB & CCT
Control N/A Button APP N/A Button APP
Color Rendering Index (Ra) 85
Working Temperature -45-45℃
Water Proof IP65
Certifications ETL
Dimension 5″×2.9″×0.9″ 5″×2.9″×0.9″ 5″×2.9″×0.9″ 9.1″×2.9″×0.9″ 9.1″×2.9″×0.9″ 9.1″×2.9″×0.9″
Warranty 5 Years

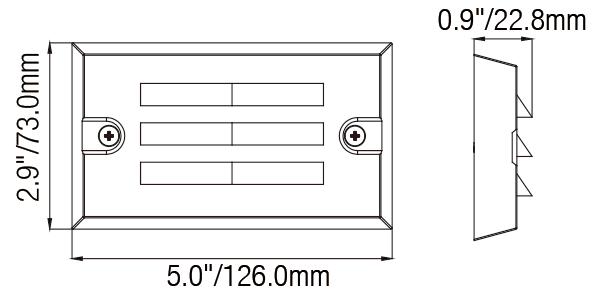

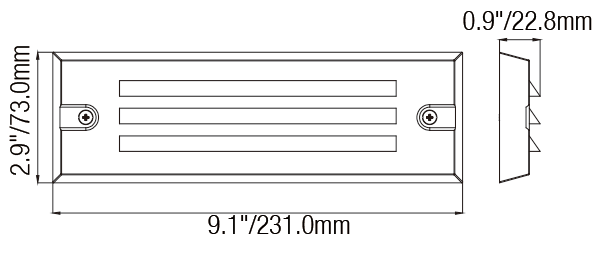

Dimensions
Photometrics
