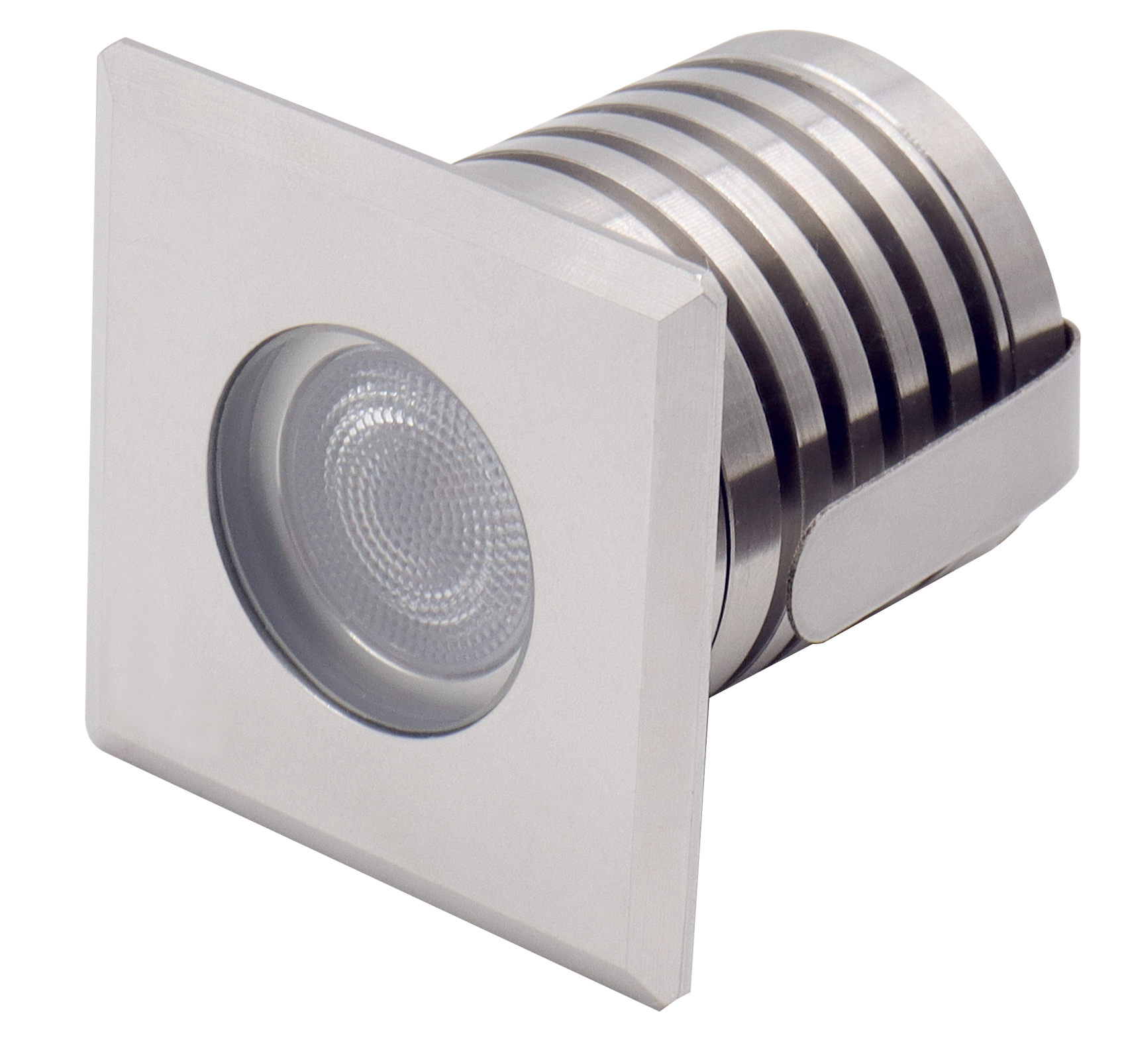

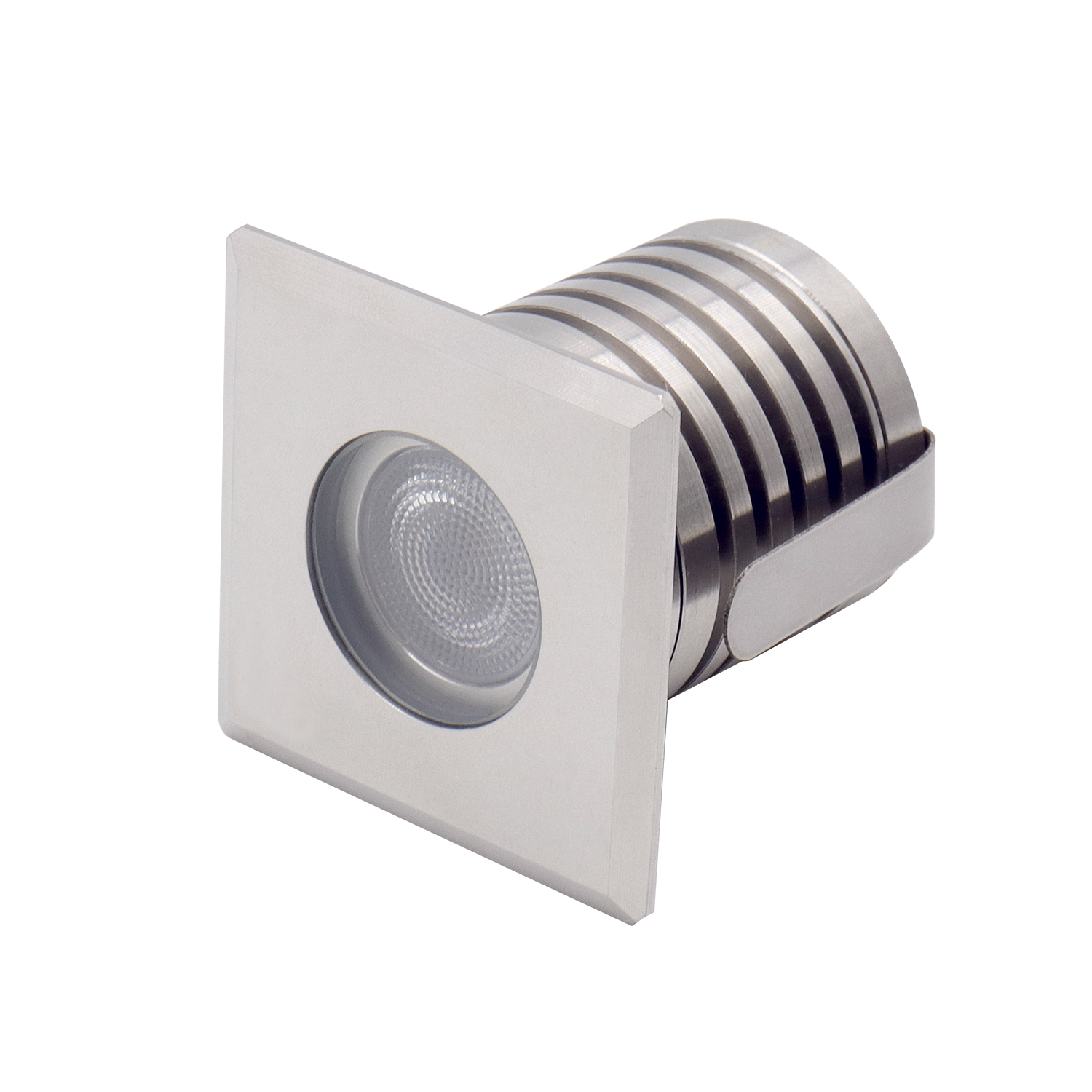

LT9906 1.9″ Lid Stainless Steel Recessed In ground Well Light

The LT9906 low-voltage recessed in-ground well light features a stainless steel construction with an ultra-compact 1.9″ trim for a clean, low-profile look in residential settings. Powered by a 3W integrated LED module delivering 250 lumens, it offers beam angle options of 15°, 30°, or 60° to suit different lighting needs. Square, round, and cross-louvered lid configurations provide installation flexibility, while the IP65-rated construction supports reliable use on decks, pathways, and hardscape borders.

Mounting / Installation

Lead Wire: Pre-stripped 40″ UL2464 24AWG

Mounting: Pre embedded bucket

Material

Finish: Silver

Construction: Stainless steel

Get a Quote

Specification Accessories Photos Video Download

P/N	LT9906A	LT9906B	LT9906C
In put Voltage	9-17V AC/DC
Lighting source	LED module
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage	3W	3W	3W
Output Lumens	250LM	250LM	250LM
Beam Angle	15° /30° /60° optional
Color Temperature (CCT)	2700-6000K optional
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	2.8″×2.8″×2″	2.8″×2.8″×2″	2.8″×2.8″×2″
Gross Weight	0.2 KG	0.2 KG	0.2 KG
Warranty	5 years
Features

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT9906A specification sheet

LT9906B specification sheet

LT9906C specification sheet
