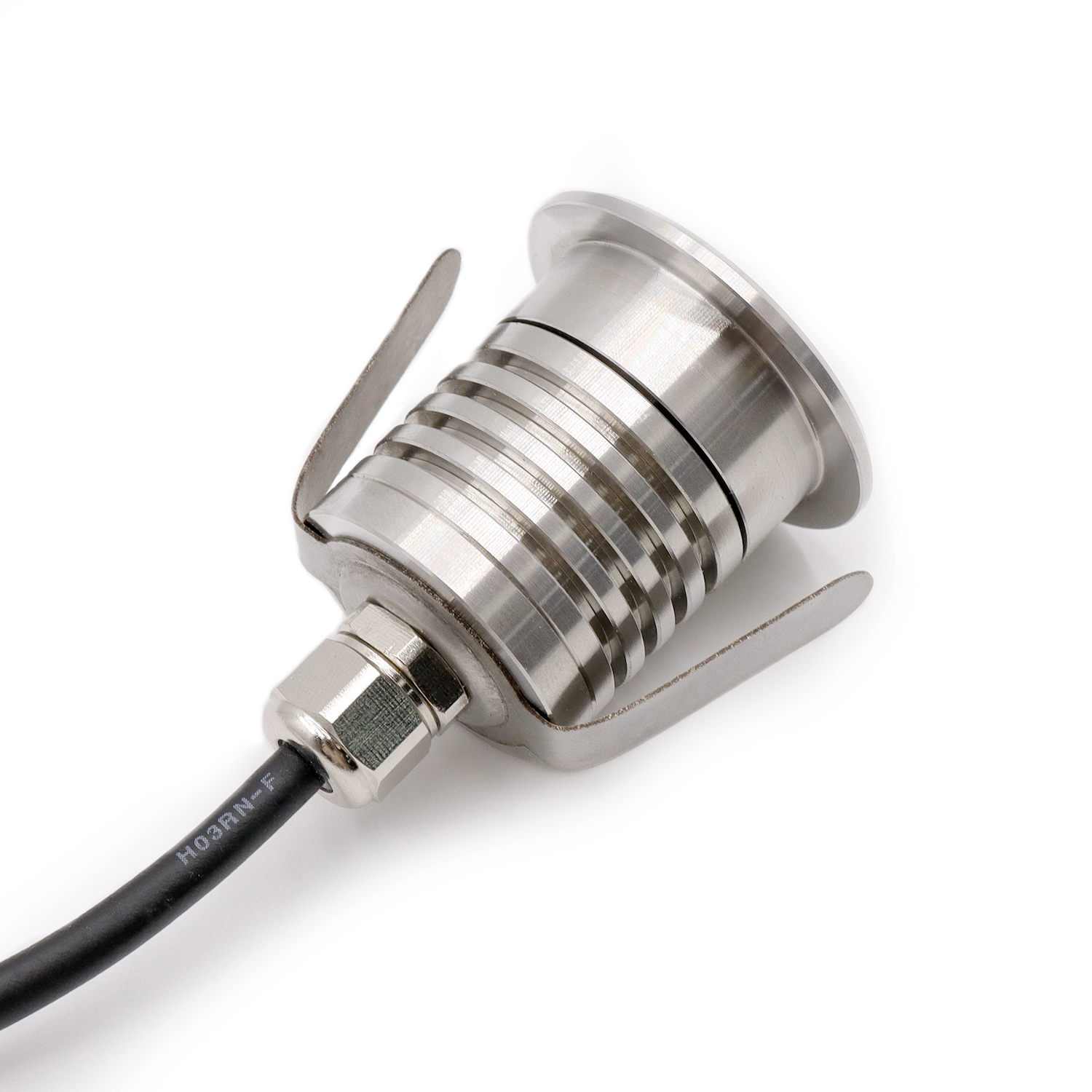

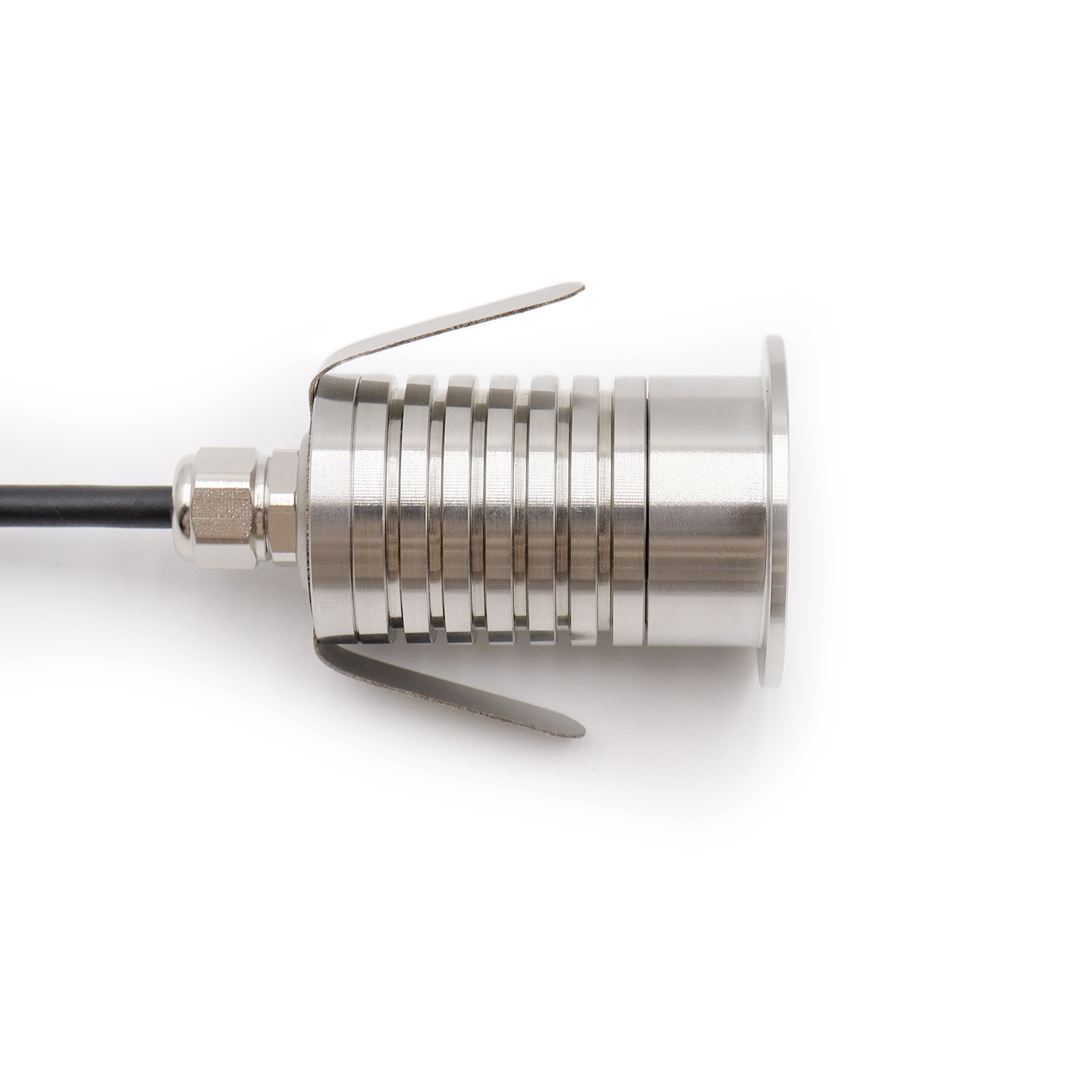

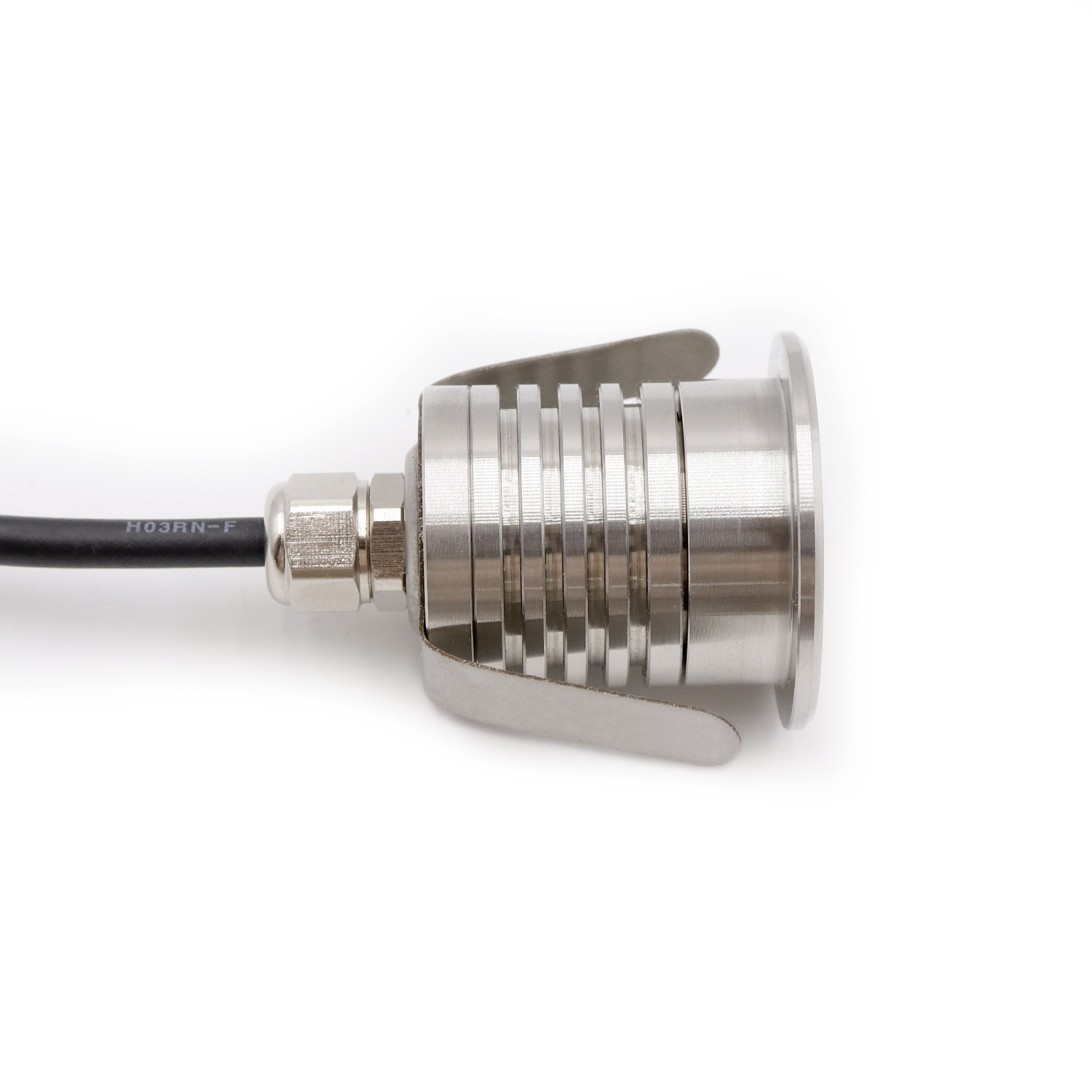

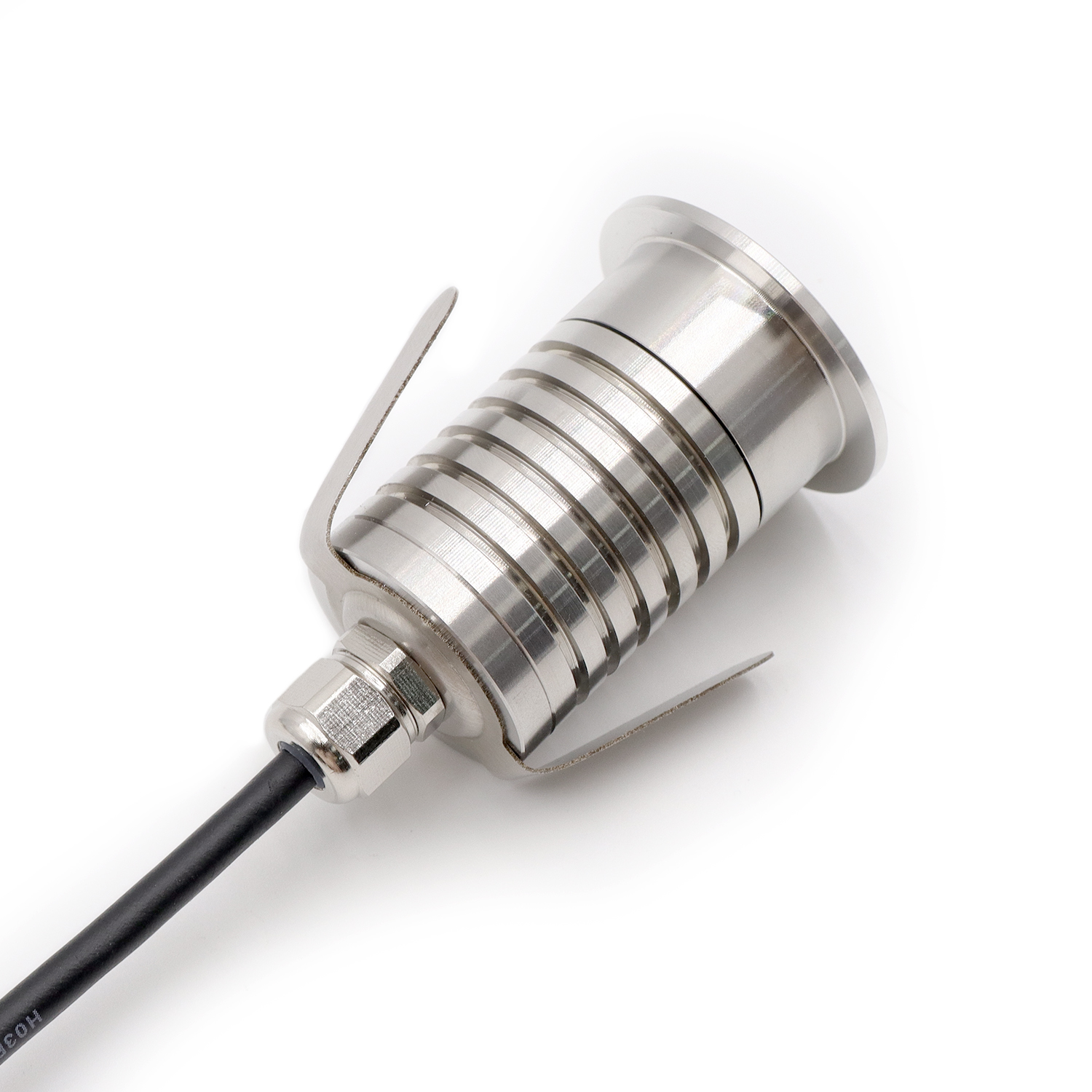

LT9907 1.4″ Lid Mini Stainless Steel Recessed In ground Well Light

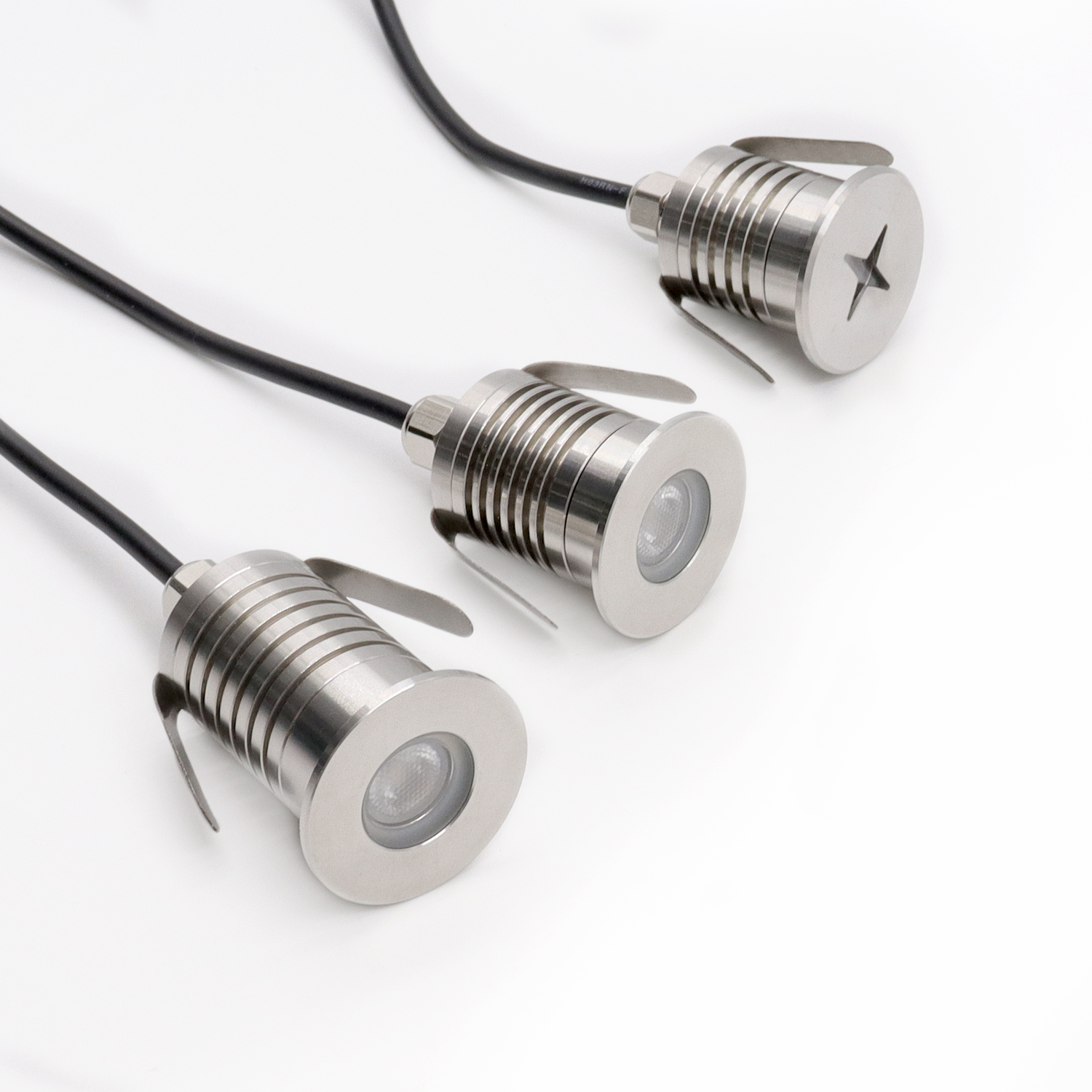

The LT9907 low-voltage mini recessed well light combines a stainless steel construction with an ultra-compact 1.4″ trim for a discreet, low-profile installation. A 1W integrated LED module delivers 80 lumens, with beam angle options of 15°, 30°, or 60° for more precise light spread. Available in square, round, cross, and single-slit glare-shielded lid configurations, this IP65-rated fixture is well-suited for decks, step risers, and hardscape borders.

Mounting / Installation

Lead Wire: Pre-stripped 40″ UL2464 24AWG

Mounting: Pre embedded bucket

Material

Finish: Silver

Construction: Stainless steel

Get a Quote

Specification Accessories Photos Video Download

P/N	LT9907A	LT9907B	LT9907C	LT9907D
In put Voltage	9-17V AC/DC
Lighting source	LED module
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage	1W	1W	1W	1W
Output Lumens	80LM	80LM	80LM	80LM
Beam Angle	15° /30° /60° optional
Color Temperature (CCT)	2700-6000K optional
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Dimension	1.4″×2.2″	1.4″×2.3″	1.4″×2.3″	1.4″×2.3″
Package Size	2.8″×2.8″×1.6″	2.8″×2.8″×1.6″	2.8″×2.8″×1.6″	2.8″×2.8″×1.6″
Gross Weight	0.12 KG	0.12 KG	0.12 KG	0.12 KG
Warranty	5 years
Features

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT9907A specification sheet

LT9907B specification sheet

LT9907C specification sheet

LT9907D specification sheet
