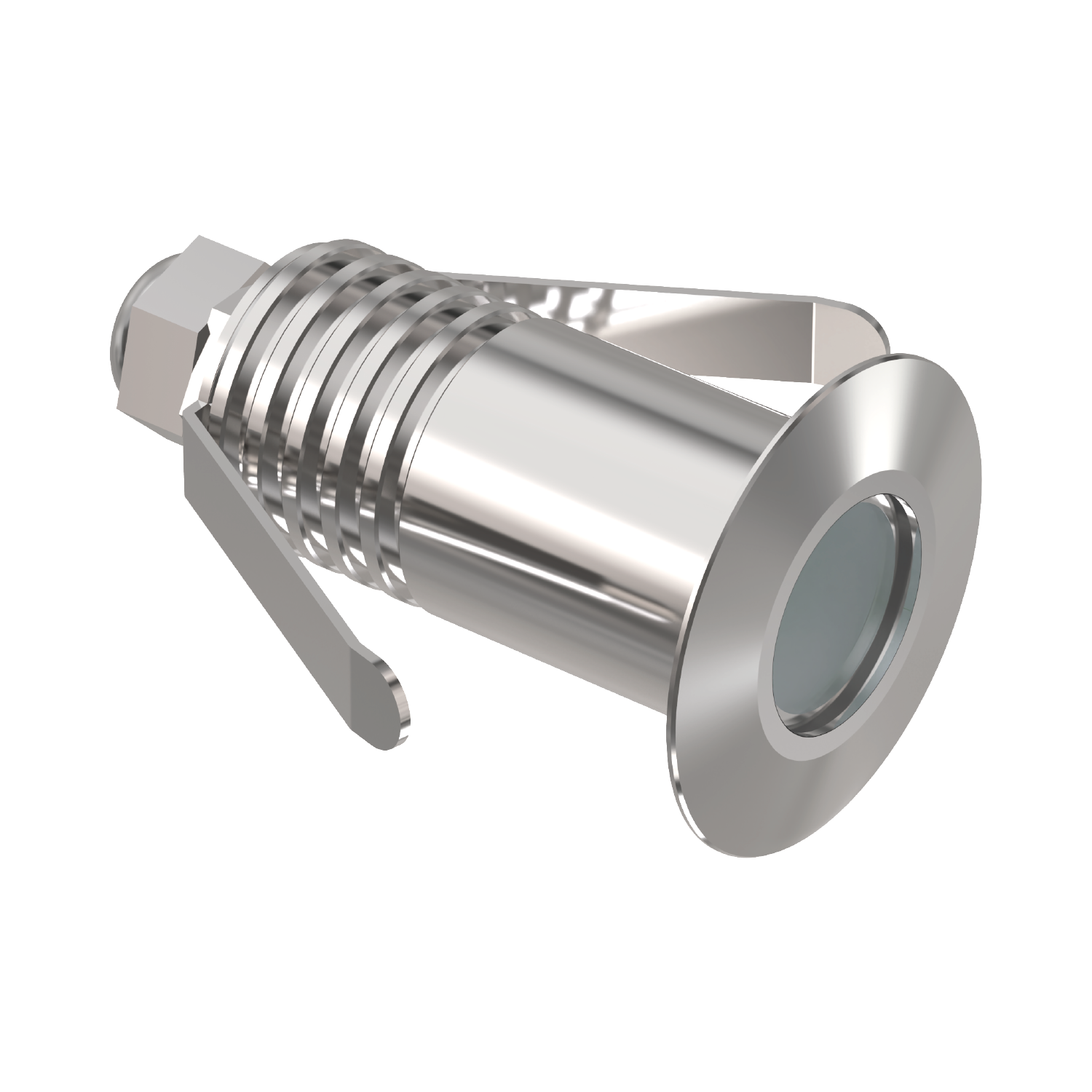

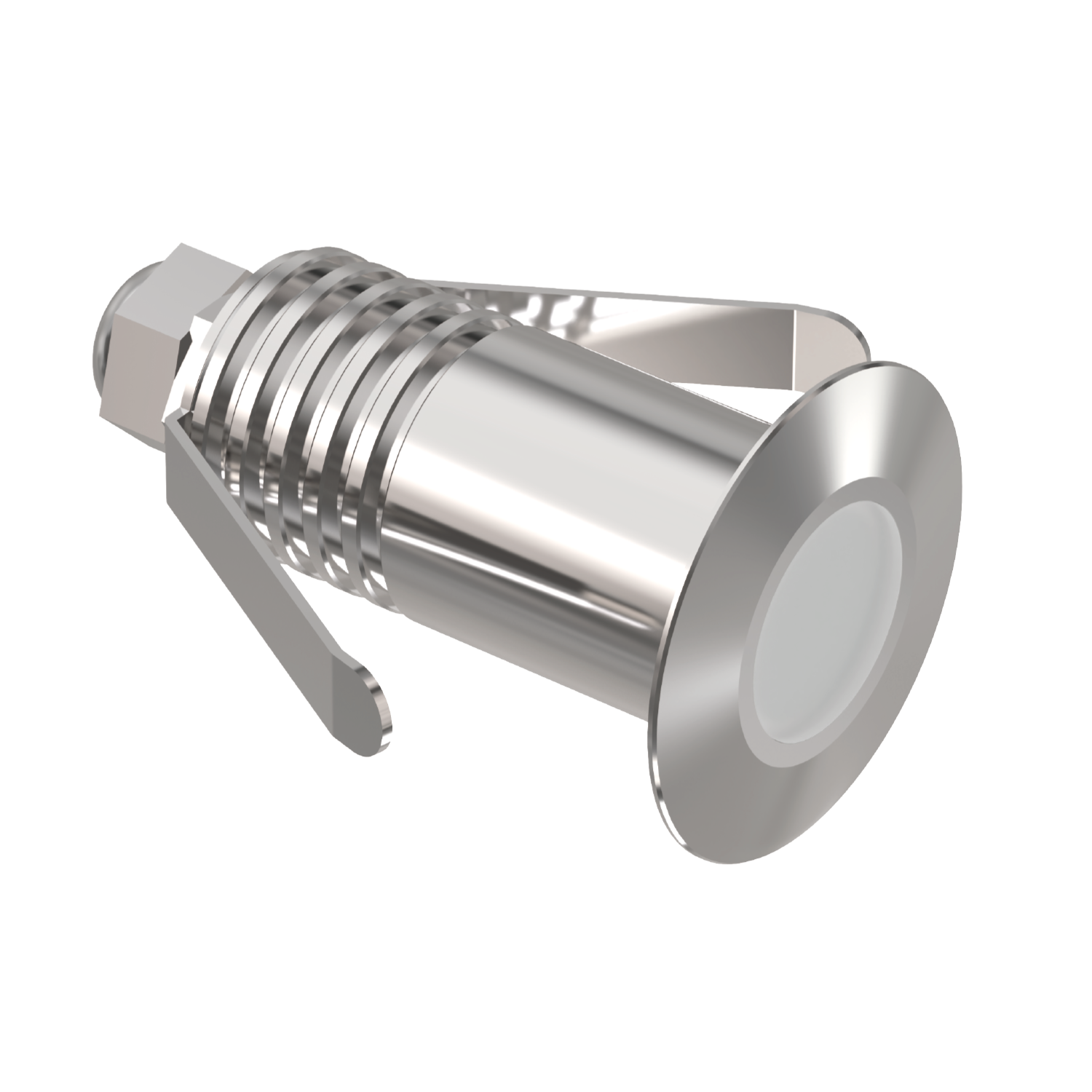

LT9909 1.3″ Lid Mini Stainless Steel Recessed In ground Well Light

The LT9909 low-voltage (12V) mini recessed well light combines a stainless steel construction with an ultra-compact 1.3″ trim for a discreet installation. The series offers three options: a 0.1W/120° diffuse marker, a 1W/36° directional mini-uplight, and a 0.5W/360° panoramic indicator. With an IP65 rating, these fixtures are well suited for decks, pathway borders, and hardscape steps.

Mounting / Installation

Lead Wire: Pre-stripped 40″ UL2464 24AWG

Mounting: Pre embedded bucket

Material

Finish: Silver

Construction: Stainless steel

Get a Quote

Specification Accessories Photos Video Download

P/N	LT9909SA01	LT9909SB01	LT9909SC01
In put Voltage	9-17V AC/DC
Lighting source	LED module
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage	0.1W	1W	0.5W
Output Lumens	5LM	85LM	30LM
Beam Angle	120°	36°	360°
Color Temperature (CCT)	2700-6000K optional
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Dimension	1.3″×2.1″	1.3″×2.1″	1.3″×2.3″
Package Size	2.8″×2.8″×1.6″	2.8″×2.8″×1.6″	2.8″×2.8″×1.6″
Gross Weight	0.12 KG	0.12 KG	0.12 KG
Warranty	5 years
Features

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT9909SA01 specification sheet

LT9909SB01 specification sheet

LT9909SC01 specification sheet
