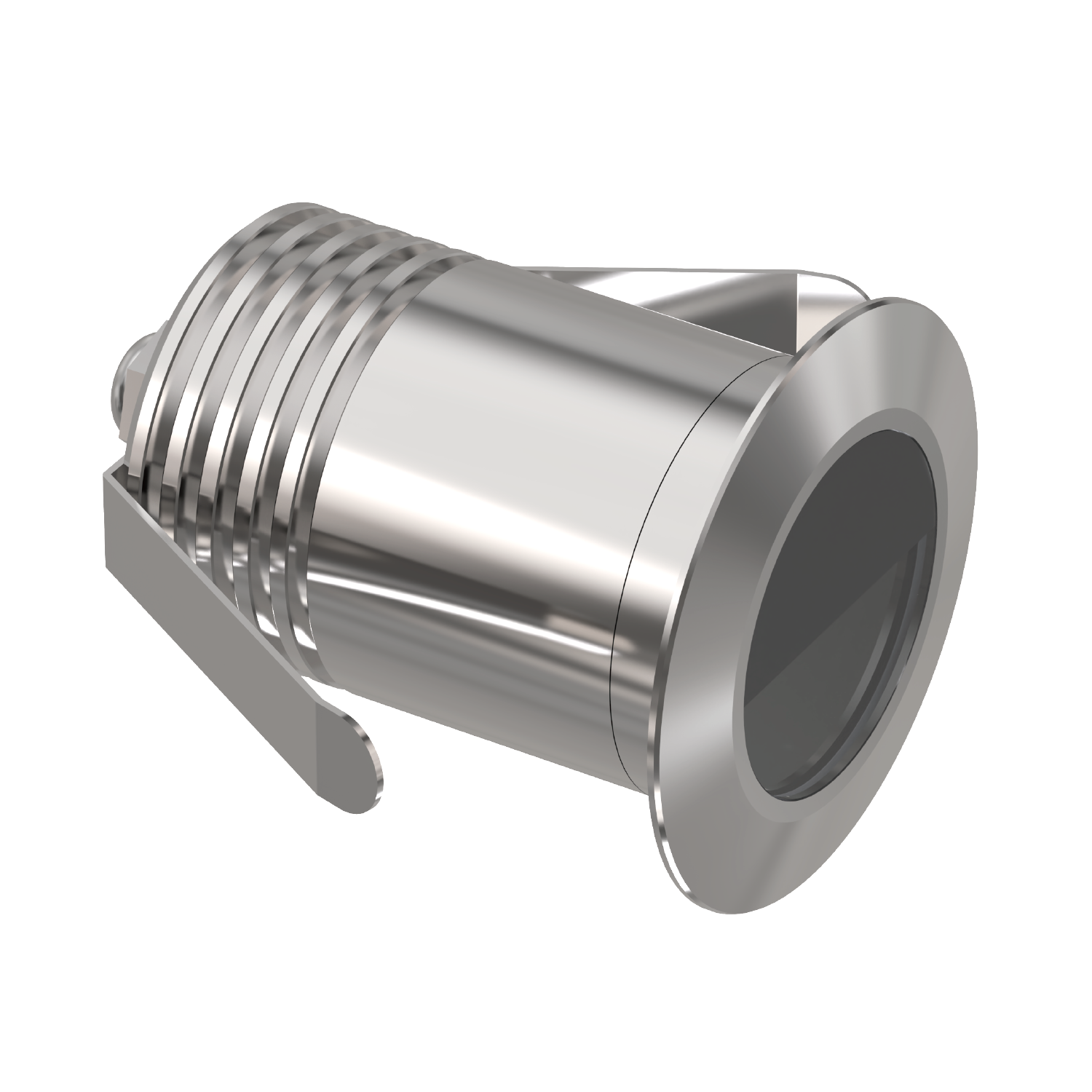

LT9910 2.3″ Lid Stainless Steel Recessed In ground Well Light

The LT9910 low-voltage recessed in-ground well light combines a stainless steel construction with a 2.3″ trim for a low-profile, integrated installation. It includes two models: the SC01 flat-lens version (3W/36°/225 lm) for directional uplighting, and the SD01 hooded version (3W/30°/105 lm) with a directional cutoff aperture to reduce glare and control light spread along pathways. With an IP65 rating, these fixtures are well-suited for walkways, decks, and step risers.

Mounting / Installation

Lead Wire: Pre-stripped 40″ UL2464 24AWG

Mounting: Pre embedded bucket

Material

Finish: Silver

Construction: Stainless steel

Get a Quote

Specification Accessories Photos Video Download

P/N	LT9910SC01	LT9910SD01
In put Voltage	9-17V AC/DC
Lighting source	LED module
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage	3W	3W
Output Lumens	225LM	105LM
Beam Angle	36°	30°
Color Temperature (CCT)	2700-6000K optional
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Dimension	2.3″×3″	2.3″×3.4″
Package Size	2.8″×2.8″×1.6″	2.8″×2.8″×1.6″
Gross Weight	0.12 KG	0.12 KG
Warranty	5 years
Features

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT9910SC01 specification sheet

LT9910SD01 specification sheet
