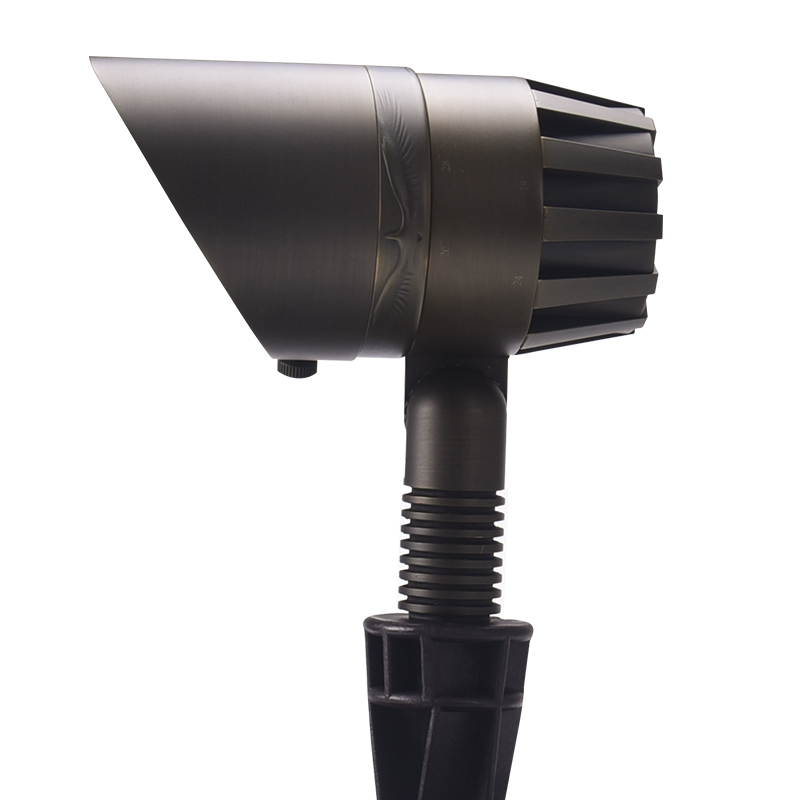

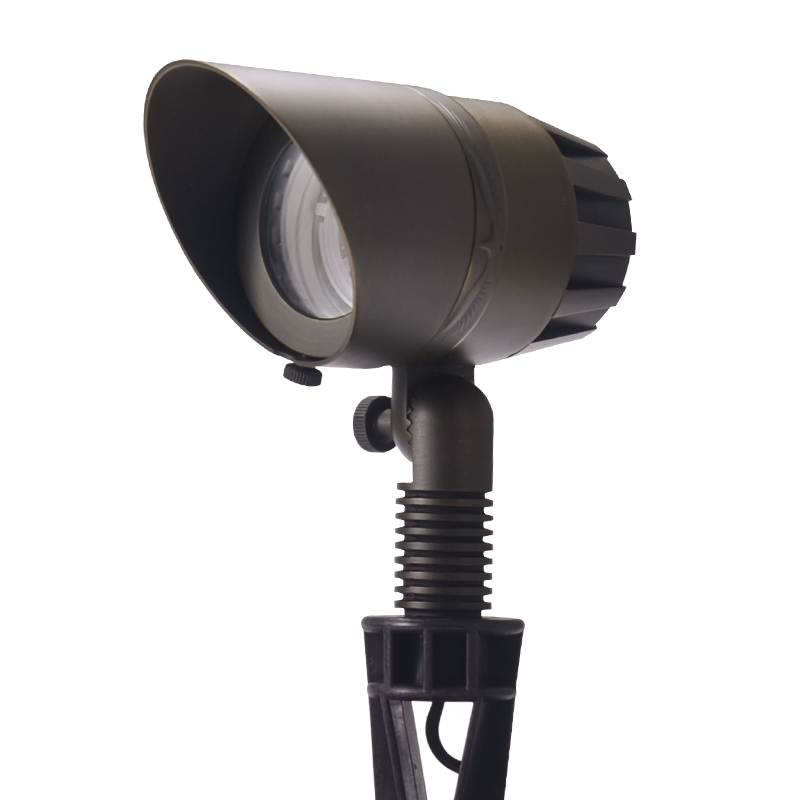

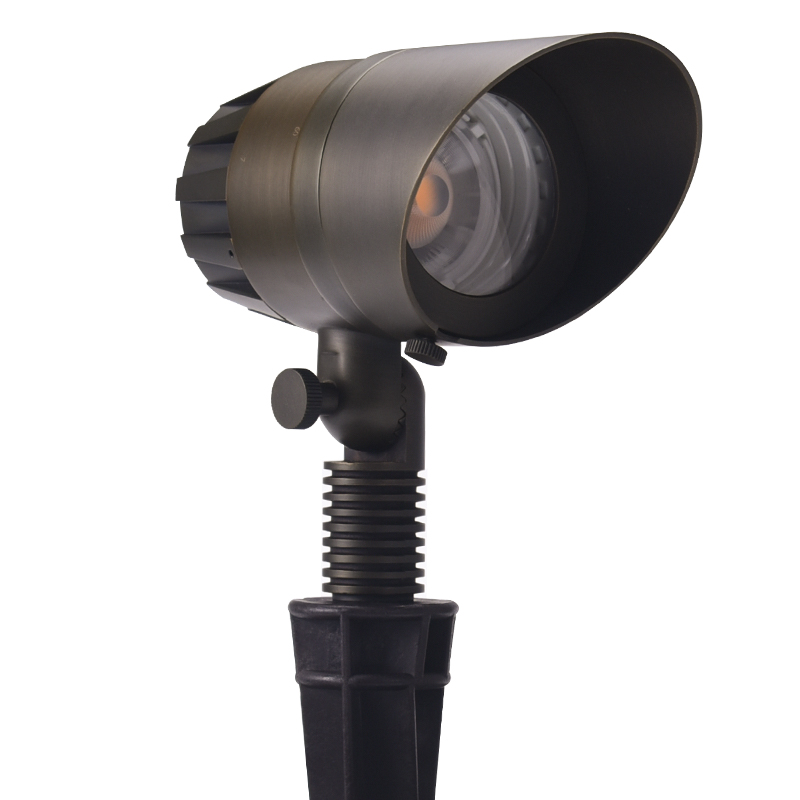

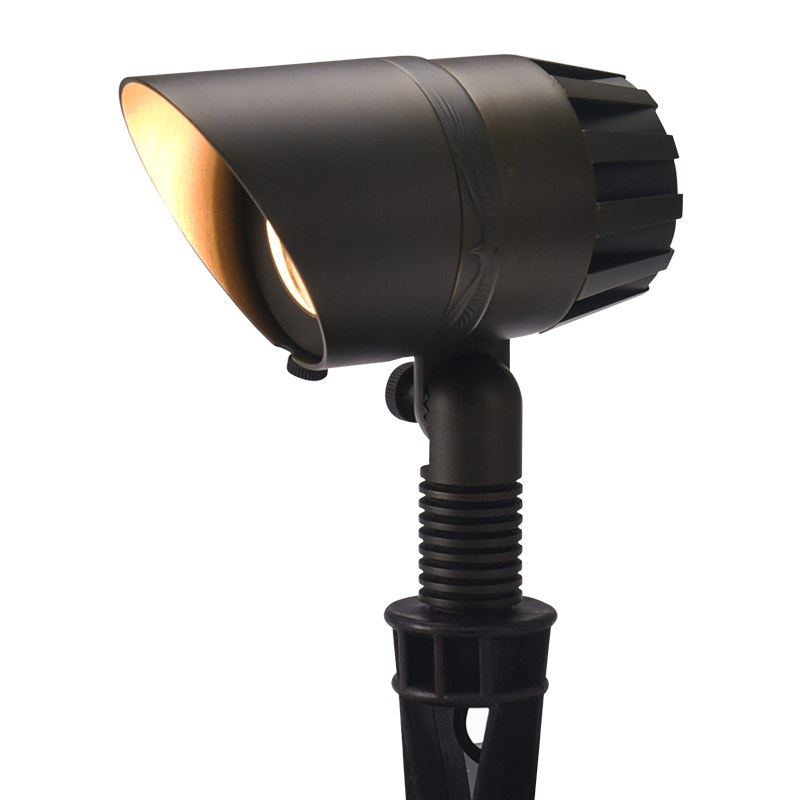

LT2506 Die Casting Brass Wattage and Beam Angle Adjustable Up Light

LT2506 Die Casting Brass Wattage and Beam Angle Adjustable Up Light

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG.

Mounting: Bigger size 410B side opening ground stake (included)

More options: canopy surface mount, gutter mount, adjustable brass riser,hex louver.

Material

Finish: Antique Bronze/Gun Metal Black/Matte Black

Housing: Die cast brass

Knuckle: Die cast brass, Thumb Screw and knuckle for angle adjustment.

Shroud & Lens: Round convex clear glass

Optional Lenses: Frosted lens, hex louver.

LT CERTIFICATIONS 02
Get a Quote
P/N LT2506
In put Voltage 9-17V AC/DC
Lighting source Integrated
Power Supply LT Tech Low Voltage Transformer (sold separately)
Wattage 6-24W adjustable
Output Lumens 1800LM
Beam Angle 15°-60° adjustable
Color Temperature (CCT) 2700-3-3000K(Optional)
Color Rendering Index (Ra) 85
Working Temperature -45-45℃
Water Proof IP65
Certifications ETL
Package Size 12″×10″×5.3″
Gross Weight 2.33 KG
Warranty 5 years
Features

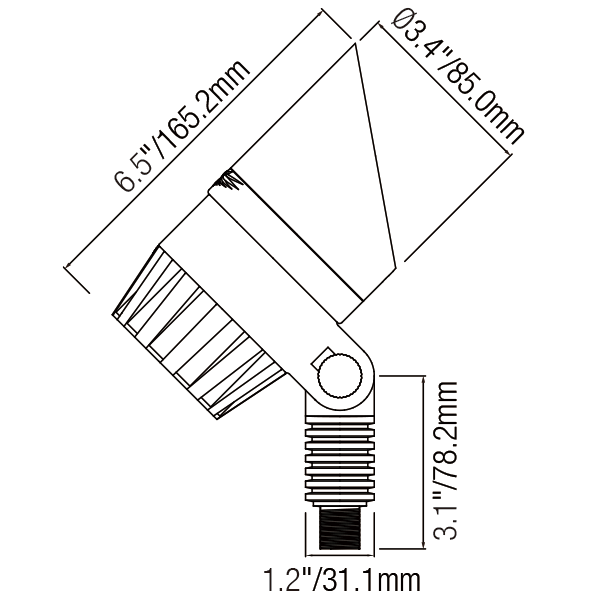

Dimensions
Photometrics
