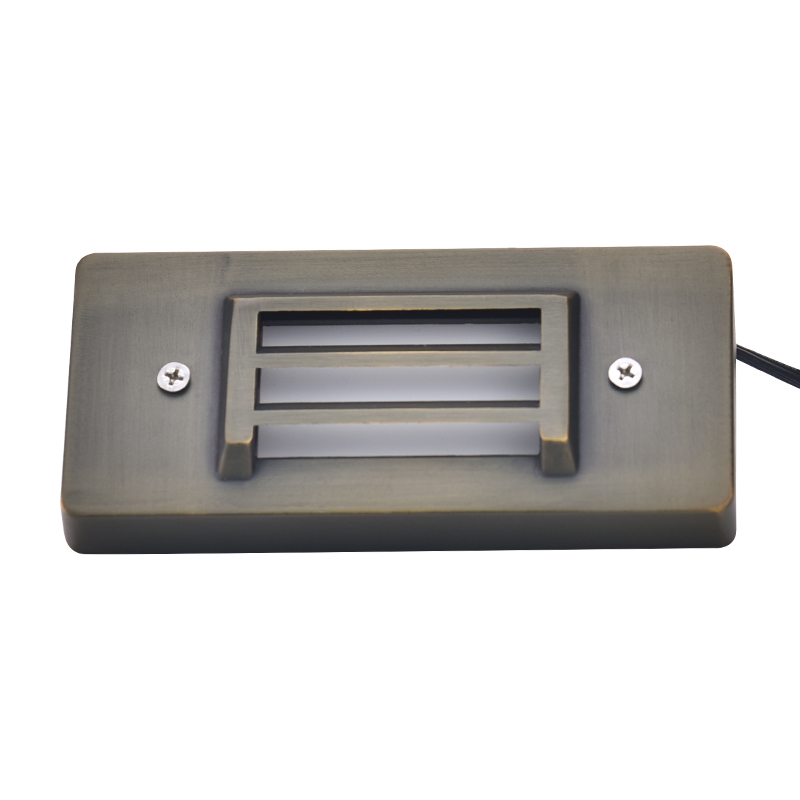

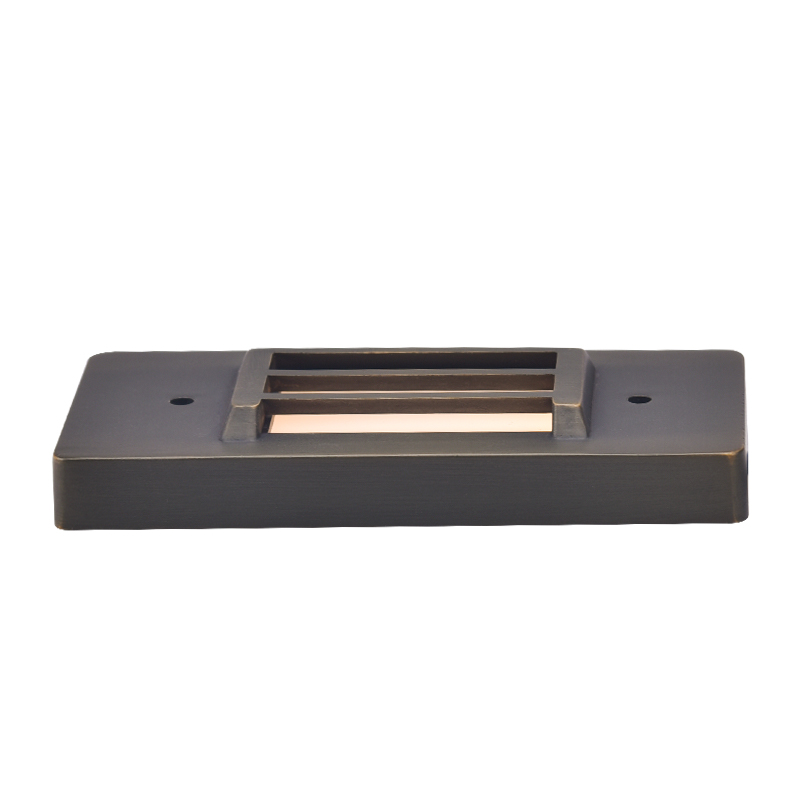

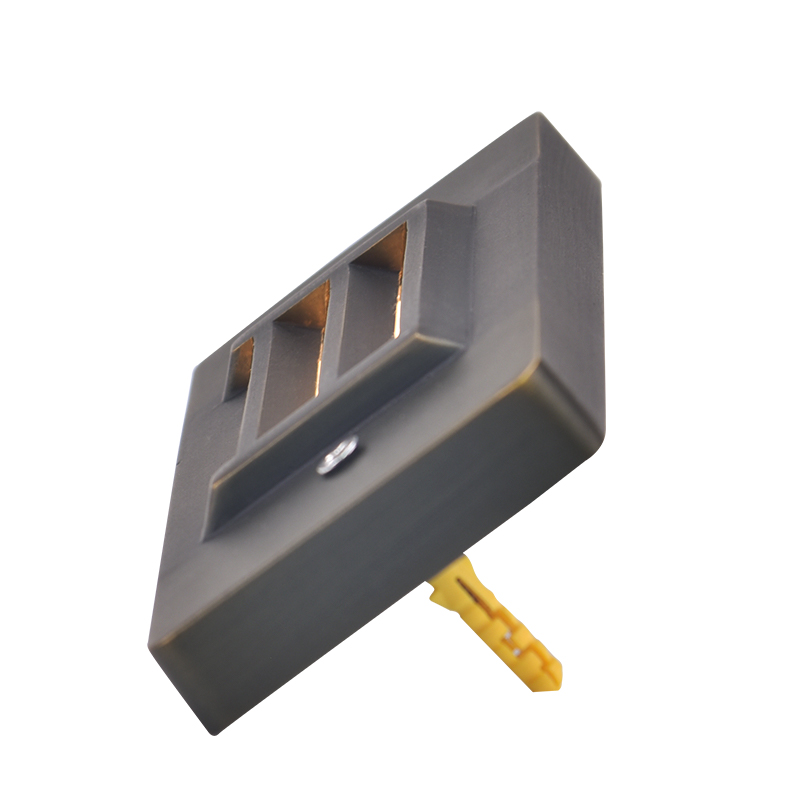

LT2503 Die Cast Brass Grating Step Light

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG.

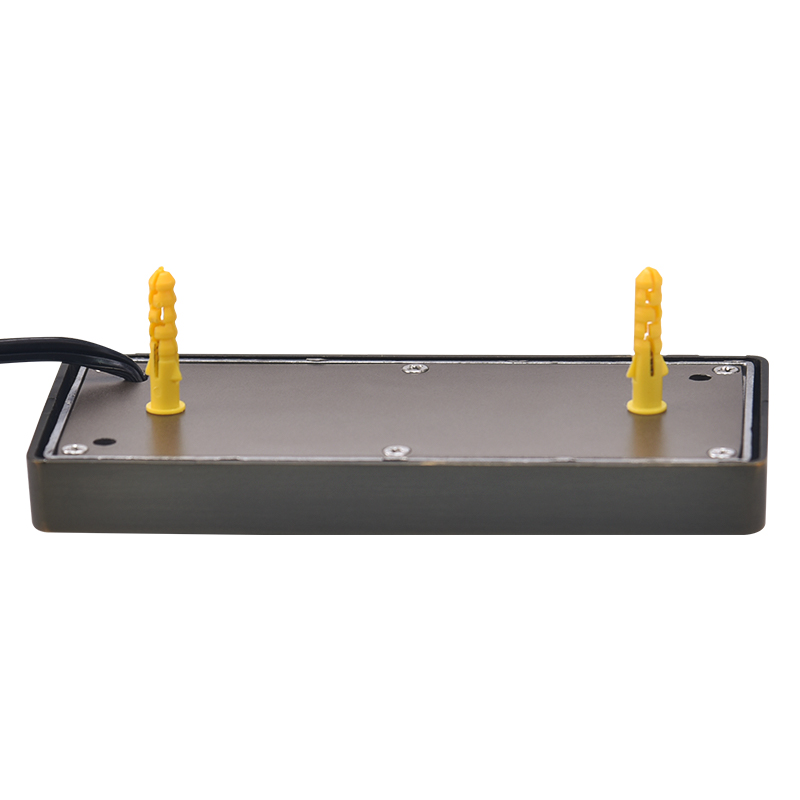

Mounting: expansion screw

More options: canopy surface mount, gutter mount, adjustable brass riser,hex louver.

Material

Finish: Antique Bronze/Gun Metal Black/Matte Black

Material: Die cast brass body

Lens: Clear flat glass

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2503
In put Voltage	9-17V AC/DC
Lighting source	Integrated
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Wattage	2W
Output Lumens	240LM
Beam Angle	45°
Color Temperature (CCT)	2700-6000K(Optional)
Color Rendering Index (Ra)	85
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	6.7″×3.3″×2.6″
Gross Weight	0.6 KG
Warranty	5 years
Features

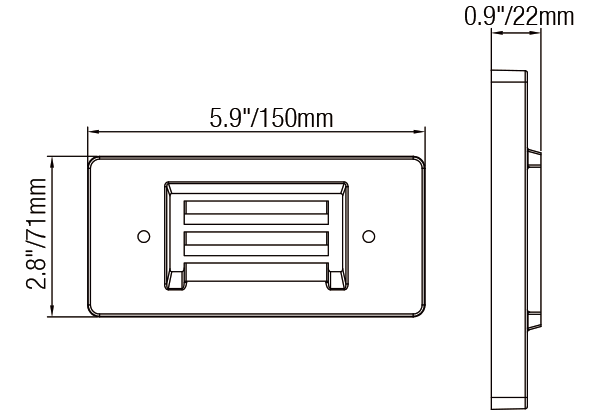

Dimensions

Photometrics

3150-low voltage transformer
