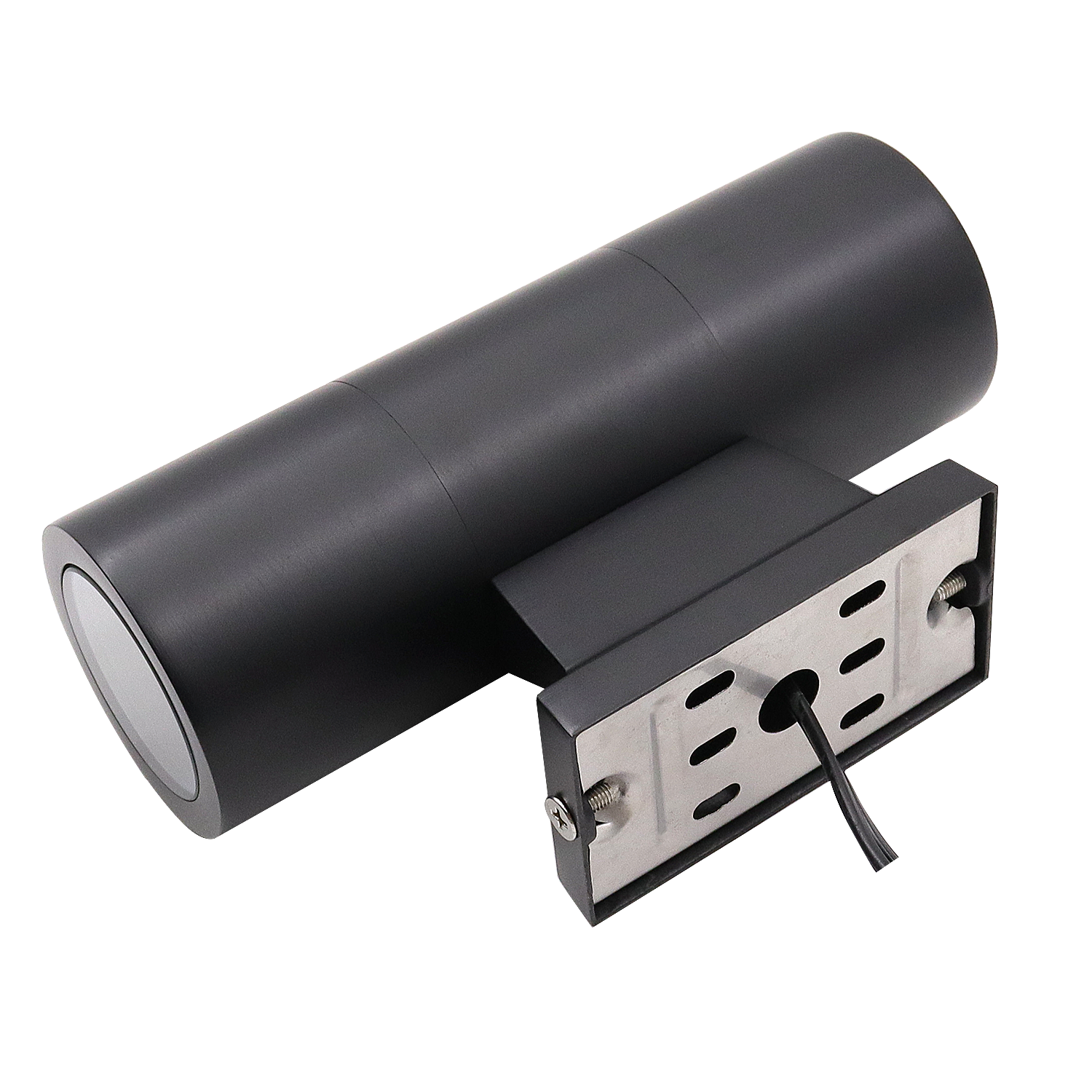

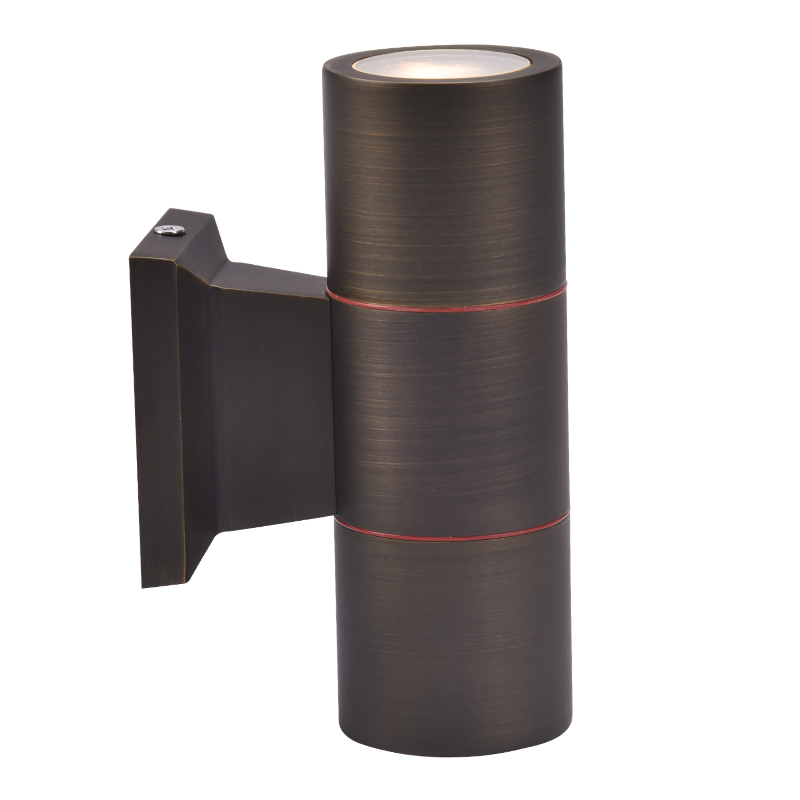

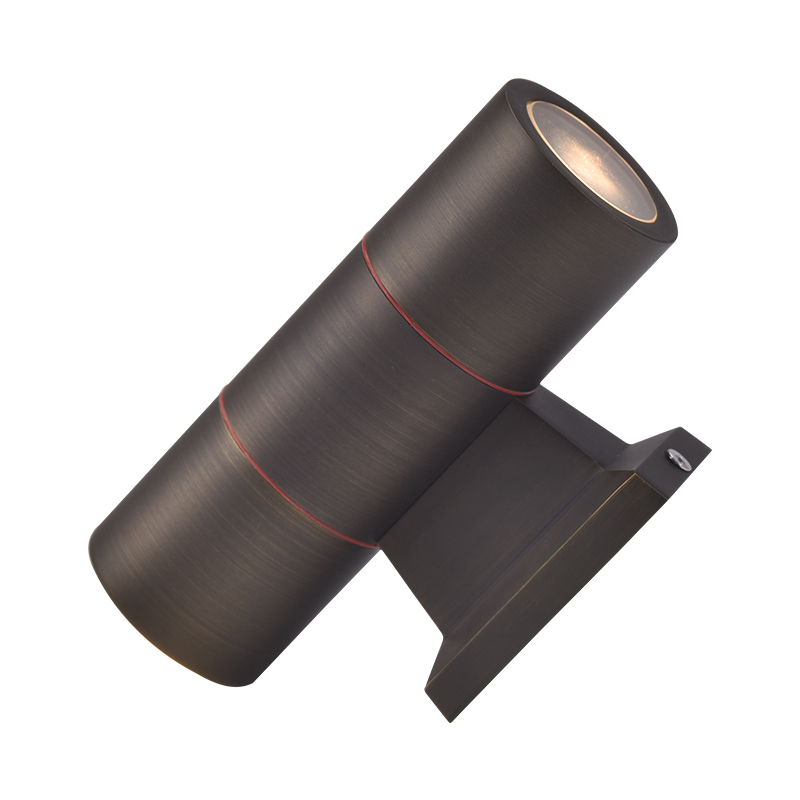

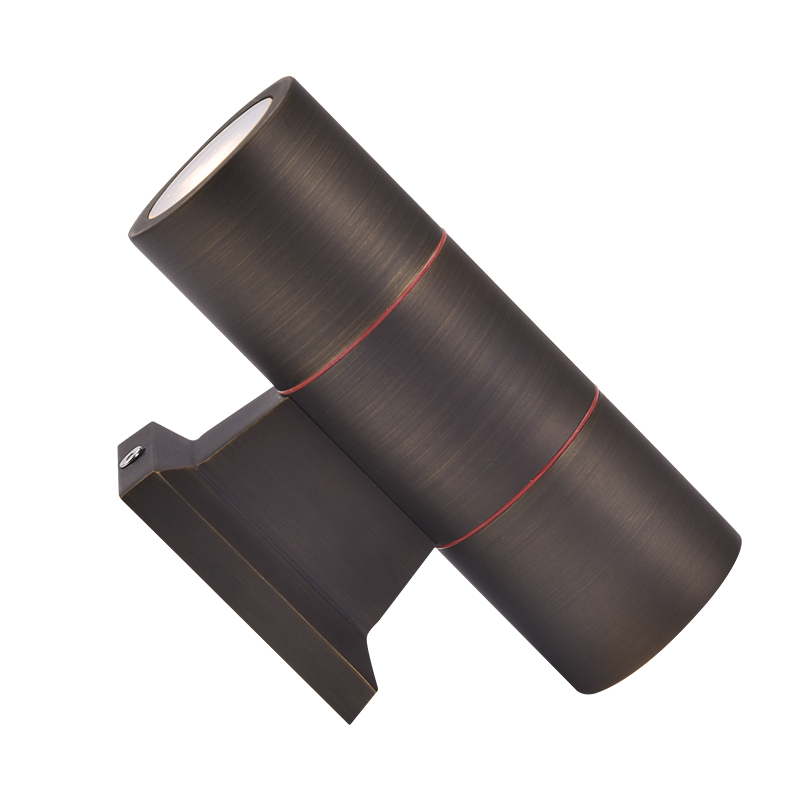

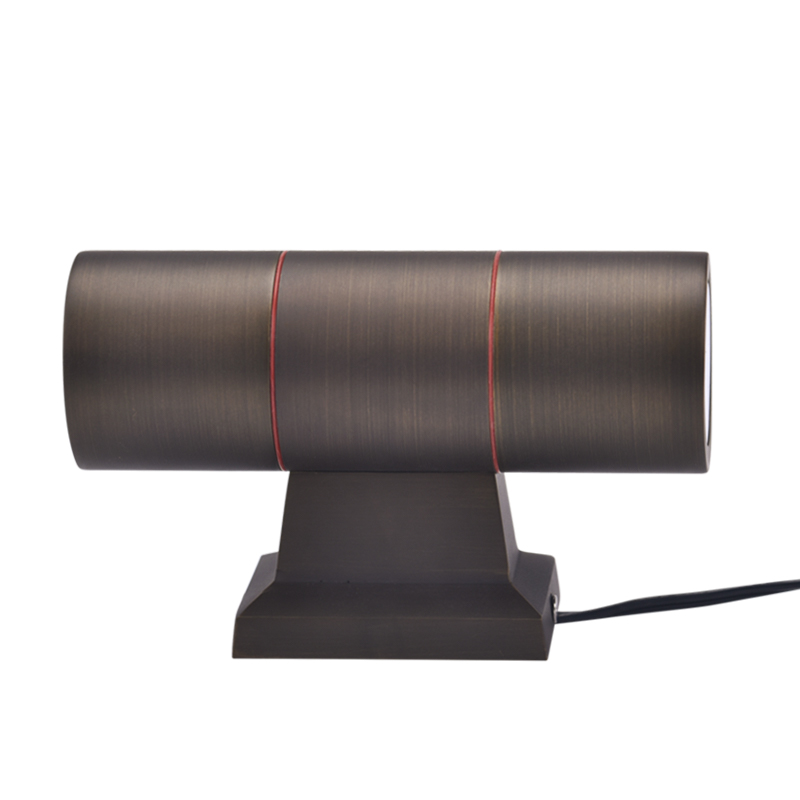

LT2602 Die Cast Brass Up Down Cylinder Wall Light

The LT2602 is a low-voltage brass cylinder wall sconce designed to deliver balanced up-and-down architectural illumination for facades, columns, and exterior surfaces. Its dual-opening design supports two MR16 lamps behind clear flat glass lens, creating a clean vertical lighting effect for outdoor architectural accents. Constructed from solid die-cast brass with a brushed antique bronze finish, it is built for lasting outdoor performance with concealed wire routing for a clean installation appearance.

Mounting / Installation

Lead Wire: 72″ (1.8 meters) Spt-1W, 18AWG

Mounting: Smaller (2”) mounting bracket allows for more mounting solutions, including lanai cage posts

More options: canopy surface mount, gutter mount, adjustable brass riser,hex louver.

Material

Finish: Antique Bronze

Construction: Die cast brass

Lens: Clear flat glass

Scoket: Fixed GU 5.3 bi pin socket-double

Get a Quote

Specification Accessories Photos Video Download

P/N	LT2602
In put Voltage	9-17V AC/DC

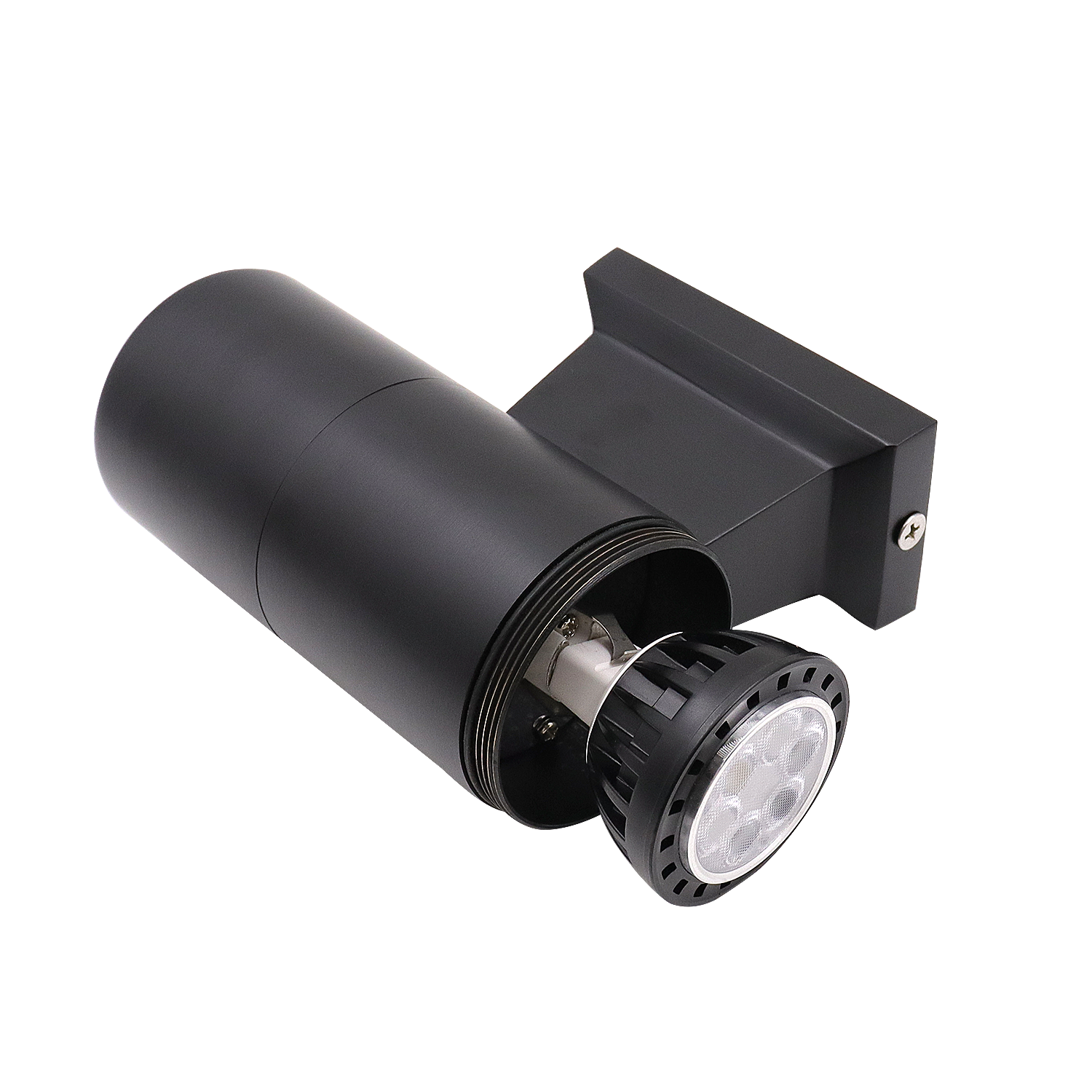

Lighting source	MR16 (sold separately)
Power Supply	LT Tech Low Voltage Transformer (sold separately)
Output Lumens	According to MR16
Color Temperature (CCT)	According to MR16
Color Rendering Index (Ra)	According to MR16
Working Temperature	-45-45℃
Water Proof	IP65
Certifications	ETL
Package Size	7.5″×5.5″×3″
Gross Weight	1.06kg
Warranty	Surface 10 years, Structure Lifetime
Features

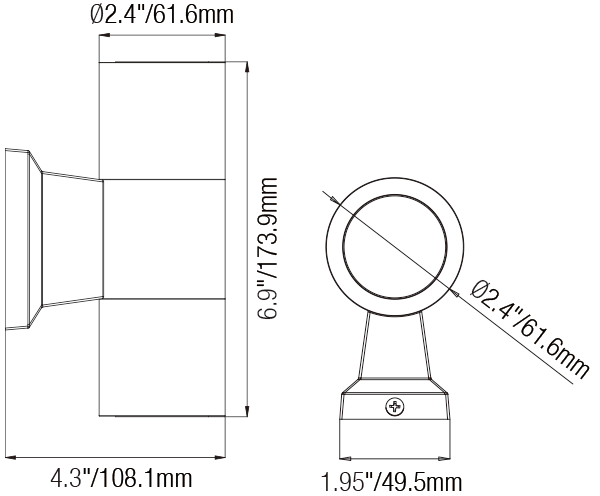

Dimensions

Photometrics

LT405 Wire Connectors

LT407D Digtal Timer

LT2602 specification sheet
