LT1016G Adjustable Beam Angle MR16 LED Lamp

The LT1016G is a high-performance low-voltage MR16 LED lamp designed specifically for landscape lighting applications. Offering 4W, 5W, 6W, and 7W power options, it provides flexible brightness levels to suit various outdoor settings. Its innovative spin lens allows users to easily adjust the beam angle between 20°, 40°, and 60°, delivering precise and customizable light distribution.
The lamp is available in five color temperatures—2700K, 3000K, 4000K, 5000K, and 6000K—to match different ambiance preferences, from warm white to daylight. Compatible with 12V AC/DC systems, the LT1016G combines energy efficiency, reliability, and versatility, making it an ideal choice for both residential and commercial landscape lighting projects.

Mounting / Installation

4W/5W/6W/7W available
Adjustable Beam angle in 20°/40°/60°
Long lifespan
Unique Design

Material

Get a Quote

Specification Accessories Photos Video Download

P/N	LT1016G 4W	LT1016G 5W	LT1016G 6W	LT1016G 7W
Wattage	4W	5W	6W	7W
Lumen	250LM	310LM	360LM	400LM
Halogen Replacement	20W	35W	50W	65W
LED Color Options	Red Green Blue Amber
In put Voltage	9-17V AC/DC
Life Span	50,000 hours
Adjustable Beam Angle	20° 40° 60°
Color Temperature Options	2700K 3000K 4000K 5000K 6000K
CRI	85
Water Proof	IP65
Package Size	2″×2″×2.2″
Gross Weight	0.1 KG
Features	Self-cooling, fully potted electronics
Warranty	5 years

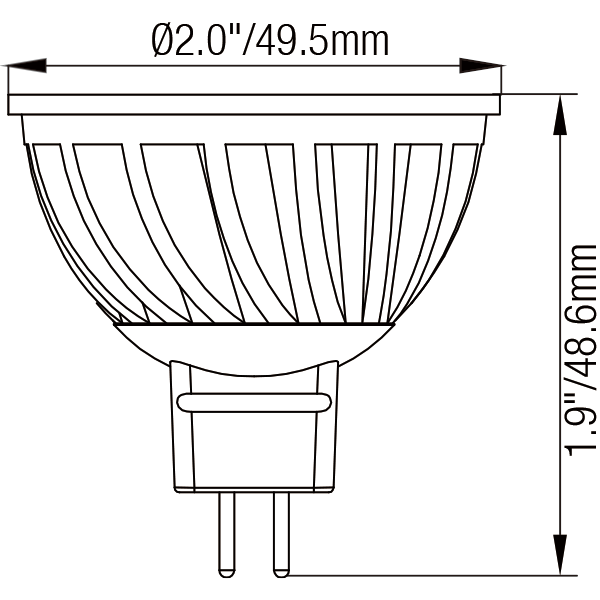

Dimensions

Photometrics

LT403 Hex Louvre

3150-low voltage transformer
